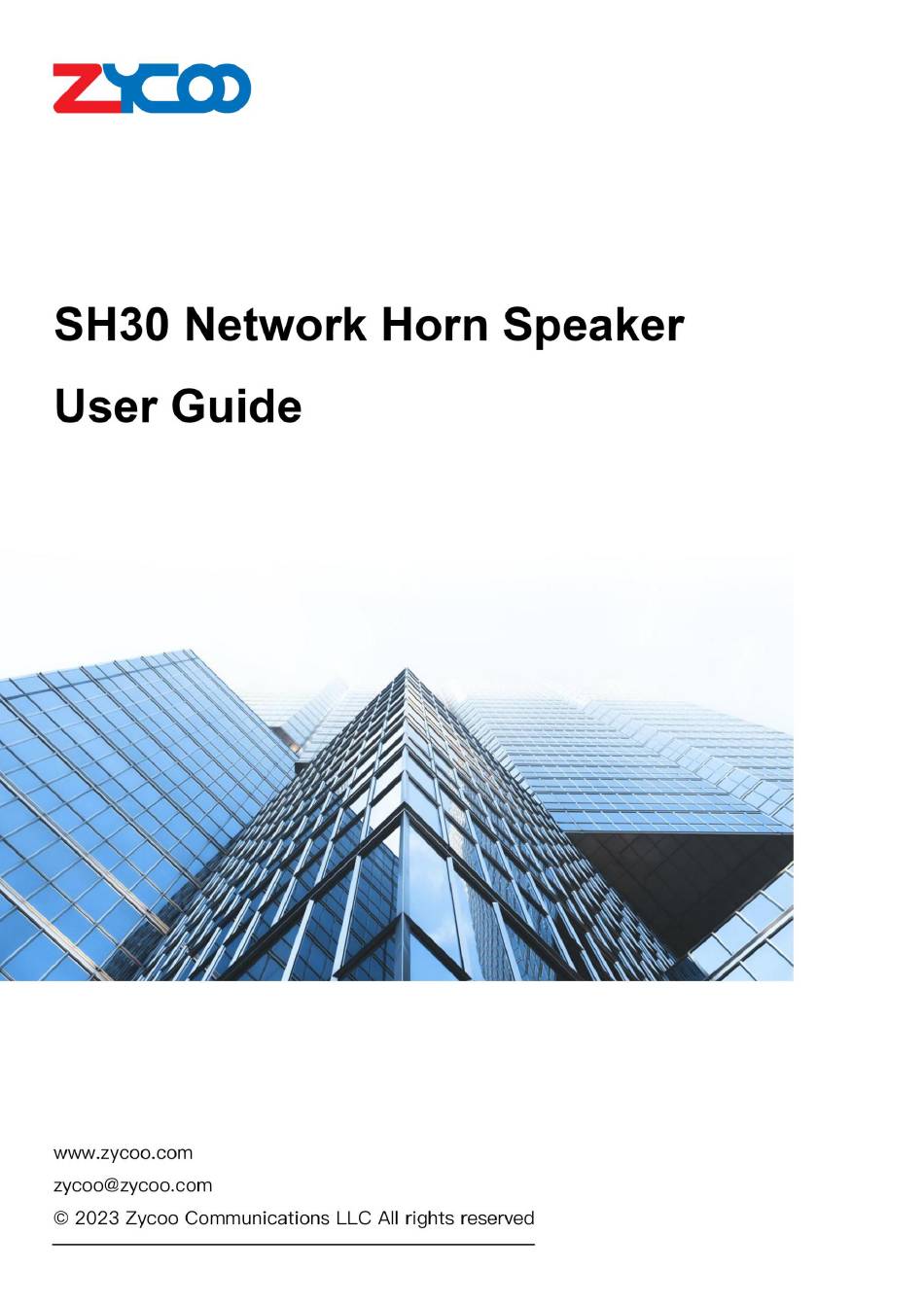

This manual is intended to provide clear operating instructions for those who will configure and manage the SH30 Network Horn Speaker. By carefully reading and consulting this guide, users could solve the setting and deployment issues of the SH30 Network Horn Speaker.

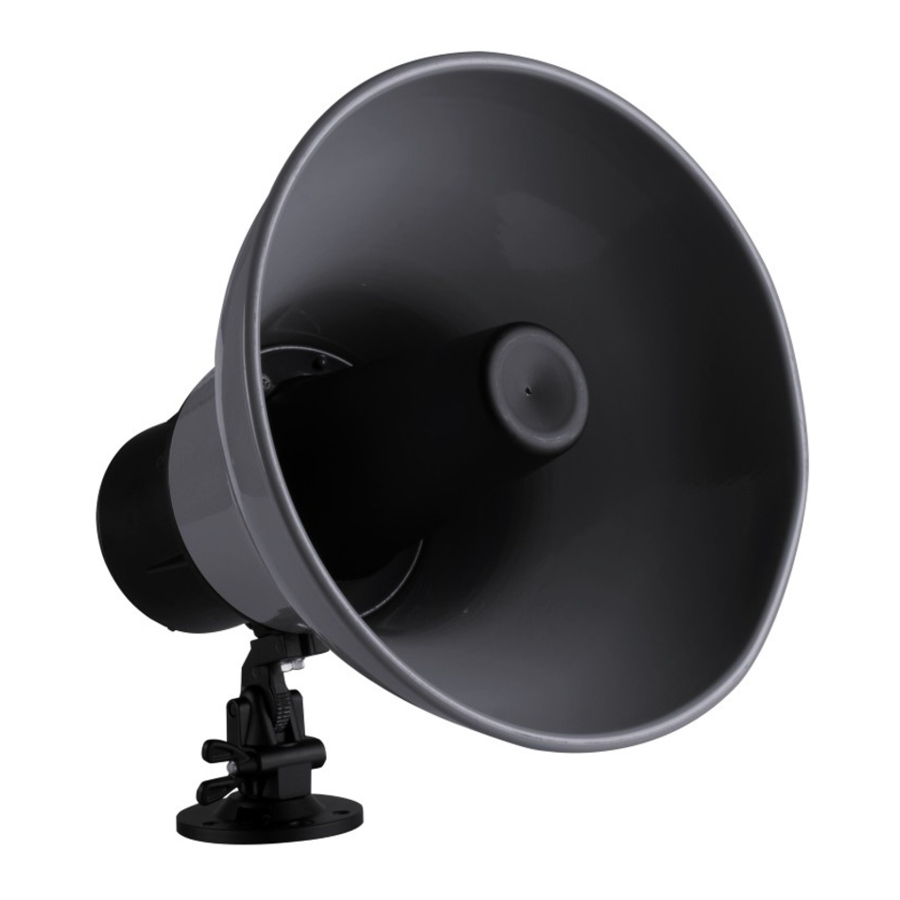

2. Overview 2.1 Product Overview SH30 Network Horn Speaker is a SIP enabled horn speaker which provides exceptionally clear and intelligible voice for SIP paging, notification/tone broadcasting and streamed background music. It is suitable to be deployed in outdoor and other open spaces for public notifications and public safety purposes.
3. Login the Device 3.1 Accessing the Web GUI SH30 obtains the IP address through DHCP by default, please ensure that there is an available DHCP server in your LAN (If DHCP fails to obtain an address, it will use a static IP address: 192.168.1.101), or press and hold the reset button for 5 seconds and then release...
SIP Status SIP Account: Display the SIP number configured on this device. SIP Server: Display the SIP server (Such as ZYCOO IP Audio Center or IP PBX) address. Register Status: Display the SIP number registration status.
Page 8
SH30 Network Horn Speaker User Guide Device Information Device Model: Displays the model of the device. Hardware Version: Displays the hardware version number of the device. Software Version: Display the system version number of the device. Start Time: ...
There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed with various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘Enable Integration with ZYCOO IP Audio Center’ option.
Page 10
SH30 Network Horn Speaker User Guide Secondary SIP 1 Account Secondary SIP 2 Account SIP Server: Enter the IP address or domain name of the SIP server.
STUN, TURN, and ICE modes are supported. Enable Integration with ZYCOO IP Audio Center: This option is disabled by default. If you need to connect and use it with ZYCOO IP Audio Center, please enable this option. Only the main SIP account has this option.
Page 12
SH30 Network Horn Speaker User Guide P2P Account User ID: The User ID will be displayed as the outgoing number when calling out, or the number that another device needs to dial. Auto Answer: Yes/No/Answer Delay, default in the Yes option.
SH30 Network Horn Speaker User Guide 4.3 Audio Codecs SH30 supports 4 audio codecs: G.722 (wideband codec), G.711(Ulaw), G.711(Alaw), and Opus. To enable or disable an audio codec/codecs, please go to SIP Settings --> Audio Codecs page. Audio Codecs Please keep at least one codec enabled and supported by the SIP server, otherwise, SIP paging will not work.
Page 14
SH30 Network Horn Speaker User Guide Advance SIP Settings Local Port: This setting represents the port used to receive SIP packets. RTP Start Port: This setting represents the starting RTP port that will use for media sessions. RTP End Port: This setting represents the end RTP port that the system will use for media sessions.
SH30 Network Horn Speaker User Guide 5. Advanced Settings 5.1 Volume Settings To set the volume of the SH30, please go to Advanced --> Volume page to configure. Volume Settings Speaker Volume: The default speaker volume is 7, adjustable range is 0 ~ 9.
Page 16
SH30 Network Horn Speaker User Guide Call Event URL Callback & Relay Event URL Callback When the call status changes, it will trigger an HTTP GET request to call a URL address. Within the URL address, you may use variables to identify some current information.
SH30 Network Horn Speaker User Guide API Settings Using the API interface to realize features such as device linkage, call control, relay control, and play sound by the systems. Note: Authentication and encryption are not used in the API interface, so please pay attention to the security of the network environment when opening and using these API interfaces.
Page 18
SH30 Network Horn Speaker User Guide Multicast Priority: Priority from highest 9 to lowest 1. Multicast Address: The multicast address range is 224.0.0.0 – 239.255.255.255. Multicast Port: The multicast port range is 2000 – 65535. Name: Customize the name of the multicast address.
SH30 Network Horn Speaker User Guide 5.4 Prompt Language The language of local voice prompts, like IP address announcements. Currently, only Chinese and English are provided. Please go to Advanced ---> Prompt Language page to set a voice prompt language.
Page 20
SH30 Network Horn Speaker User Guide Audio Files...
6. System Settings 6.1 Network SH30 uses DHCP to dynamically obtain IP addresses by default. To change the IP assignment from DHCP to Static IP, please go to System--> Network page. Turn the DHCP switch button off to show the network parameter settings.
Enter an alternative DNS server address, when the primary DNS fails, alternative DNS will be used. 6.2 Time SH30 obtains the time from the network time servers using NTP. To change the NTP settings, please go to System --> Time page. Time Settings ...
SH30 Network Horn Speaker User Guide Web Password Settings Old Password: This setting represents the current user password. New Password: This setting represents the new password user would like to set 6.4 Upgrade To upgrade the device’s firmware, please go to System --> Upgrade page.
10 seconds. After the restart is complete, refresh the page to log in again. If you need to restore the factory settings of the SH30, you can reset it through this page or you can press and hold the RST button for more than 10 seconds and release it. After hearing the broadcast voice, the device will enter the state of restoration.
Page 25
SH30 Network Horn Speaker User Guide Reboot Schedule When the Reboot Schedule feature is Enabled, you can set up the automatic reboot daily, weekly, or monthly at a specified time.
SH30 Network Horn Speaker User Guide 7. Maintenance 7.1 Diagnostic Ping is a network administration utility or tool used to test connectivity on an IP network. Input other devices' IP addresses and click on the submit button to trace the network route.
SH30 Network Horn Speaker User Guide 7.3 Import/Export This page is used to import and export the current configuration of the device, and you may use this configuration file to backup and/or recover. Both YAML and JSON formats are supported.
Page 28
SH30 Network Horn Speaker User Guide Auto Provisioning 7.5 Test The detection feature provides an option for the user to check whether the speaker, microphone and relay will work functionally before registering it to the server. Please go to Maintenance --> Test page to test whether the component is working properly.
