Summary of Contents for Zycoo SC15
-
Page 2: Table Of Contents
Contents Overview ................................1 Product Overview ............................1 Product Specifications ............................ 1 Basic Settings ..............................3 Web Interface Login ............................3 Device Info ..............................4 Network Settings ............................. 5 SIP Account ..............................6 Advanced SIP Settings ............................. 7 Audio Codecs ..............................7 SIP Call Settings ............................. -
Page 3: Overview

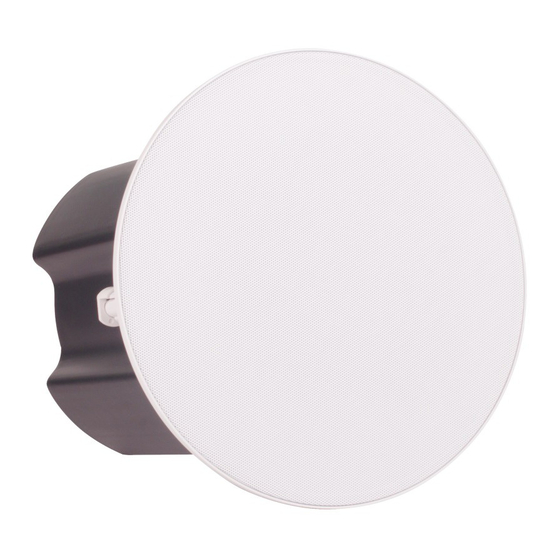

ZYCOO network speakers are SIP enabled high-performance speaker products which can be used for SIP paging, notification/tone broadcast and streaming media music playback. The SC15 network ceiling speaker and SW15 network cabinet speaker are equipped with dual speaker drive units, the high-efficient, full-range speaker drive units can provide uniquely advanced listening experience, which makes the SC15 and SW15 suitable for high quality music, notification/tone broadcasting in the indoor environment. - Page 4 2" midrange driver unit Sensitivity 105dB/1m/1W Max Sound Pressure Level 117dB Amplifier Built-in Class D Amplifier Rated Power: 8Ω 30W Frequency Range: 400Hz~8KHz Coverage Pattern: 50°H 50°V 70m effective distance Acoustics: Mono IP Rating IP65 Network Speaker User Guide | ZYCOO Co., Ltd.
-
Page 5: Basic Settings
IP address. Input the IP address in the browser address bar to open the web management interface of the speaker. The login screen is shown as below image, here we take SC15 network ceiling speaker as an example. Use the default login credentials to login to the web management interface. -
Page 6: Device Info
After login, you’ll first see the Device Info screen. SIP STATUS • SIP Account: The SIP number configured on this device. • SIP Server: The SIP server (ZYCOO IP Audio Center or other IP PBX) address. • Register Status: The SIP number registration status. DEVICE INFORMATION •... -
Page 7: Network Settings
To change the IP assignment from DHCP to Static IP, please go to Settings -> Network Settings page. Turn the DHCP switch button off to show the network parameter settings. Network Configuration Parameters Network Speaker User Guide | ZYCOO Co., Ltd. -
Page 8: Sip Account
Starting RTP Port: The starting local RTP port number. • Enable Integration with ZYCOO IP Audio Center: If the network speaker is registering to ZYCOO IP Audio Center, this parameter needs to be enabled, otherwise do not enable it. •... -
Page 9: Advanced Sip Settings
Auto Answer Delay(S): When Auto Answer is disabled, the SIP calls will be answered with the given number of seconds of delay. • RTP Timeout(S): If no RTP stream has been received within the given number of seconds, the network speaker will terminate the SIP call. Network Speaker User Guide | ZYCOO Co., Ltd. -
Page 10: Advanced System Settings
IP Audio Dispatch Console can override the speaker’s local volume level. I/O Settings I/O settings (available for SC15 and SW15) are used to configure the dry contact relay control options. Please go to the Settings -> I/O Settings page. -
Page 11: Time Settings
If “Hangup”, the dry contact relay output will be triggered when a SIP call (paging) ends on the network speaker. Time Settings The network speakers obtain time from the network time servers using NTP, to change the NTP settings please go to Settings -> Time Settings page. Network Speaker User Guide | ZYCOO Co., Ltd. -
Page 12: Language Settings
NTP server you have configured. Language Settings The language of local voice prompts, like IP address announcements, can be set on Settings -> Language Settings page. Network Speaker User Guide | ZYCOO Co., Ltd. -
Page 13: Upgrade
You’ll first see the current firmware version of the network speaker and the last upgrade time. Upload the .img file provided by ZYCOO to perform the upgrade action. If you wish to reset the network speaker to factory defaults after upgrading, please enable the “Reset Factory Defaults” parameter. - Page 14 @ 2020 Zycoo Co., Ltd. All rights reserved. www.zycoo.com ZYCOO, NEEQ Code 839487, is the leading developer and manufacturer of IP telephony devices and related systems, devoting itself over the past years to R&D powerful and scalable voice over IP (VoIP) solutions that...
