  • Page 2: Table Of Contents

    Contents 1. Preface ........................1 1.1 Audience ......................1 1.2 Revision History ....................1 2. Overview ........................2 2.1 Product Overview ....................2 2.2 Product Specifications ..................2 3. Login the Device ....................3 3.1 Accessing the Web GUI ..................3 3.2 Device Info ......................4 4.
  • Page 3 7.4 Auto Provisioning .................... 27 7.5 Test ......................... 28...

  • Page 4: Preface

    This manual is intended to provide clear operating instructions for those who will configure and manage the SC15 Network Ceiling Speaker. By carefully reading and consulting this guide, users could solve the setting and deployment issues of the SC15 Network Ceiling Speaker.

  • Page 5: Overview

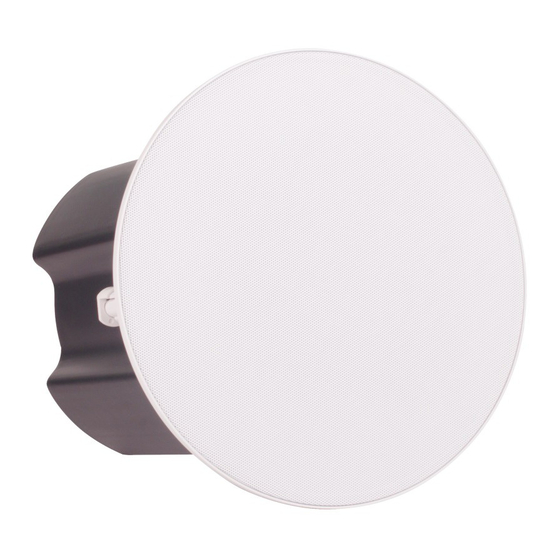

    2. Overview 2.1 Product Overview SC15 Network Ceiling Speaker is a compact high-performance SIP enabled ceiling speaker which can be used for SIP paging, notification/tone broadcasting and streamed high definition music playback. The high efficient, full-range drive units will provide you with a uniquely advanced listening experience.

  • Page 6: Login The Device

    3. Login the Device 3.1 Accessing the Web GUI SC15 obtains the IP address through DHCP by default, please ensure that there is an available DHCP server in your LAN (If DHCP fails to obtain an address, it will use a static IP address: 192.168.1.101), or press and hold the reset button for 5 seconds and then release...

  • Page 7: Device Info

    SIP Status  SIP Account: Display the SIP number configured on this device.  SIP Server: Display the SIP server (Such as ZYCOO IP Audio Center or IP PBX) address.  Register Status: Display the SIP number registration status.
  • Page 8 SC15 Network Ceiling Speaker User Guide Device Information Device Model:  Displays the model of the device. Hardware Version:  Displays the hardware version number of the device.  Software Version: Display the system version number of the device. ...

  • Page 9: Sip Settings

    There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed with various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘Enable Integration with ZYCOO IP Audio Center’ option.
  • Page 10 SC15 Network Ceiling Speaker User Guide Secondary SIP 1 Account Secondary SIP 2 Account  SIP Server: Enter the IP address or domain name of the SIP server.

  • Page 11: P2P Account Settings

    STUN, TURN, and ICE modes are supported.  Enable Integration with ZYCOO IP Audio Center: This option is disabled by default. If you need to connect and use it with ZYCOO IP Audio Center, please enable this option. Only the main SIP account has this option.
  • Page 12 SC15 Network Ceiling Speaker User Guide P2P Account  User ID: The User ID will be displayed as the outgoing number when calling out, or the number that another device needs to dial.  Auto Answer: Yes/No/Answer Delay, default in the Yes option.

  • Page 13: Audio Codecs

    SC15 Network Ceiling Speaker User Guide 4.3 Audio Codecs SC15 supports 4 audio codecs: G.722 (wideband codec), G.711(Ulaw), G.711(Alaw), and Opus. To enable or disable an audio codec/codecs, please go to SIP Settings --> Audio Codecs page. Audio Codecs Please keep at least one codec enabled and supported by the SIP server, otherwise, SIP paging will not work.
  • Page 14 SC15 Network Ceiling Speaker User Guide Advance SIP Settings  Local Port: This setting represents the port used to receive SIP packets.  RTP Start Port: This setting represents the starting RTP port that will use for media sessions.  RTP End Port: This setting represents the end RTP port that the system will use for media sessions.

  • Page 15: Basic Settings

    SC15 Network Ceiling Speaker User Guide 5. Advanced Settings 5.1 Volume Settings To set the volume of the SC15, please go to Advanced Settings --> Volume page to configure. Volume Settings Speaker Volume:  The default speaker volume is 7, adjustable range is 0 ~ 9.

  • Page 16: I/O Settings

    SC15 Network Ceiling Speaker User Guide  Music Auto Resumes: When the device restarts or reconnects to the network, the previous music tasks will be automatically restored.  Play IP on Startup: When the device starts, it automatically broadcasts its IP address once.
  • Page 17 SC15 Network Ceiling Speaker User Guide Key Action: Choose different event linkage including Outgoing Call, HTTP  Request and Play Audio. Destination: This setting represents the response device’s number when the  external button is pressed. Line: This setting represents the corresponding line for making ...
  • Page 18 SC15 Network Ceiling Speaker User Guide will trigger the relay when there is broadcast music on.  Broadcast Alarm Trigger: Disabled/On/Fast Flashing/Slow Flashing, enable this option will trigger the relay when there is a broadcast alarm on.  Trigger by DTMF Signal: Enable/Disable, enable this option when need to use DTMF signal to trigger (only RF2833 supported).

  • Page 19: Api Settings

    SC15 Network Ceiling Speaker User Guide 5.3 API Settings This page is used to configure the API interface of the device. Through the API interface, you can realize device linkage, call control, relay control, and play sound by using the changing status of the call and/or relay.

  • Page 20: Multicast

    SC15 Network Ceiling Speaker User Guide ${ip}: The current IP address of the device ${mac}: The current MAC address of the device API Settings Using the API interface to realize features such as device linkage, call control, relay control, and play sound by the systems.
  • Page 21 SC15 Network Ceiling Speaker User Guide Multicast  Priority: Priority from highest 9 to lowest 1.  Multicast Address: The multicast address range is 224.0.0.0 – 239.255.255.255.  Multicast Port: The multicast port range is 2000 – 65535.  Name: Customize the name of the multicast address.

  • Page 22: Prompt Language

    SC15 Network Ceiling Speaker User Guide 5.5 Prompt Language The language of local voice prompts, like IP address announcements. Currently, only Chinese and English are provided. Please go to Advanced Settings ---> Prompt Language page to set a voice prompt language.
  • Page 23 SC15 Network Ceiling Speaker User Guide Audio Files...

  • Page 24: System Settings

    6. System Settings 6.1 Network SC15 uses DHCP to dynamically obtain IP addresses by default. To change the IP assignment from DHCP to Static IP, please go to System--> Network page. Turn the DHCP switch button off to show the network parameter settings.

  • Page 25: Time

    Enter an alternative DNS server address, when the primary DNS fails, alternative DNS will be used. 6.2 Time SC15 obtains the time from the network time servers using NTP. To change the NTP settings, please go to System --> Time page. Time Settings ...

  • Page 26: Upgrade

    SC15 Network Ceiling Speaker User Guide Web Password Settings  Old Password: This setting represents the current user password.  New Password: This setting represents the new password user would like to set 6.4 Upgrade To upgrade the device’s firmware, please go to System --> Upgrade page.

  • Page 27: Reboot & Reset

    10 seconds. After the restart is complete, refresh the page to log in again. If you need to restore the factory settings of the SC15, you can reset it through this page or you can press and hold the RST button for more than 10 seconds and release it. After hearing the broadcast voice, the device will enter the state of restoration.
  • Page 28 SC15 Network Ceiling Speaker User Guide Reboot Schedule When the Reboot Schedule feature is Enabled, you can set up the automatic reboot daily, weekly, or monthly at a specified time.

  • Page 29: Maintenance

    SC15 Network Ceiling Speaker User Guide 7. Maintenance 7.1 Diagnostic Ping is a network administration utility or tool used to test connectivity on an IP network. Input other devices' IP addresses and click on the submit button to trace the network route.

  • Page 30: Import/Export

    SC15 Network Ceiling Speaker User Guide 7.3 Import/Export This page is used to import and export the current configuration of the device, and you may use this configuration file to backup and/or recover. Both YAML and JSON formats are supported.
  • Page 31 SC15 Network Ceiling Speaker User Guide Auto Provisioning 7.5 Test The detection feature provides an option for the user to check whether the speaker, microphone and relay will work functionally before registering it to the server. Please go to Maintenance --> Test page to test whether the component is working properly.
  • Page 32 SC15 Network Ceiling Speaker User Guide Test Settings Speaker Test:  Click on the Start Test button, and the speaker will play a ringtone to test whether the speaker is working. If the speaker is working functionally, you should hear the voice back.
