    Contents Overview....................................1 Product Overview................................1 Product Specifications..............................1 Basic Settings..................................3 Web Interface Login............................... 3 Device Info..................................4 SIP Account..................................5 P2P Account..................................7 Audio Codecs...................................8 SIP Advance Settings..............................9 Advanced Settings................................11 Volume Control................................11 I/O Settings..................................11 Multicast Settings.................................13 Language Settings................................ 13 Settings....................................14 Network Setting................................14 Time Settings.................................

  • Page 4: Overview

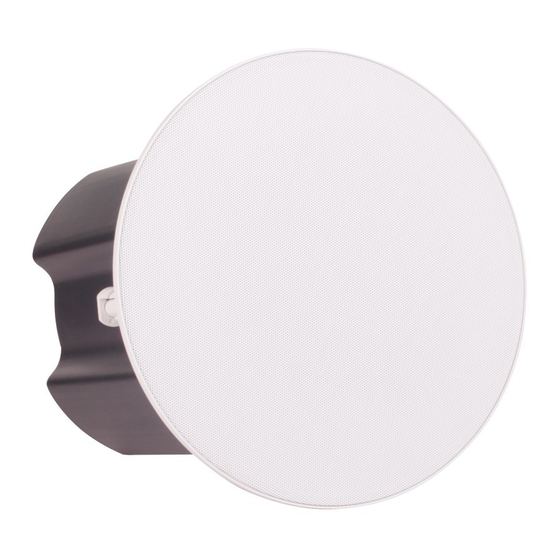

    ZYCOO network speakers are SIP enabled high-performance speaker products which can be used for SIP paging, notification/tone broadcast and streaming media music playback. The SC15 network ceiling speaker and SW15 network cabinet speaker are equipped with dual speaker drive units, the high-efficient, full-range speaker drive units can provide uniquely advanced listening experience, which makes the SC15 and SW15 suitable for high quality music, notification/tone broadcasting in the indoor environment.
  • Page 5 2" midrange driver unit Sensitivity 105dB/1m/1W Max Sound Pressure Level 117dB Amplifier Built-in Class D Amplifier Rated Power: 8Ω 30W Frequency Range: 400Hz~8KHz Coverage Pattern: 50°H 50°V 70m effective distance Acoustics: Mono IP Rating IP65 Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 6: Basic Settings

    IP address. Input the IP address in the browser address bar to open the web management interface of the speaker. The login screen is shown as below image, here we take SC15 network ceiling speaker as an example. Use the default login credentials to login to the web management interface.

  • Page 7: Device Info

    After login, you’ll first see the Device Info screen. SIP STATUS SIP Account: The SIP number configured on this device.  SIP Server: The SIP server (ZYCOO IP Audio Center or other IP PBX) address.  Register Status: The SIP number registration status. ...

  • Page 8: Sip Account

    There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘ZYCOO IP Audio Center’ option.
  • Page 9 Secondary SIP 1 Account Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 10: P2P Account

    P2P stands for Peer to Peer. In a P2P network, the peers are connected to each other via the Internet, files can share, or peers can call each other directly between systems on the network without the need of a central server. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 11: Audio Codecs

    To enabled or disable an audio codec/codecs, please go to SIP Settings -> Audio Codecs page. Please keep at least one codec enabled and is supported by the SIP server, otherwise SIP paging will not work. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 12: Sip Advance Settings

    This setting represents the end RTP port that the system will use for media sessions.  RTP Timeout (sec): This setting represents in a specific time range, if the system doesn’t receive the RTP  stream, then the call will end. Network Speaker User Guide | ZYCOO Co., Ltd.
  • Page 13 In this way, when the master phone is ringing, the speaker can play the prompt ringtone at the same time (also, it can achieve linkage with light when cooperating with the configuration of output interface). Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 14: Advanced Settings

    I/O Settings I/O settings (available for SC15 and SW15) are used to configure the dry contact relay control options. Please go to the Settings -> I/O Settings page. Network Speaker User Guide | ZYCOO Co., Ltd.
  • Page 15 Reset’ and ‘Hang-up Reset’ options to choose from. Duration (sec): This setting is only available if reply control mode is on Delay Reset, it represents the  time duration when the configure interface status changed. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 16: Multicast Settings

    Options to choose from are ‘Disabled’, ‘On’, ‘Fast Flashing’, ‘Slow Flashing’  Language Settings The language of local voice prompts, like IP address announcements, can be set on Settings -> Language Settings page. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 17: Settings

    Alternative DNS: Enter an alternative DNS server address, when the primary DNS fails, alternative DNS  will be used. Time Settings The network speakers obtain time from the network time servers using NTP, to change the NTP settings please go to Settings -> Time Settings page. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 18: Upgrade

    You’ll first see the current firmware version of the network speaker and the last upgrade time. Upload the .img file provided by ZYCOO to perform the upgrade action. If you wish to reset the network speaker to factory defaults after upgrading, please enable the “Reset Factory Defaults” parameter.

  • Page 19: Reboot & Reset

    Press and hold the RST button for 10 seconds (5 seconds for IP address announcements) and release, now you should hear voice prompts “Resetting factory defaults, rebooting…”, it means the speaker will now reset. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 20: Maintenance

    Ethernet Capture The purpose of the Ethernet capture tool is to capture ethernet network packets and store then in a standard Wireshard compatible packet capture “.pacp” file for immediate viewing and data analyzing. Network Speaker User Guide | ZYCOO Co., Ltd.
  • Page 21 @ 2020 Zycoo Co., Ltd. All rights reserved. www.zycoo.com ZYCOO, NEEQ Code 839487, is the leading developer and manufacturer of IP telephony devices and related systems, devoting itself over the past years to R&D powerful and scalable voice over IP (VoIP) solutions that...
