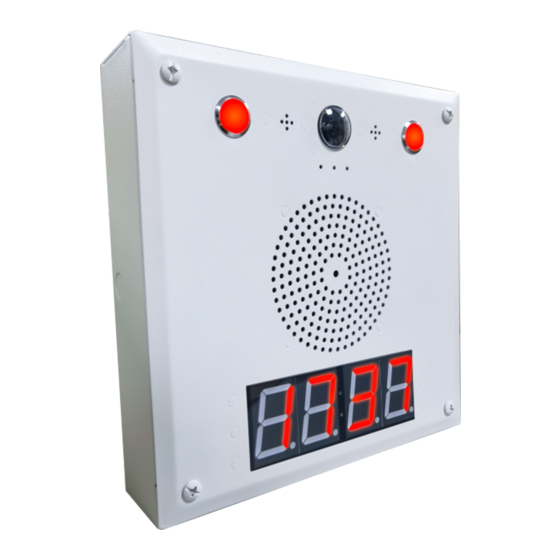

SQ10 Network Square Speaker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SQ10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zycoo SQ10

Summary of Contents for Zycoo SQ10

  • Page 1 SQ10 Network Square Speaker...

  • Page 2: Table Of Contents

    Contents Overview ........................... 1 1.1 Product Overview ......................1 1.2 Product Specifications ....................1 Basic Settings ......................... 2 2.1 Web Interface Login ..................... 2 2.2 Device Info ........................3 2.3 SIP Account ......................... 4 2.4 P2P Account ........................ 6 2.5 Audio Codecs ....................... 7 2.6 Advance SIP Settings ....................

  • Page 3: Overview

    IP cameras are RTSP-supported. Note: The video linkage feature needs to be used with the IP Audio Solution). SQ10 is PoE supported, making it easy to connect into local area networks from your PoE switch with a CAT 5/6 cable. No external power supply or other additional wiring is required.

  • Page 4: Basic Settings

    By default, the SQ10 speaker’s IP assignment has been configured as DHCP. Please ensure there’s a DHCP server available in the LAN where the SQ10 speakers are installed. If there’s no DHCP server available or DHCP fails, you’ll have to use the default static IP address 192.168.1.101 to access the web management interface. Press and hold the call button for 3 seconds then release on the device’s front panel, the device will announce its IP address.

  • Page 5: Device Info

    The device description will be used to display as the tab name of the web browser. This is useful when configuring multiple devices using the same web browser. Click on the button to edit. IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 6: Sip Account

    There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘ZYCOO IP Audio Center’...
  • Page 7 Secondary SIP 1 Account Secondary SIP 2 Account IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 8: P2P Account

    When the auto Answer is in Answer Delay, you may set up the time of ring tone to Ÿ play before the call is answered. Activate: Enable/Disable the P2P feature. Ÿ IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 9: Audio Codecs

    This setting represents the end RTP port that the system will use for media sessions. Ÿ RTP Timeout (sec): This setting represents in a specific time range, if the system doesn’t receive the RTP stream, Ÿ then the call will end. IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 10: Video

    Set the maximum transmission unit of video stream packets in the network. Ÿ Effect Controls: Standard: Resolution 1280*720, Frame rate 25fps, Bit rate 1536Kbps. Ÿ Normal: Resolution 704*576, Frame rate 25fps, Bit rate 768Kbps. IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 11: Advanced Settings

    Settings page. For Press-to-Talk, when the speaker is connected with external press-button(s), calls to a predetermined extension or trigger a task can be initiated from the room with the speaker. IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.
  • Page 12 There are five options of call status, respectively are Ÿ Outgoing/Incoming/Outgoing&Incoming/Answered/Hang-up. Relay Status: Choose the relay output as On/Fast Flashing/ Slow Flashing. Ÿ Relay Reset: Choose the relay to be reset when the call is Delay/Answered/Hang-up. Ÿ IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 13: Api Settings

    This page is used to configure the API interface of the device. Through the API interface, you can realize devices linkage, call control, relay control, and play sound by using the change status of call and/or relay. Advanced/API Settings Path: IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.
  • Page 14 (Note: Authentication and encryption are not used in the API interface, so please pay attention the security of the network environment when opening and using these API interfaces). IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 15: Multicast Settings

    Options to choose from are Disable/On/Flash Simultaneously/Flash Alternately. Ÿ 3.5 Language Settings The language of local voice prompts, like IP address announcements, can be set on Settings -> Prompt Language page. IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 16: Settings

    Audio Center or other SIP server is installed outside the LAN. Primary DNS: Enter an effective primary DNS server address. Ÿ Alternative DNS: Enter an alternative DNS server address, when the primary DNS fails, alternative DNS will be Ÿ used. IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 17: Time Settings

    NTP server you have configured. 4.3 Upgrade To upgrade the network speaker’s firmware, please go to Settings -> Upgrade page. IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 18: Reboot & Reset

    You’ll first see the current firmware version of the network speaker and the last upgrade time. Upload the .img file provided by ZYCOO to perform the upgrade action. If you wish to reset the network speaker to factory defaults after upgrading, please enable the “Reset Factory Defaults” parameter.

  • Page 19: Maintenance

    The purpose of the Ethernet capture tool is to capture ethernet network packets and store them in a standard Wireshark compatible packet capture ‘.pacp’ file for immediate viewing and data analyzing. IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 20: Import/Export

    Static Provisioning Server data to directly obtain the configuration file. The configuration file name's format rules: 1) All letters in the server MAC address need to be uppercase. 2) All colons ":" need to be removed. For example, 68692E290012. IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.

  • Page 21: Audio Detection

    Click on the Start button, the speaker will play a ringtone to test whether the speaker is working. Microphone Loop Detection: Click on the Start button, then start speaking to the device. If the speaker is working functionally, you should hear the voice back. IP Audio Dispatch APP User Guide | ZYCOO Co., Ltd.
  • Page 22 @ 2020 Zycoo Co., Ltd. All rights reserved. www.zycoo.com ZYCOO, NEEQ Code 839487, is the leading developer and manufacturer of IP telephony devices and related systems, devoting itself over the past years to R&D powerful and scalable voice over IP (VoIP) solutions that...

This manual is also suitable for:

Sq10 seriesSq10-cSq10-cfSq10-tSq10-tfSq10-v ... Show all
