Gripping Ranges; Adjustment Of The Height Adjustable Support (Accessory) - probst FTZ-UNI-15 Operating Instructions Manual

Adjustments
5.3

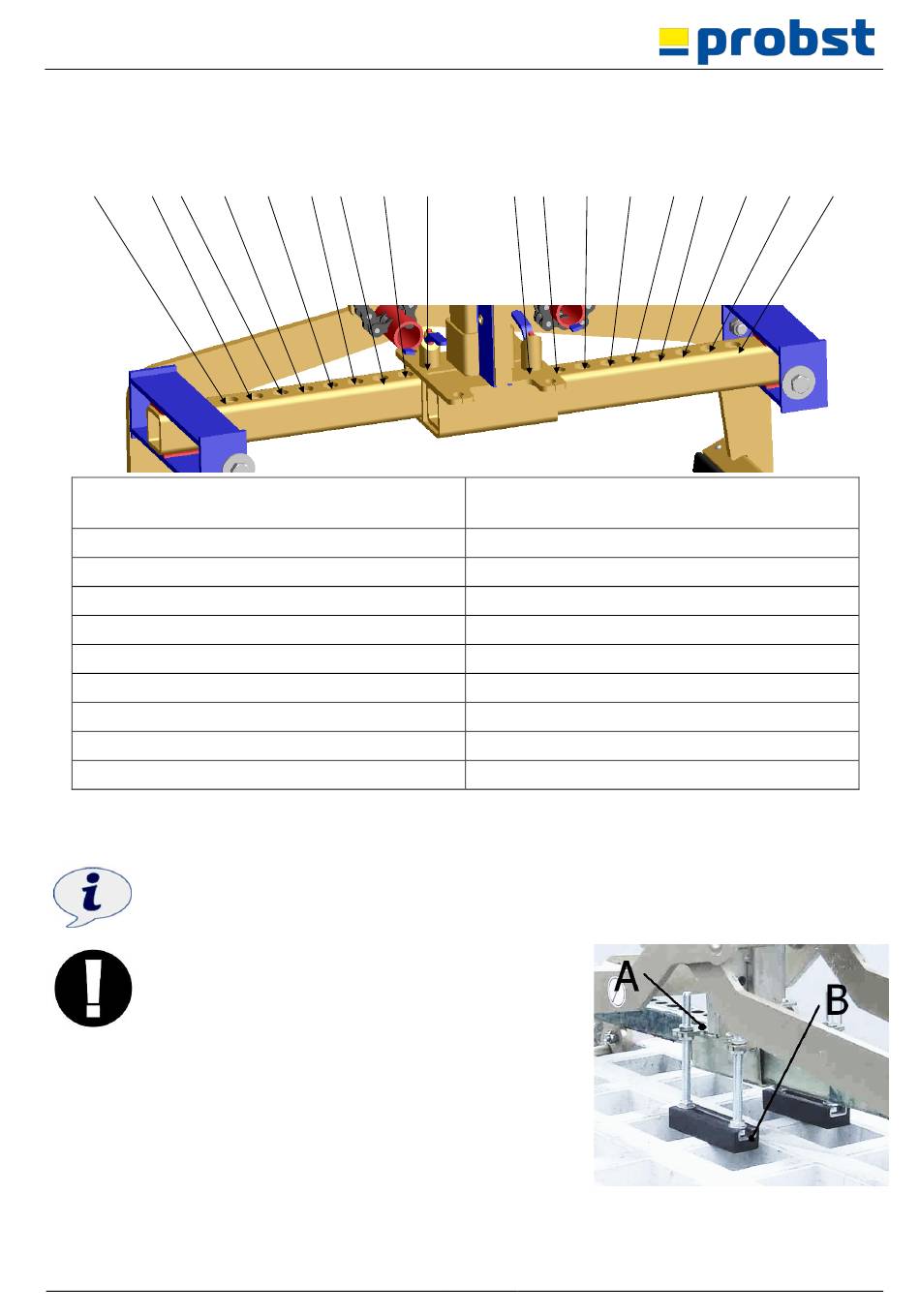

Gripping ranges

1 2 3 4
Adjustment of the gripping area through the
positions of the adjustable holes (symmetrical):
Pos.1 + Pos.1
(right) (left)
Pos.2 + Pos.2
(right) (left)
Pos.3 + Pos.3
(right) (left)
Pos.4 + Pos.4
(right) (left)
Pos.5 + Pos.5
(right) (left)
Pos.6 + Pos.6
(right) (left)
Pos.7 + Pos.7
(right) (left)
Pos.8 + Pos.8
(right) (left)
Pos.9 + Pos.9
(right) (left)
5.4

Adjustment of the height adjustable support (accessory)

When using the device in batch operation, for gripping of single stone slabs (batched one upon the
other), we advise to use the accessory "height adjustable support" HVA-FTZ/TSZ (see figure).
Therefore, the inside height must not always be adjusted again for gripping goods with the same
dimensions.
When picking up in batch operation the top stone slab
may only be lifted!
•
The height adjustable support (B) is attached to the
mounting plate (A)
•
Adjust the height adjustable support (B) with the
adjusting screws and make sure that both parts have
the same height and that the rubber gripper bars are
positioned in the middle area of stone thickness.
53100256
5 6 7 8 9 9 8 7 6
Possible gripping areas for gripping goods
(product dimension):
from ~ 0 to
from ~ 80 to
from ~ 160 to
from ~ 270 to
from ~ 350 to
from ~ 430 to
from ~ 500 to
from ~ 570 to
from ~ 640 to
15 / 21
5 4 3 2
~ 80 mm
~ 160 mm
~ 270 mm
~ 350 mm
~ 430 mm
~ 500 mm
~ 570 mm
~ 640 mm
~ 730 mm
