Rocstor Y10C264-B1 User Manual

User Manual
HDMI to VGA Video and Audio Cable Adapter
3.5mm Audio and USB
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
Rocstor introduces the HDMI to VGA + 3.5mm audio cable with a micro USB port for
power. This adapter converts digital HDMI signals from devices like PlayStation or
Blu-ray players into analog VGA video and R/L audio signals. It enables users to enjoy
high-de nition images and sound on traditional VGA monitors or projectors when
watching movies or playing games.
This adapter provides solutions for digital entertainment centers, HDTV retail and
show sites, HDTV, STB, DVD and projector factories, noise-sensitive areas, security
concerns, data center control, information distribution, conference room presenta-
tions, and educational or corporate training environments.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the packaging:
• Main Unit x1
• User Manual

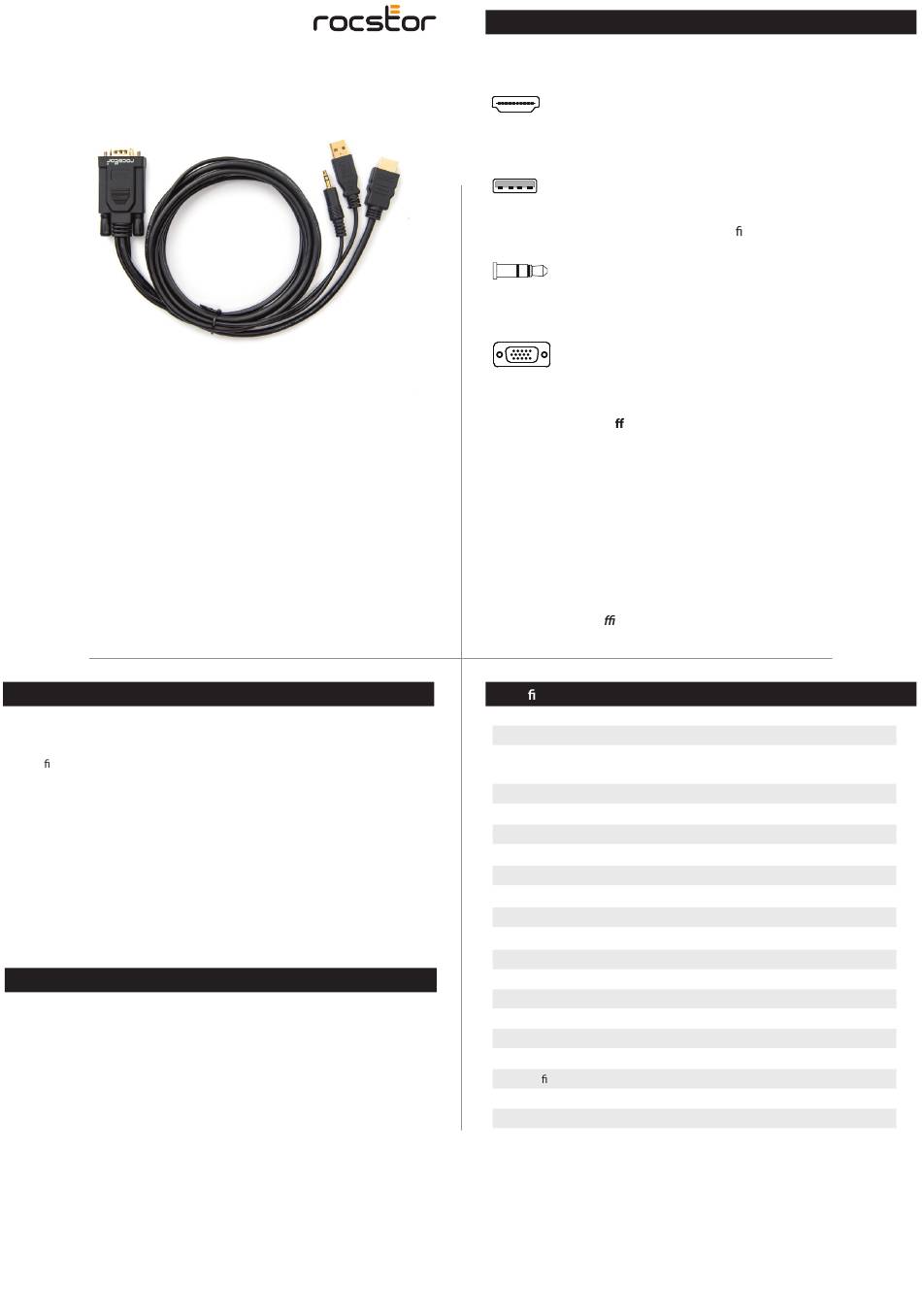

Y10C264-B1
®
Features
HDMI (Male): Connect to HDMI sources, such as a DVD player
or PC.
USB-A (Male): Connect to a host or power adapter to supply
power to the adapter.
3.5mm Audio (Male): Connect to an ampli er or receiver to
enjoy audio from HDMI sources.
VGA (Male): Connect to a display to view video from HDMI
sources.
Features
This HDMI adapter o ers several features that ensure superior
performance, including:
• Supports HDMI and USB input, VGA and R/L audio output.
• Supports HDMI resolution up to 1080p@60Hz and VGA
resolution up to 1080p@60Hz.
• Converts complete HDMI signals into VGA video output.
• Supports 165MHz/1.65Gbps per channel (4.95Gbps total)
bandwidth for HDMI input.
Note: If the HDMI source provides less than 1W of power, an external
power supply is required. Otherwise, the product may not function
properly due to insu cient power.
Speci cation
Input / Output Connector
Input
Output
Resolutions
Operating Temperature HDMI Resolution
VGA Resolution
Warranty
Limited Warranty
Power Requirement
External Power Supply
Environmental
Operating Temperature Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Accessory Adapter
User Manual
HDMI A female
Micro USB female(supply power)
VGA, 3.5mm audio
Up to 1080P@60HZ 0°C to 45°C (32°F to 113°F)
Up to 1080P@60HZ
2Years
USB Type-A
0°C to 45°C (32°F to 113°F)
10% to 90% RH (no condensation)
-10°C to 70°C (14°F to 158°F)
10% to 90 % RH (no condensation)
FCC, CE
English Version
