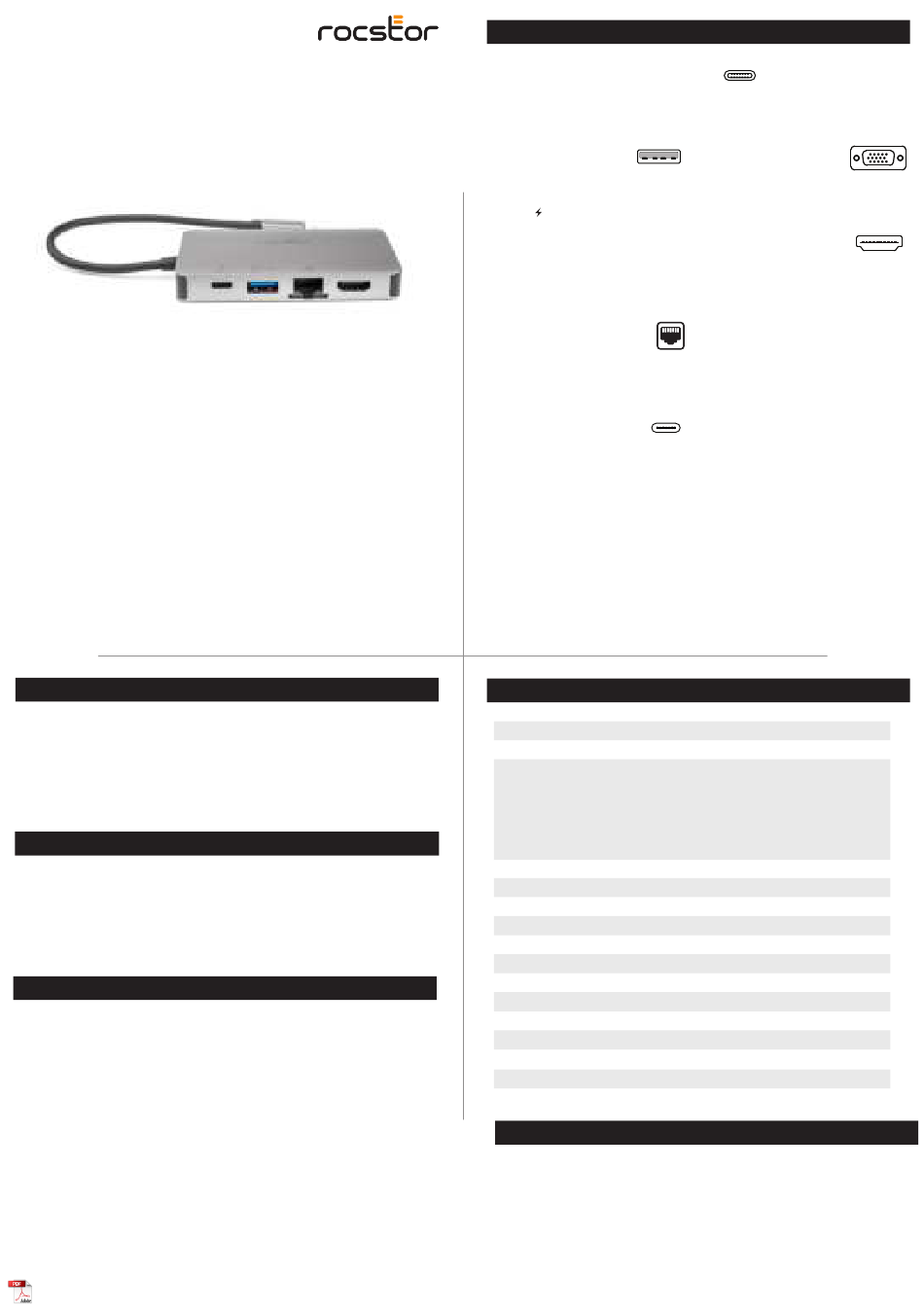

Rocstor Y10A249-A1 User Manual

User Manual
USB Type-C® Multiport Adapter - PD Charging -
HDMI® 4K@30Hz - VGA - USB®3.0 - USB-C® Gen 1 PD
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.

Introduction

This is a premium Rocstor USB-C to two(2) USB 3.0, HDMI, RJ34, VGA, Type-C Data and
PD Charging Adapter. The USB 3.0 port allows you to connect USB device or another
hub to the host USB-C computer, the USB-C female port supports both PD Charging
and data; the Gigabit Ethernet port allows the host computer to get access to the
network; the HDMI and VGA ports allow you to enjoy high definition picture or video
on big screen. It can work on a Macbook or the new Google Chromebook Pixel and
other USB-C supported devices.

Package Contents

Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• 1 x Main Unit
• User Manual

How to Use

1 • Connect the USB-C male port of this product to Macbook or Chromebook or other
USB-C host.
2 • Connect the two USB 3.0 outputs of this product to two USB 3.0/2.0 devices.
3 • Connect HDMI output of this product to HDTV with one HDMI cable.
4 • Connect VGA port of this product to a VGA monitor.
5 • Connect Gigabit Ethernet port of this product to Ethernet Router with an Ethernet
cable.
6 • Automatically or manually set the IP address of the computer.
7 • Connect the USB-C charging port, it can charge from the host computer and
support power for this product simultaneously.
Y10A249-A1
®

Features

Upstream:
USB Type-C Male (Connect to host computer)
• Supports DP1.2 Alt mode
Note: To get max bandwidth, the host computer should support DP1.2 Alt mode.
Downstream:
USB-A X2
• Max 5Gbps data transmission per port
• USB 3.0 (Port1) Supports max 7.5W
(5V/1.5A ) downstream charging port.
• USB 3.0 (Port2) supports max 900mA
downstream charging.
• 2 USB-A share max 2.8A output
• USB 3.0 port supports to charge and
transmit data for the USB device
simultaneously
RJ45 x1
• Supports 10/100/1000Mbps bandwidth
for RJ45 port and supports to work with
Nintendo Switch
Type-C (for PD Charging)
• Type-C female port supports both data
(5Gbps) and PD Charging 100W
(20V/5A)
FEATURES
• 15W is dedicated to this product.
• Multiple USB-C interfaces support plug
and play, hot swapable.
• Support Fast Role Swap of PD 3.0, the
connected device will not get
disconnected while plugging in and
out PD Adapter.
Specification

Input / Output Connector

Input
Output

Warranty

Limited Warranty

Environmental

Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity

Regulatory Approvals

Certifications

Power Supply

USB-C Female Port

Accessories

User Manual

System Requirement

Host computer with an available USB-C Port
- USB 3.0/3.1/3.2
Operating systems
- Windows 7 / 8 / 10 / 11
- Android OS
- Chrome OS
- Linux OS
- Mac OS v10.5 or above
VGA
• Supports VGA resolution up to
1920x1200@60Hz
HDMI
• Supports HDMI resolution up to
4Kx2K@30Hz
Supports HDMI and VGA to display
Note:
the same image simultaneously for
1080p/60Hz
Note: Only RJ45 port supports Nintendo
Switch, other ports don't support
Nintendo Switch.
USB Type-C Male x1
USB 3.0 Female x2
USB-C Female x1
(for data and Charging)
RJ45 X1
HDMI Female x1
VGA Female x1
2 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
Up to 100W (20V/5A)
English Version
