Rocstor Y10A263-B1 User Manual

User Manual
USB-C® Multiport Adapter - USB-C® Dock with HDMI® 4K 30Hz,
VGA, 3x USB 3.0, GbE, SD & MicroSD, USB-C® 100W PD - Black
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction

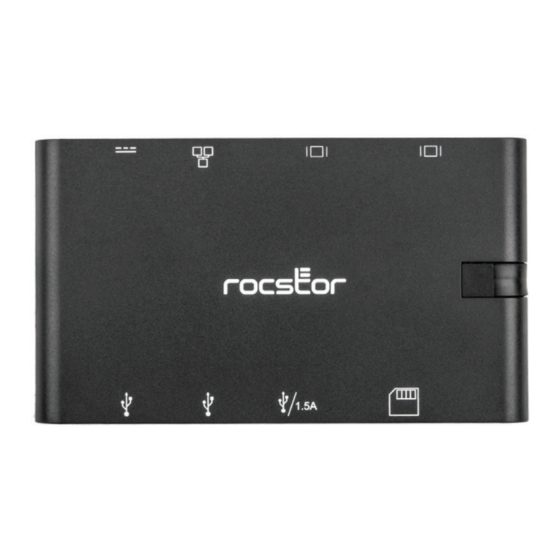

This is a premium Rocstor multi-functional Type-C docking. It o ers an integrated
solution for data, video, power and Ethernet. It has one(1) Type-C male port that will
connect to the host computer, two(2) Type-C female ports for data and PD charging,
two(2) USB-A female ports for enjoying high de nition pictures or video on big
screens, one (1) SD/Micro SD slot and one(1) RJ45 port for Gigabit Ethernet. This
Rocstor multiport adapter is portable and can be taken for business meetings or your
travels.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
System Requirement
Host computer with an available USB-C Port
- USB 3.0/3.1/3.2
Operating systems
- Windows 7 / 8 / 10 / 11
- Android OS
- Chrome OS
- Linux OS
- Mac OS v10.5 or above
Y10A263-B1
®
Features
Upstream:
USB Type-C Male (Connect to host computer)
• Supports DP1.2 Alt mode
Note: To get max bandwidth, the host computer should support DP1.2 Alt mode.
Downstream:
HDMI x1
• Supports max 4K@30Hz
USB-A x2
• Max 5Gbps data transmission per port
• USB 3.0 (Port1) Supports max
(5V/1.5A ) downstream charging port.
• USB 3.0 (Port2) supports max 900mA
downstream charging.
Type-C x2
(for Data & PD Charging)
• Type-C charging port supports PD
charging max 100W (20V/5A).
• Type-C data port supports max 5Gbps
data transmission and max 1.5A
downstream charging port.
Features:
• Supports fast role swap of PD 3.0. The connected devices will not get
disconnected when plugging and unplugging the multiport adapter.
• Reversible plug for Type-C ports.
• Portable
Note:
• 2 USB-A and Type-C data port share max 10W(5V/2A) downstream charging.
• Allow one video port to work at one time (Priority: HDMI>VGA).
Speci cation
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Power Supply
USB-C Female Port
Mechanical
Size (L-W-H)
Weight (Net)
Accessories
User Manual
VGA x1
• Supports VGA resolution up to
1920x1200@60Hz
RJ45 x1
• Supports Gigabit
Ethernet,10M/100M/1000M
SD/Micro SD 3.0
• Supports Secure Digital v3.0 UHS-I
(Ultra High Speed): SDR12 (12.5Mbyte/s)
/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)
/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
• Allow one card to work at one time when
both SD and Micro SD card are connected.
USB Type-C Male x1
Type-C Female x2
USB-A Female x2
HDMI Female x1
VGA Female x1
RJ45 x1
SD slotx1, Micro SD slotx1
3 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
Max 100W(20V/5A)
122x70x14mm - (4.8"x2.7"x0.5")
89.2g - (0.2Lbs)
English Version
