Rocstor Y10A261-B1 User Manual

2-in-1 Mini DisplayPort™ to HDMI® 4K/30Hz
or VGA Adapter Converter - Black
Congratulations
Thank you for purchasing this premium Rocstor this product. For optimum performance
and safety, please read these instructions carefully before connecting, operating or using
this product. Please keep this manual for future reference.
Introduction

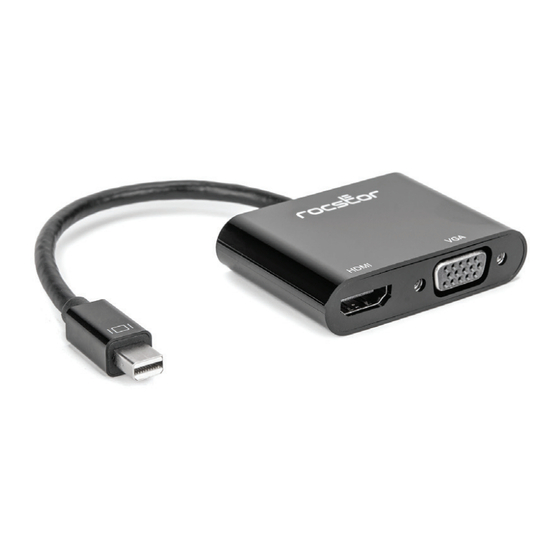

This is a premium Rocstor Mini DisplayPort to HDMI and VGA Adapter. It allows you to
transmit signals from a Mini DisplayPort display ( Macbook Pro， Macbook Air， etc) to a
high de nition HDMI or VGA display (TV sets, projectors, etc). With this product, you
can watch videos or slideshows together on the big screen.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
How to Use
1 - Connect the Mini DisplayPort male port of this adapter to the host computer.
2 - Connect the HDMI port of this multiport adapter to an HDMI monitor.
3 - Connect the VGA port of this multiport adapter to a VGA monitor.
User Manual
Y10A261-B1
®
Features
Upstream:
Mini DisplayPort Male (Connect to host computer)
• Compliant with DP1.2 speci cation
downward compatible with lower versions
Downstream:
VGA x1 Female
• Supports VGA resolution up to 1920x1200@60Hz
HDMI x1 Female
• Support HDMI highest video resolution 4Kx2K@30Hz
• Support content protection of HDCP
• EDID pass-through from PC source to display
• Support 3D format and compliant with lower versions
• Support power automatic management
Note:
If both of the outputs are connected, then only one output can
receive the input signal, HDMI output is prior to VGA output.
Speci cation
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Requirement
Power consumption
Regulatory Approvals
Certi cations
Mechanical
Size (L-W-H)
Weight (Net)
Accessories
User Manual
Mini DisplayPort Male x1
HDMI Female x1
VGA Female x1
3 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 80 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
5% to 90 % RH (no condensation)
HDMI output: <400mA
VGA output: <400mA
NO output device ： <20mA
FCC, CE
14.5x42x60 mm - 0.57"x1.65"x2.36"
34 gr - 1.2 oz
English Version
