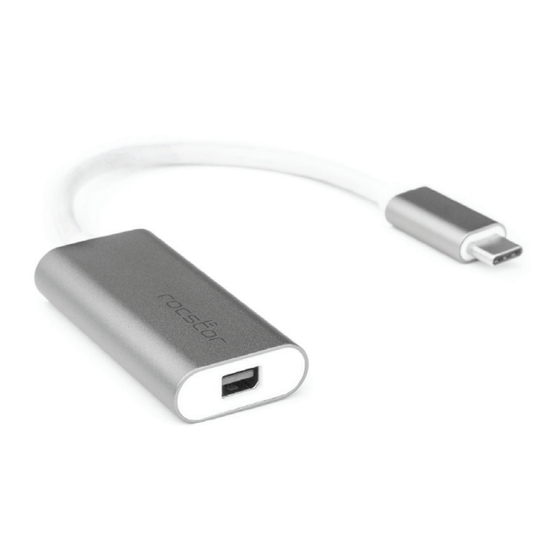

Rocstor Y10A242-A1 User Manual

USB Type-C® to Mini DisplayPort™ Adapter
4K 60Hz - M/F - Aluminum
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
This Premium Rocstor Type-C to Mini DisplayPort Adapter with HBR3 allows to connect
Type-C source or Thunderbolt™ 3 source to Mini DisplayPort display at max 8K@30Hz
resolution. It can work on all DP Alt mode supported Type-C host.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
System Requirement
Host computer with an available USB-C Port
- USB 3.0/3.1/3.2
Operating systems
- Windows 7 / 8 / 10 / 11
- Android OS
- Chrome OS
- Linux OS
- Mac OS v10.5 or above
User Manual
Y10A242-A1
®
Features
Upstream:
USB Type-C Male
(Connect to host computer)
Downstream:
Mini DisplayPort Female
(Connect to Display)
• Supports Type-C input and Mini DisplayPort output
• Supports DisplayPort 1.4/1.2 Alt mode
• Supports per lane data rates of 8.1Gbps(HBR3),5.4Gbps (HBR2),
2.7Gbps (HBR) and 1.62Gbps (RBR)
• Support up to 48 bit (16bit per channel) deep color
• Supports content protection of HDCP1.4 & HDCP 2.2
• Supports Mini DisplayPort resolution up to 8K(7680x4320)@30Hz
• USB bus power (no external power supply)
Notes:
This product is not a Thunderbolt 3 to Thunderbolt 2 adapter,
it can only transfer DP signal, not Thunderbolt signal, thus output port
can only be connected to mini displayPort display, not Apple
Thunderbolt display.
Speci cation
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Power Requirement
Power Source
Size (LxHxW)
Weight
Accessory
User Manual
Type-C Male x1
Mini DisplayPort Female x1
2 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
USB bus power
8"x0.40"x0.98" - 203x10.1x24.8 mm
1.10 oz - 31.8 gr
English Version
