DisplayPort 1.2 to HDMI & VGA Multiport
Active Video Adapter - 4K/60Hz
Congratulations
Thank you for purchasing this premium Rocstor this product. For optimum performance
and safety, please read these instructions carefully before connecting, operating or using
this product. Please keep this manual for future reference.
Introduction

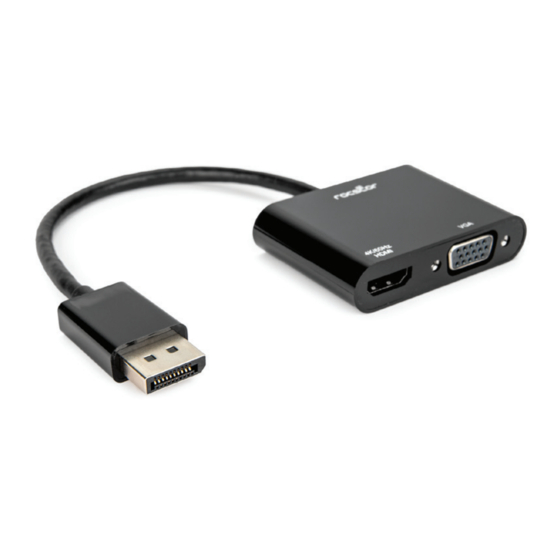

This is a premium Rocstor DisplayPort to HDMI and VGA Adapter. allows you to
transmit signals from a DisplayPort display to a high de nition HDMI or VGA display
(TV sets, projectors, etc). With this product, you can watch videos or slideshows
together on the big screen
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
How to Use
1 - Connect the Mini DisplayPort male port of this adapter to the host computer.
2 - Connect the HDMI port of this multiport adapter to an HDMI monitor.
3 - Connect the VGA port of this multiport adapter to a VGA monitor.
User Manual
Y10A295-B1
®
Features
Upstream:
DisplayPort Male
(Connect to host computer)
• Supports DP1.2
Downstream:
VGA x1 Female
• Supports VGA resolution up to 1920x1200@60Hz
HDMI x1 Female
• Supports HDMI resolution 4Kx2K@60Hz
Features
• Support DisplayPort input, HDMI, VGA output
• Compliant with DP1.2 speci cation， and downward compatible with
lower versions
•18Gbps bandwidth
• Support HDR
• Support HDMI and VGA to output simultaneously with max
1920x1080p@60Hz under SST mode
• HDMI support content protection of HDCP
• EDID pass-through from PC source to display
• Support 3D format and compliant with lower versions
• Support power automatic management
Speci cation
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Requirement
Power Source
Max Resolution
HDMI Resolution
VGA Resolution
Regulatory Approvals
Certi cations
Mechanical
Size (H-W-L)
Weight (Net)
Accessories
User Manual
DisplayPort Male x1
HDMI Female x1
VGA Female x1
3 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 80 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
5% to 90 % RH (no condensation)
Bus Power
3840*2160@60Hz，
4096*2160@60Hz
920*1200@60Hz
FCC, CE
14.5x42x60 mm - 0.57"x1.65"x2.36"
39 gr - 1.2 oz
English Version
