Rocstor Y10A266-A1 User Manual

User Manual
USB Type-C® Multiport Adapter 3-in-1 USB Type-C® to
HDMI® 4K/60Hz, VGA, or DVI™ 1080p - Gray
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction

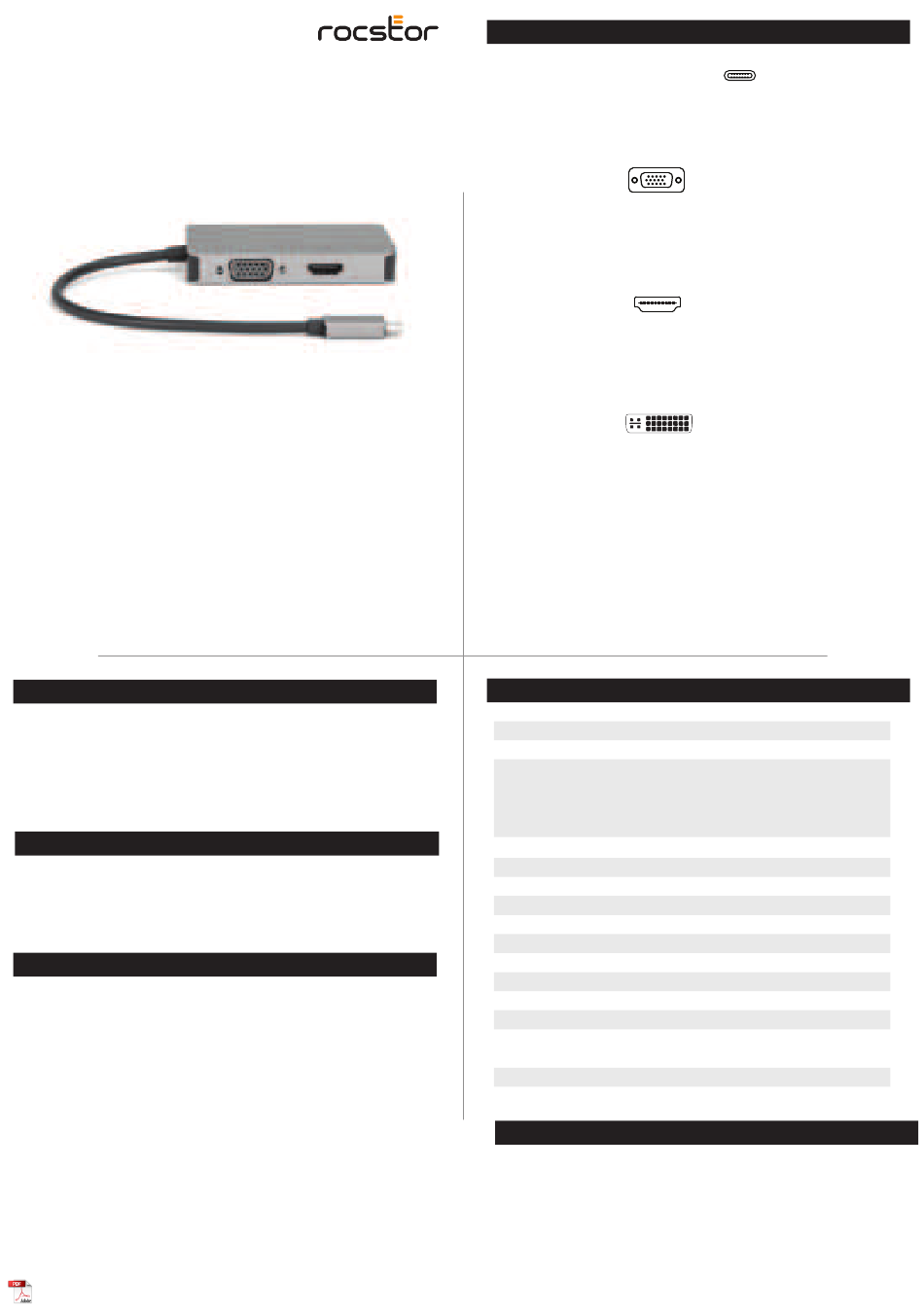

This is a premium Rocstor Type-C to DVI, HDMI and VGA adapter. It allows you to
transmit signals from a Type-C source to a high definition DVI or HDMI or VGA display
(TV sets, projectors, etc). It is compatible with all DP Alt mode supported Type-C or
Thunderbolt 3 hosts. With this multiport adapter, you can watch video or slideshows
on a big screen.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• 1 x Main Unit
• User Manual
How to Use
1- Connect this multiport adapter to the host computer.
2- Connect the DVI port to a DVI monitor.
3- Connect the HDMI port to an HDMI monitor.
4- Connect the VGA port to a VGA monitor.
Y10A266-A1
®
Features
Upstream:
USB Type-C Male
(Connect to a host computer)
• Type-C supports reversible plug
Downstream:
VGA
• Supports VGA resolution up to
1920x1200@60Hz
• Supports RGB
4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
• Supports HDCP1.4&2.2
HDMI
• Supports HDMI resolution up to
4Kx2K@60Hz
• Supports HDMI 8/10/12bit
• Supports HDR
• Supports HDMI 9 Gbps Bandwidth
DVI
• Supports DVI Resolution up to
1080P@60Hz
FEATURES
• Allows HDMI and VGA to output simultaneously with 1080P/60Hz under SST mode
• Allows DVI and VGA to output simultaneously with 1080P/60Hz under SST mode
• HDMI and DVI can not work at the same time
• Priority: VGA>DVI>HDMI
Specification
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certifications
Mechanical
Size (L-W-H)
Weight (Net)
Accessories
User Manual
System Requirement
Host computer with an available USB-C Port
- USB 3.0/3.1/3.2
Operating systems
- Windows 7 / 8 / 10 / 11
- Android OS
- Chrome OS
- Linux OS
- Mac OS v10.5 or above
USB Type-C Male x1
USB-C Male x1
HDMI Female x1
USB-C Female x1
(for data or Charging)
USB-A Femalex1
3 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
85x45x14.5mm - 3.3"x 1.7"x 0.5"
39gr - (0.08lbs)
English Version
