Summary of Contents for Dormakaba YG80
- Page 1 YG80 Weatherproof Lock Installation & Operating Instructions...
-
Page 2: Table Of Contents
Toggle Mode Twin Wire Mode Monitor Connections Operations Operation Modes Failure Modes Heater Mode (Requires 24VDC Power Supply) Maintenance Maintenance and Cleaning End of Service Life © 2024 dormakaba Canada Inc. www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com... - Page 3 Document Information Contents and Purpose This document describes installation, connection, operation, and maintenance of the lock YG80. Read the document carefully and observe the instructions it contains. They contain important information for reliable installation and trouble-free operation. Target Group Target group of these instructions are: •...
-
Page 4: Safety And Compliance
The unit shall be powered by a UL 294 or UL 2610 listed power supply with a Class 2 power limited output. • All factory tested grades were not evaluated by UL. © 2024 dormakaba Canada Inc. www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com... - Page 5 In Countries Outside the European Union and EEA (Norway, Iceland, and Liechtenstein): If you wish to dispose of this product please contact your local authorities and ask for the correct way of disposal. © 2024 dormakaba Canada Inc. www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com...
-
Page 6: Product Information

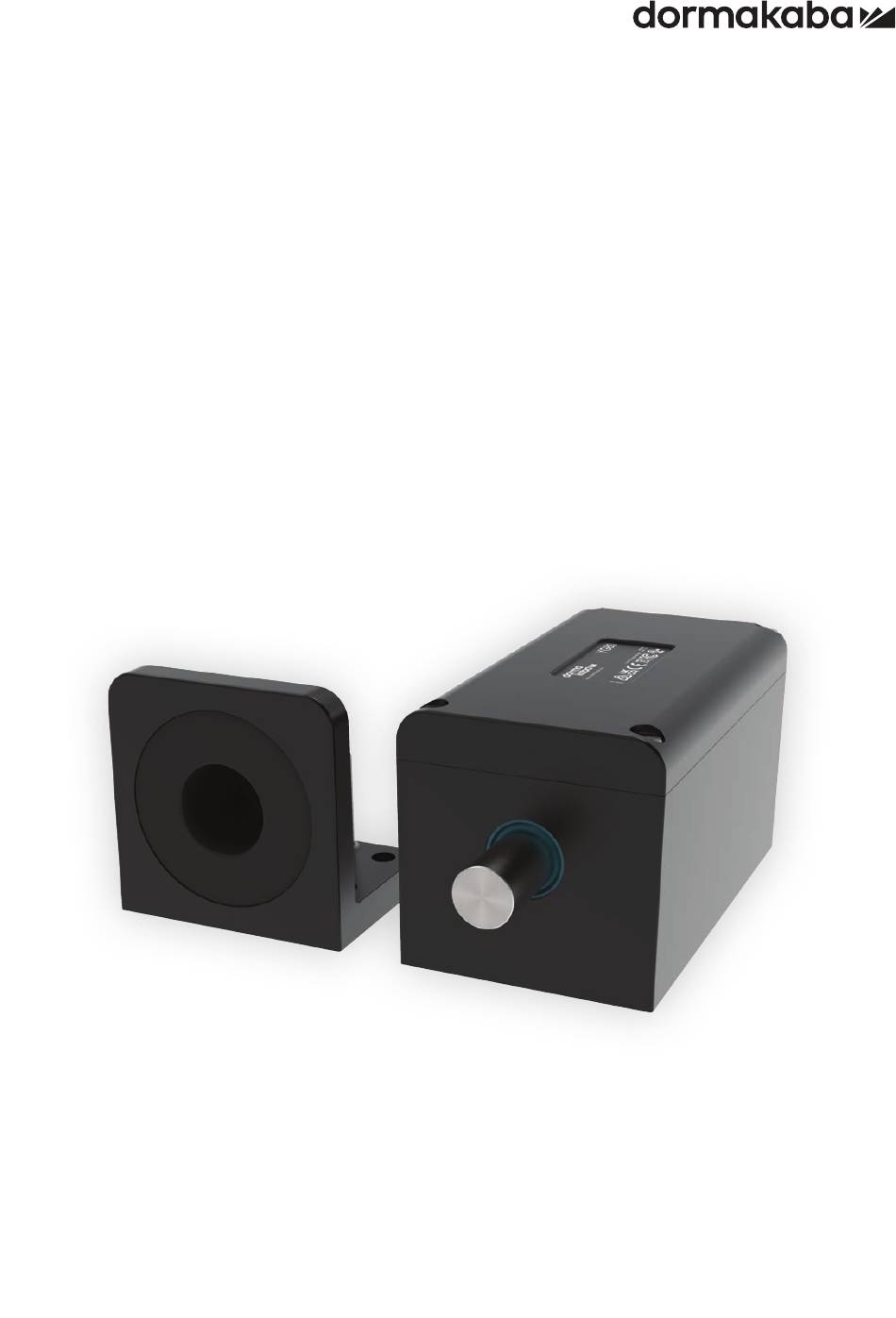

The YG80 is a low-voltage motor-driven heavy-duty lock suited for securing gates, roller doors, shipping containers, semi-trailers, and any other large door or entryway. The YG80 is designed to be weatherproof, low maintenance, and easy to install. It is supplied with a matching strike and can be installed externally or internally in a horizontal or vertical position. An 18mm diameter stainless steel... -
Page 7: Package Contents
Package Contents 1x Lock 1x Strike 1x Neoprene Gasket (Optional Use) 1x 3 metre 8-way wire loom © 2024 dormakaba Canada Inc. www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com... -
Page 8: Technical Data
40mA@12VDC, 30mA@24VDC Heater On Current 2.0A@24VDC (only 24VDC) Bolt Position (NO) 24VDC max., 250mA max. Signal Contacts Door Position (NO) Compliance CE, UKCA, UL, FCC, IC, RCM, RoHS © 2024 dormakaba Canada Inc. www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com... -
Page 9: Product Dimensions
The dimensions shown are approximate and subject to change without prior notice. 150.0mm 5 29/32" 80.0mm 3 5/32" 14.5mm 56.0mm 37/64" 2 13/64" 80.0mm 48.0mm 3 5/32" 1 57/64" 22.6mm 112.5mm 22.5mm 57/64" 4 27/64" 57/64" © 2024 dormakaba Canada Inc. www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com... -
Page 10: Strike Dimensions
The dimensions shown are approximate and subject to change without prior notice. 80.0mm 3 5/32" 60.0mm 80.0mm 2 23/64" 3 5/32" 22.0mm 28.0mm 55/64" 1 7/64" © 2024 dormakaba Canada Inc. www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com... -
Page 11: Pre-Installation
To ensure the YG80 operates properly, the lock and strike must be separated by 15mm or less (5/8 inch or less). -
Page 12: Wiring Assessment
Cable being run out through the neoprene Cable being tracked through the channel and gasket to pass through mounting surface. out the back of the lock for use with conduit. © 2024 dormakaba Canada Inc. www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com... -
Page 13: Operating Mode Assessment
The lock can also be set to either fail safe, or fail secure. Deciding this will depend on how the lock should behave when there is power loss. • For fail safe, the control input is set high to lock the door, and the YG80 will unlock in the event of power loss. •... -
Page 14: Strike Configuration
Strike Configuration The YG80 strike can be mounted a number of ways in relation to the lock, but to do so the embedded magnet must be moved to align with the YG80s internal reed sensor. Consider the magnet location for the following mounting orientations. -
Page 15: Mounting
Place the lid back onto the lock and tighten up the lid screws using a 4mm hex key. To ensure a good even seal between the lid and lock body, partially tighten all four screws first before completely tightening them. © 2024 dormakaba Canada Inc. www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com... -
Page 16: Strike Installation
You can verify the placement and configuration of the strike by closing the door and removing the lid of the lock. If the YG80 detects the magnet, the LED will light up. Otherwise if it does not light up, the gap between the lock and strike may be too large or the magnet may not be in the correct location under the strike ring. -
Page 17: Wiring
Wiring The YG80 is supplied with a 8-way wire loom that plugs directly into the lock. The wires are colour coded as per table below, with the power and control wires being essential connections and the four monitor connections being optional. -
Page 18: Toggle Mode
When the bolt begins extending, the wire will switch to an open contact state. Tamper Detection: When the lid is on the YG80, the green tamper detection monitor wire will be • in a closed contact state. If the lid is removed in any way, the wire will switch to an open contact state. -
Page 19: Operations
Toggle Mode Operation Twin Wire Mode Operation Diagnostic Mode Operation Fail Safe Mode Fail Secure Mode Heater Off Heater On (Requires 24VDC to be supplied) Next Diagnostic Test (Diagnostic Mode Only) TOGGLE © 2024 dormakaba Canada Inc. www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com... -
Page 20: Operation Modes
BLUE wire. When the door is closed the YG80 senses the strike and activates the bolt pin. If the bolt pin is obstructed during locking, the YG80 will attempt three times to lock before returning to the unlocked state. To unlock the door, the voltage is removed from the BLUE wire. -
Page 21: Failure Modes
Fail Secure In the event of a power failure, the YG80 will lock, or remain locked, if the door is closed. This ensures that a lock will not disengage during power failure, keeping the access secured. -
Page 22: Maintenance
This proactive approach ensures reliability and maintains the integrity of the product’s performance over time. © 2024 dormakaba Canada Inc. www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com DN 01029/001 03-2024...
