- Page 1 User Manual VEX-B24L Version: 1.0 Due to the regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.
- Page 2 REMARK Please follow the user manual for correct installation and testing. If there is any doubt please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra notice for any change. The illustration shown here is only for reference. If there is any difference, please take the actual product as the standard.
-
Page 3: Table Of Contents
CATALOG PRODUCT FEATURE ..............- 1 - TECHNICAL PARAMETER ............- 1 - PACKAGE CONTENT ..............- 2 - OVERVIEW .................. - 3 - BASIC OPERATION ..............- 4 - DEVICE SETTING ............... - 6 - WEB SETTING ................- 9 - SYSTEM DIAGRAM .............. -
Page 4: Product Feature

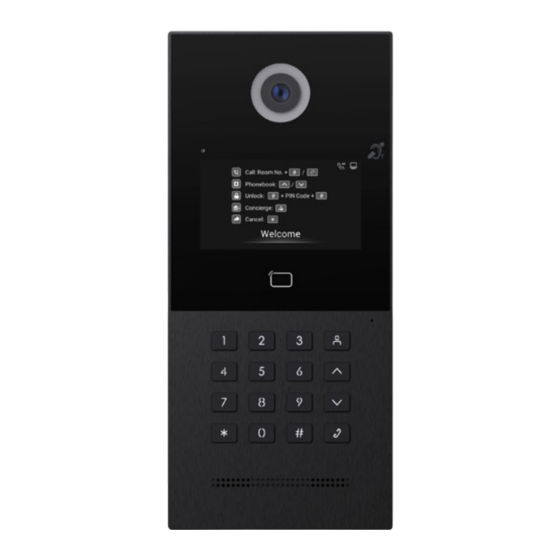

PRODUCT FEATURE Induction loop for hearing impaired Braille dot for visually impaired 3 output relays for door locks Tamper alarm 5. Support IC (13.56MHz) & ID (125kHz) card, PIN code, NFC TECHNICAL PARAMETER Power Supply: PoE (802.3af) or DC 12V/2A Standby Power: 1.5 W Rated Power: 9 W Resolution: 480 x 272... -
Page 5: Package Content
PACKAGE CONTENT MODEL: VEX-B24L (Surface Mounting) Sealing Plug of VEX-B24L Wiring Cover Junction Pressing PWM3×8×7 (4 pcs) Wiring Port Screw Fixing Seat (4 Rear Cover PA4×25 (4 pcs) FM3×4.5 (2 pcs) Hang rope pcs) Wrench Screw Diode (3 pcs) Rain Hood (Optional) -
Page 6: Overview
OVERVIEW - 3 -... -
Page 7: Basic Operation
BASIC OPERATION 1. Call and Monitor 1.1 Call Indoor Monitor In standby mode, press room numbers + #/dial on Door Station to call Indoor Monitor. During the call, press * on Door Station again to end the call. If the call fails or Indoor Monitor is busy, Door Station will make a beep sound. - Page 8 5.2 Delete other cards one by one Step 1: Tap the admin card twice; Step 2: And then tap other cards immediately. Other cards you have tapped will be deleted; Step 3: Tap the admin card again to finish. 5.3 Delete all other cards Tap the admin card five times.
-
Page 9: Device Setting
DEVICE SETTING Connect Door Station and PC to a network switch in the same LAN. You can enter the admin settings of Door Station by pressing # twice and entering default password (123456). This is where you can configure the device. 1. - Page 10 Volume: Volume of System can be set from 1 to 6; Size: 3 resolutions supported (320 × 240, 640 × 480, 1280 × 720); 2. Network Settings The device network can be set to either DHCP or a static IP address. CMS parameters should be configured here when you try to register this device to CMS.
- Page 11 4. About System You can find basic information displayed in About System. Firmware Version: Firmware version of the device; Current IP address of the device; MAC: MAC address of the device; SIP: Status of SIP registration of the device; - 8 -...
-
Page 12: Web Setting
WEB SETTING Connect Door Station and PC to a network switch in the same LAN. You can enter the IP address of Door Station in the web browser search bar and log in with the default account (admin) and password (123456). This is where you can configure the device. For getting the IP address, you can search by Remote Upgrade Tool which is installed in the same LAN with the devices. - Page 13 Model: Model of the device; Firmware Version: Firmware version of the device; MAC Address: MAC address of the device; Framework: Framework of the device; UI of the device; MCU: MCU of the device; DHCP: Status of DHCP; IP Address: Current IP address of the device; Mask: Subnet mask of the device;...
- Page 14 Language: 16 languages supported (简体中文, English, 繁體中 文, ,ﬠִ בר ִ יתDeutsch, Español, Türk, Tiếng Việt, Nederlands, Português, Polski, Русский, ,ﻋرﺑﻲ Français, Italiano, slovenský); Resolution: 3 resolutions supported (320 × 240, 640 × 480, 1280 × 720); Intercom: Volume of Intercom can be set from 1 to 6; System: Volume of System can be set from 1 to 6;...
- Page 15 1.4 General > Password The System password is for the administrator to log in settings on the device while the Web password is for the administrator to log in settings on the web. The default password for both of them is 123456. System Old Password: Current administrator password of the Device (Default 123456);...
- Page 16 Backup&Restore: Backup all setting and restore settings; Upgrade: Upgrade equipment; Reset: Reset to factory settings; Reboot: Reboot the device; Packet Capture: Capturing packets can help developers reproduce positioning problems; Logs: Device logs; Screenshot: Screenshot device interface; - 13 -...
- Page 17 2. Intercom 2.1 Intercom > Device Numbers here are basic settings for making a call to Indoor Monitor. For Door Station, the building and unit number should be the same as those in Indoor Monitor. For Villa Station with one button, the building, unit, and room number should be the same as those in Indoor Monitor.
- Page 18 DHCP: Enable DHCP (Dynamic Host Configuration Protocol) to dynamically distribute network configuration parameters; IP Address: Configure Static IP address to manually distribute network configuration parameters; Mask: Subnet mask; Gateway: A component that is part of two networks, which use different protocols; DNS: Domain Name Server of the device;...
- Page 19 SIP: Enable to use SIP; Display Name: Display name of SIP; Register Name: Register Name of SIP; Username: Username of SIP; Password: Password of SIP; SIP Server Host: Directly fill in SIP server’s address e.g., 192.168.68.90; The default port is 5060; Outbound Proxy: Outbound Proxy of SIP;...
- Page 20 Mode: 2 modes supported (one by one, all at once); Call Concierge URL: Fill in the call destination for concierge button or the single button on the device; IP call: Fill in sip:IP address, e.g., sip:192.168.68.90; SIP call: Fill in sip:sip account@SIP server address:port, e.g., sip:101@192.168.68.90:5060;...
- Page 21 Search: Fill in text inputs to search; Reset: Click reset to clear words in text inputs; Delete All: Delete all data on the chart; Import: Import all data to the chart; Export: Export all data on the chart; 3. Access 3.1 Access >...
- Page 22 Relay2:0, relay3: *); Unlock Delay: The length of unlock delay time (1-9s); Unlock Time: The length of unlock time (1-9s); Dry Contact Input 1-3: 3 modes of dry contact inputs are supported (Exit Button, Door Sensor, Fire Linkage); Lift Reference Floor: The floor Door Station is installed at (Range: -9-99);...
- Page 23 RTSP Feed: 4 IP cameras supported to switch while talking on Indoor Monitor; URL: IP camera’s URL; 4.2 Advanced > More More column is for Tamper Alarm and ONU Penetration. Tamper Alarm: Enable to use Tamper alarm; ONU Penetration: Enable to prevent ONU from banning multicast; Call Mode: Switch to RoomNo.
-
Page 24: System Diagram
SYSTEM DIAGRAM - 21 -... -
Page 25: Device Wiring
DEVICE WIRING 1. Network (PoE) Standard RJ45 interface is for the connection with PoE switch or other network switch. PSE shall comply with IEEE 802.3af (PoE) and its output power not less than 15.4W and its output voltage not be less than 50V. 2. - Page 26 4. RS485/Switching Value Output Enable to connect equipment with RS485 interface. Connect to the lock module (an independent power supply is necessary for the lock). Warning! 1. When connecting to an inductive load device such as a relay or electromagnetic lock, you are recommended to use a diode 1A/400V (included in the accessories) in anti-parallel with the load device to absorb inductive load voltage peaks.
-
Page 27: Installation
INSTALLATION Surface Mounting-Asian Gang Box Asian Gang Box Product size: 133 × 295 × 41 mm Surface Mounting size: 133 × 295 × 43 mm - 24 -... - Page 28 Flush Mounting Product size: 133 × 295 × 41 mm Flush Mounting size: 133 × 295 × 63.5 mm Mounting hole size: 124 × 289 × 56 mm - 25 -...
- Page 29 Surface Mounting & Rain Hood (Optional) Asian Gang Box Product size: 133 × 295 × 41 mm Surface Mounting size: 133 × 295 × 43 mm - 26 -...
- Page 30 Flush Mounting & Rain Hood (Optional) Product size: 133 × 295 × 41 mm Flush Mounting size: 133 × 295 × 63.5 mm Mounting hole size: 124 × 289 × 56 mm - 27 -...
- Page 31 Tips: The camera should be 1450~1550mm above the ground. The camera at this height can capture human face perfectly. - 28 -...
-
Page 32: Troubleshooting
TROUBLESHOOTING The Indoor Monitor cannot start up or power off automatically. Check whether it has power-failure, and power it on again The Indoor Monitor display screen is too dim. Check whether the brightness and contrast settings of screen are correct. ... -
Page 33: Safety Instruction
SAFETY INSTRUCTION In order to protect you and others from harm or your device from damage, please read the following information before using the device. Do not install the device in the following places: Do not install the device in high-temperature and moist environment or the area close to ... - Page 34 FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 35 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
