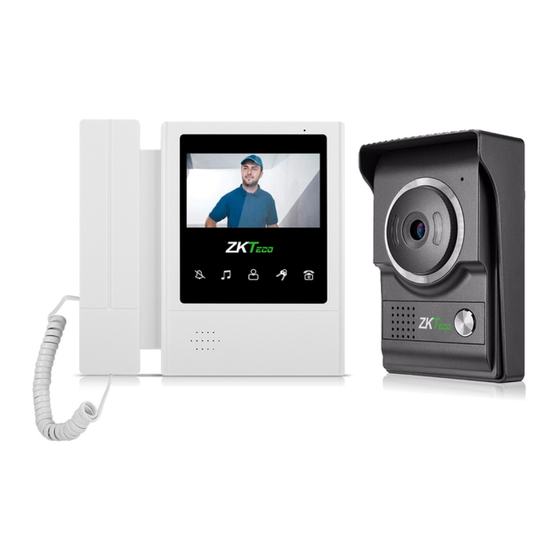

- Page 1 Quick Installation Guide Videoportero - VDP04-B4 Kit VDP04-B4 Kit A...
-
Page 2: Indoor Unit
Machine Translated by Google 2. Indoor unit indoor unit outdoor unit Adapter Screws Cable Indoor unit plate Please read all instructions before installation Manual... -
Page 3: Outdoor Unit
Machine Translated by Google 2. Outdoor unit Pantalla TFT-LCD Cancel ringtone Adjust ringtone and ring volume Monitoring button Unlock button Intercom or call button microphone Screen color adjustment Screen brightness adjustment Communicator volume adjustment speaker Call handset Power supply connection DC15V 13) 14) Outdoor unit connection (Same connection for another monitor) - Page 4 Machine Translated by Google 3. Operating instructions Settings The knob (at the bottom) allows you to adjust three parameters Brightness of the screen screen color Communication Volume b.Indoor station volume and music adjustment music settings Press the “monitor button” to enter the working state, then press the “volume and ringtone adjustment button”, you will hear the buzzer, at the same time, you can adjust the ringtone, 25 ringtones can be chosen call, after all, press the monitor button to close, finished the music setting.
-
Page 5: Installation
Machine Translated by Google Electric button lock Departure Control power supply (DC 12V) internal unit Unit external Lock magnetic Next internal drive 5. Installation The standard installation height of the indoor unit is 145cm ~ 160cm (distance between the center of the screen and the ground) The standard installation height of the outdoor unit is 145cm ~ 160cm (distance... - Page 6 Machine Translated by Google Indoor Unit Outdoor Unit Input: 100 AC - 240V Salida: 12V- 15V CD Feeding Power Receives power from the monitor 1500mA Standby: ÿ 1W Standby: ÿ 0W Power Power In operation: ÿ 10W In operation: ÿ 2W Glass screen Screen Camera...
- Page 7 Machine Translated by Google Copyright © 2022, ZKTeco CO., LTD. All rights reserved. ZKTeco may, at any time and without prior notice, make changes or improvements to products and services or stop their production or marketing. www.zkteco.com www.zktecolatinoamerica.com ZKTeco logo and brand are owned by ZKTeco CO., LTD.
