Page | 1
Page | 1
Page | 1

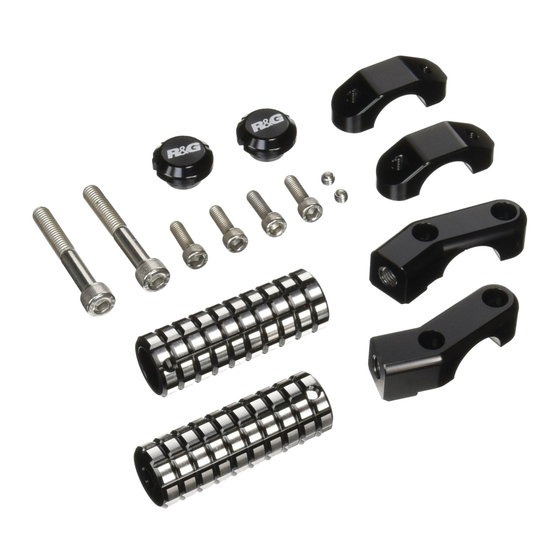

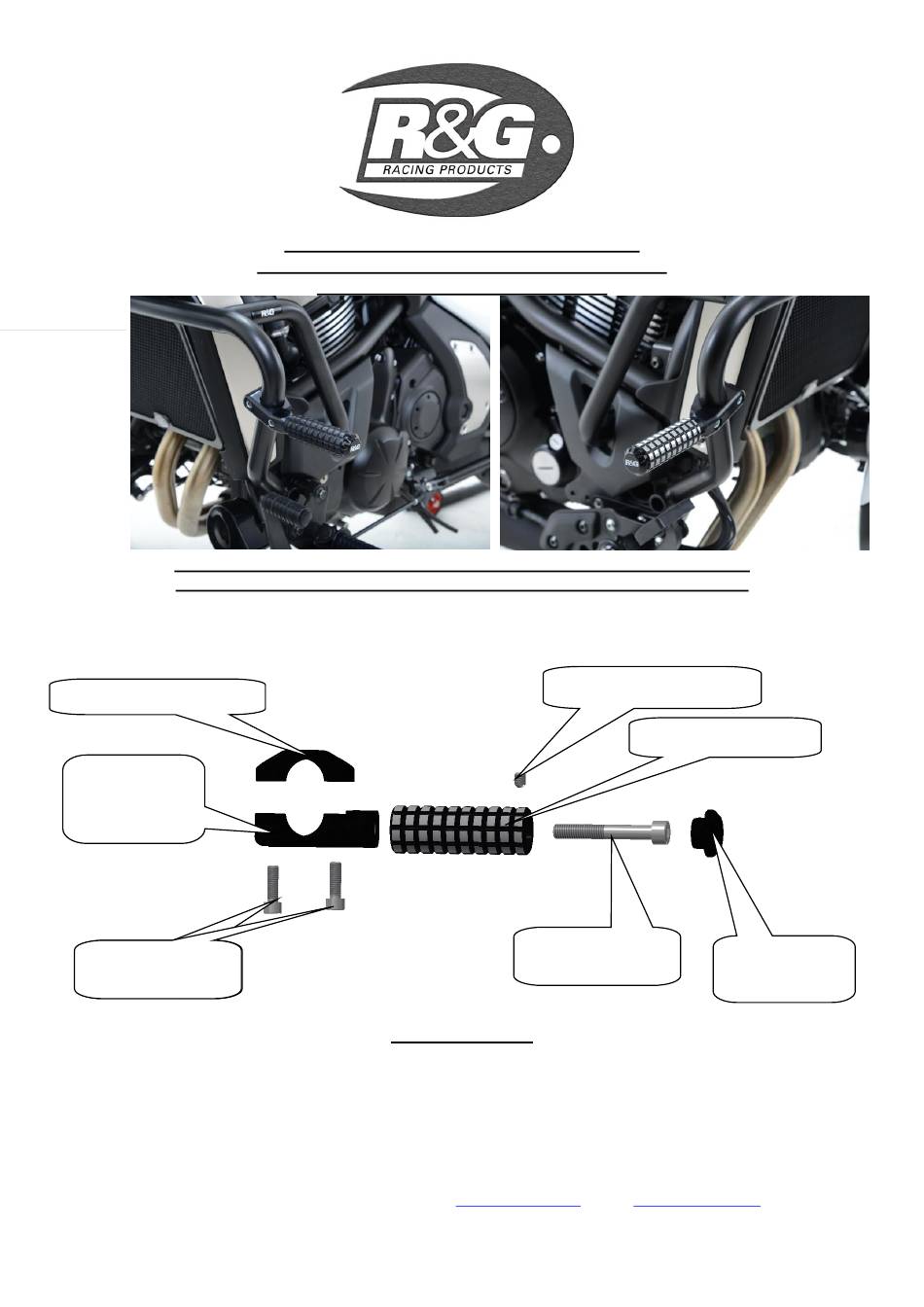

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
CLAMP (F0044) (x1)
MOUNTING
BLOCK
(M0463) (x1)
M6 x 20mm Cap
M6 x 20mm Cap
Head Bolt (x2)
Head Bolt (x2)
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
FITTING INSTRUCTIONS FOR HWP0001
HIGHWAY PEGS TO BE FITTED WITH AB0017
KAWASAKI VULCAN S 650 2015-
mounting to the bike
LEFT HAND SIDE
R&G Racing
(
FOR CLARITY OF INSTRUCTIONS ONLY
M6 SET SCREW(x1)
M8 x 55mm Cap
Head Bolt (x1)
www.rg-racing.com
Email:
1
HWP0001
)
PEG (RP0007) (x1)
PEG SLIDER
(PS0005) (x1)
info@rg-racing.com
Advertisement
Table of Contents
Related Manuals for R&G HWP0001
Summary of Contents for R&G HWP0001
- Page 1 HWP0001 FITTING INSTRUCTIONS FOR HWP0001 HIGHWAY PEGS TO BE FITTED WITH AB0017 KAWASAKI VULCAN S 650 2015- Page | 1 Page | 1 Page | 1 THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
-
Page 2: Mounting Block
HWP0001 M6 SET SCREW(x1) CLAMP (F0044) (x1) MOUNTING Page | 2 Page | 2 Page | 2 BLOCK (M0462) (x1) PEG SLIDER (PS0005) (x1) M8 x 55mm Cap M6 x 20mm Cap M6 x 20mm Cap Head Bolt (x1) Head Bolt (x2) - Page 3 HWP0001 Engage the exposed thread into the mounting block (M0462) (do not tighten at this stage). Place the two remaining M6 cap head bolts into the mounting block (M0462) so the heads of the bolts fit into the counter-bores in the block.
-
Page 4: Left-Hand Side
HWP0001 NOTICE DE MONTAGE HWP0001 PEGS DE ROUTE (AVEC AB0017) KAWASAKI VULCAN S 650 2015- Page | 4 Page | 4 Page | 4 E KIT CONTIENT LES ARTICLES EXPOSES CI DESSOUS VERIFIER QUE TOUTES LES PIECES SOIENT PRESENTES AVANT DE PROCEDER AU MONTAGE La façon dont le kit est emballé... -
Page 5: Outils Requis
HWP0001 M6 VIS (x1) CLIP (F0044) (x1) Page | 5 Page | 5 Page | 5 BLOC DE FIXATION (M0462) (x1) SLIDER DE M8 x 55mm M6 x 20mm M6 x 20mm Cap (PS0005) (x1) BOULON (x1) BOULON (x2) Head Boulon... - Page 6 HWP0001 COTE DROIT Placer le boulon M8 restant dans le peg restant de façon à ce que la tête du boulon se place dans le contre alésage. Engager le filetage dans le bloc de fixation (M0462) (Ne pas serrer pour le moment).
