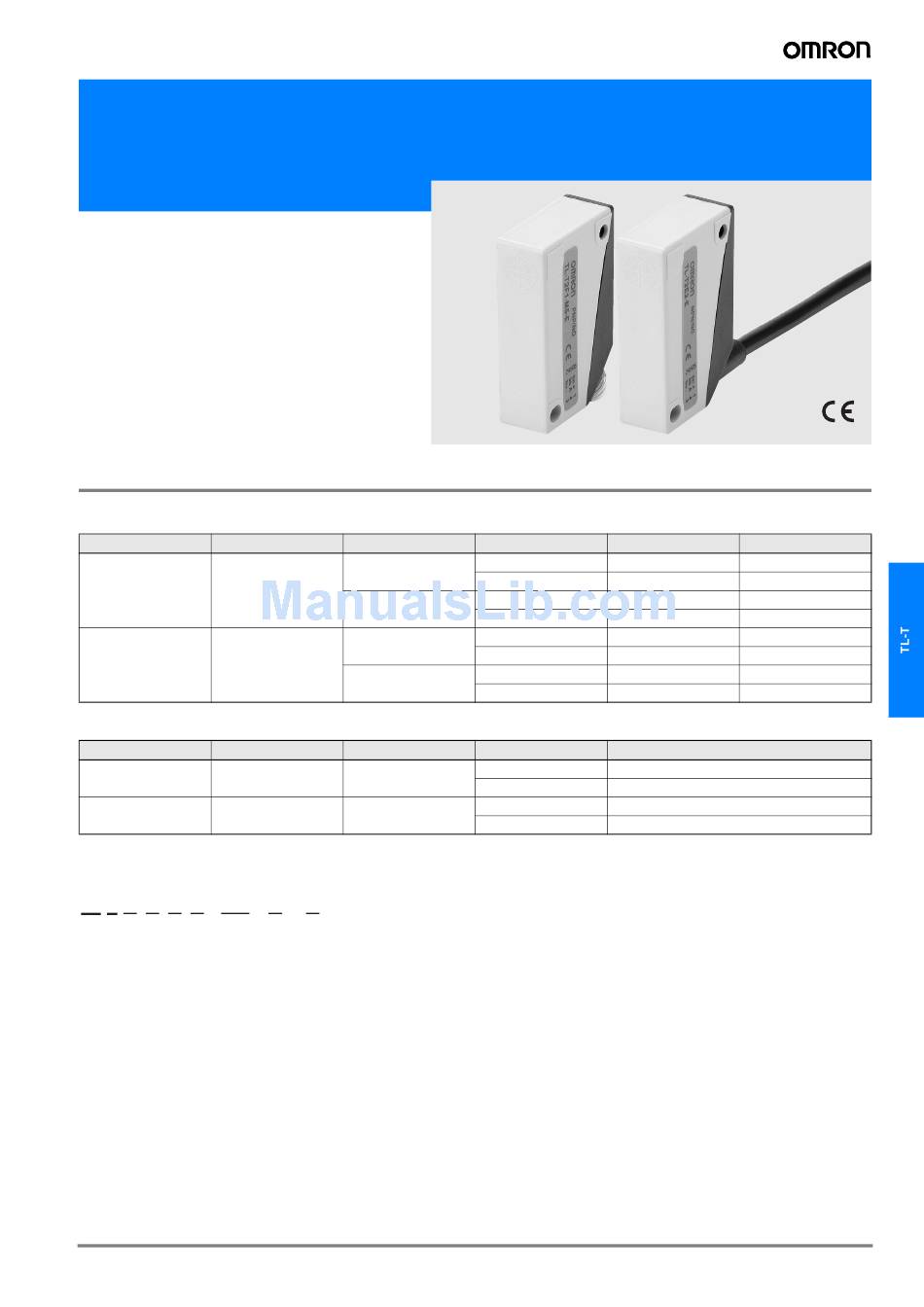

Standard (thin shape) Inductive Proximity Sensor
TL-T
• Thin shape for space saving surface mounting
• Direct side wall mounting for bracket-less installation
Ordering Information
DC 3-wire Models
Installation
Sensing distance
Shielded
2.0 mm
Non-Shielded
4.0 mm
DC 4-wire Models (NO + NC)
Installation
Sensing distance
Shielded
2.0 mm
Non-Shielded
4.0 mm
Model Number Legend
@ @ @ @ - @@ - @ @
TL-T
1
2 3
4
5
6
7
1. Basic name
TL
2. Housing & shape material
Square plastic 40 x 12 x 26 mm
3. Sensing distance
2:
2mm
4:
4mm
4. Shield
Blank:
Shielded
M:
Non-shielded
5. Power source & output
E:
NPN voltage output
F:
PNP voltage output
6. Operation mode
1:
Normally open (NO)
2:
Normally closed (NC)
3:
Antivalent (NO + NC)
TL-T
Connection
Pre-wired
M8 Connector (3-pin)
Pre-wired
M8 Connector (3-pin)
Connection
Pre-wired
Pre-wired
Example: TL-T2F1-E 2M
TL-T4MF1-M5-E Square housing (40x12x26 mm), Sn=4 mm, not shielded,
8
9
Output configuration Operation mode NO
NPN
TL-T2E1-E
PNP
TL-T2F1-E
NPN
TL-T2E1-M5-E
PNP
TL-T2F1-M5-E
NPN
TL-T4ME1-E
PNP
TL-T4MF1-E
NPN
TL-T4ME1-M5-E
PNP
TL-T4MF1-M5-E
Output configuration
Operation mode antivalent (NO + NC)
NPN
TL-T2E3-E
PNP
TL-T2F3-E
NPN
TL-T4ME3-E
PNP
TL-T4MF3-E
Square housing (40x12x26 mm), Sn=2 mm, shielded, PNP-NO,
made by OMG, pre-wired PVC cable (3x0,25 mm²) 2 m
PNP-NO, M8 (3-pole) connector, made by OMG
7. Kind of connection
Blank:
Pre-wired, PVC dia 4mm
WA:
Pre-wired, PUR/PVC dia 4mm
WR:
Robot cable, PVC dia 4mm
M5:
M8 connector (3-pole)
M1J:
M12 connector (4-pole)
with pig-tail cable (PVC)
M3J:
M8 connector (4-pole)
with pig-tail cable (PVC)
M5J:
M8 connector (3-pole)
with pig-tail cable (PVC)
8. Production site
E:
European Union
9. Cable length
Blank:
Connector type
Numeral:
Cable type
Operation mode NC
TL-T2E2-E
TL-T2F2-E
TL-T2E2-M5-E
TL-T2F2-M5-E
TL-T4ME2-E
TL-T4MF2-E
TL-T4ME2-M5-E
TL-T4MF2-M5-E
D-61
