Omron TL Datasheet

Smooth Barrel Proximity Sensors
TL

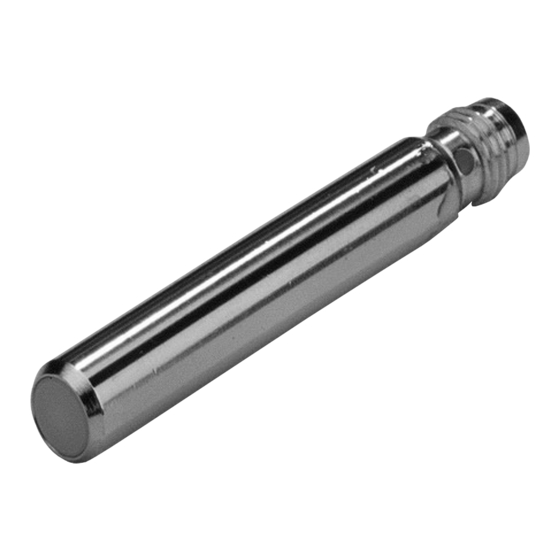

Cylindrical dia 8 mm
all-metal housing with
M8 plug connection
or pre-wired
Ordering information
Short barrel type
Versions
Size Type
Connector
Shielded
Pre-wired
8 mm
Connector
Non-shielded
Pre-wired
Long barrel type
Versions
Size Type
Connector
Shielded
Pre-wired
8 mm
Connector
Non-shielded
Pre-wired
Specifications
Type
Sensing distance (Sn)
Power supply
Power consumption
Object St 37
Switching hysteresis
Switching frequency
Temperature dependency
Ambient temperature
Switching output
Residual voltage
Function display
Degree of protection
Housing material
TL
Output
S (mm) NPN
n
NO
TL-C1R5E1-M3-E1 TL-C1R5E2-M3-E1 TL-C1R5F1-M3-E1
1.5
TL-C1R5E1-E1
TL-C2ME1-M3-E1
2
TL-C2ME1-E1
Output
S (mm) NPN
n
NO
TL-C1R5E1-M3-E2 TL-C1R5E2-M3-E2 TL-C1R5F1-M3-E2
1.5
TL-C1R5E1-E2
TL-C2ME1-M3-E2
2
TL-C2ME1-E2
8 mm Ø
TL-C1R5@@-E1
TL-C1R5@@-E2
1.5 mm ± 10%
10 to 35 V DC
15 mA max.
8 x 8 x 1 mm
1 to 15 %
5 kHz
10% max.
-25° to 70° C
300 mA max.
2.5 V max.
1 LED
IP 65
Nickel-plated brass
PNP
NC NO
TL-C1R5E2-E1 TL-C1R5F1-E1
TL-C2ME2-M3-E1 TL-C2MF1-M3-E1
TL-C2ME2-E1 TL-C2MF1-E1
PNP
NC NO
TL-C1R5E2-E2 TL-C1R5F1-E2
TL-C2ME2-M3-E2 TL-C2MF1-M3-E2
TL-C2ME2-E2 TL-C2MF1-E2
TL-C2M@@-E1
TL-C2M@@-E2
2 mm ± 10%
NC
TL-C1R5F2-M3-E1
TL-C1R5F2-E1
TL-C2MF2-M3-E1
TL-C2MF2-E1
NC
TL-C1R5F2-M3-E2
TL-C1R5F2-E2
TL-C2MF2-M3-E2
TL-C2MF2-E2
