Omron E3X-N Manual

Omron E3X-N Manual

Auto-tuning fiber-optic sensor

Advertisement

Quick Links

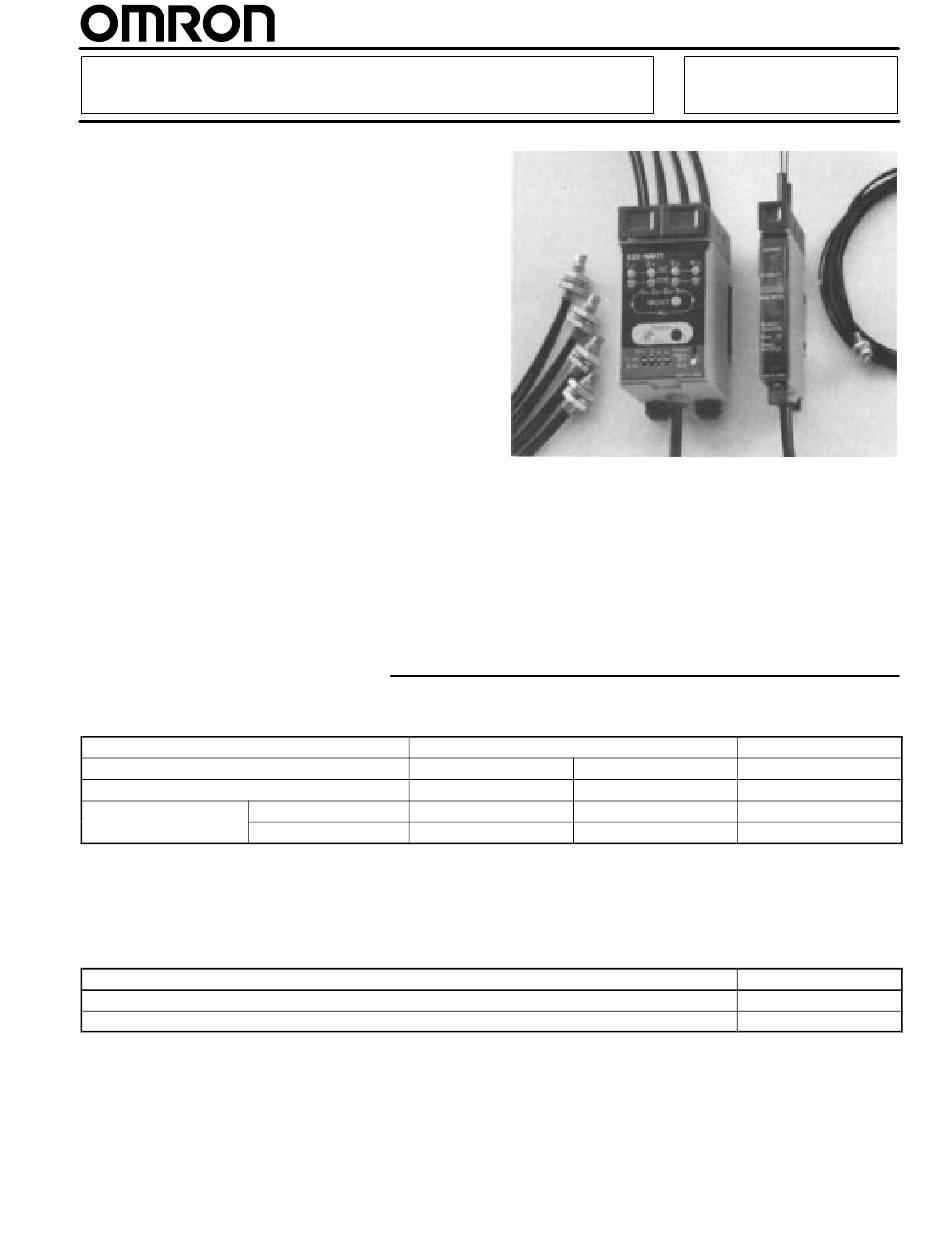

Auto-Tuning Fiber-Optic Sensor
High Performance DC Amplifier with
Pushbutton Sensitivity Adjustment
H
Maintenance is made easier with
pushbutton sensitivity adjustment
H
Sensing distance is up to 100% longer
than standard amplifiers
H
Choose either single channel or four
channel models
H
Compact housing: 32 mm and 10 mm
housing widths
H
Four amplifiers in a single housing
saves space and wiring
H
Four fiber-optic cables can be mounted
directly next to each other without
mutual interference
Ordering Information
J AMPLIFIERS
Type
Off-delay timer
Remote teach input
Part number
NPN output
PNP output
J FIBER-OPTIC CABLES
Please see the E32 Fiber-Optic Cables section.
J ACCESSORIES
Description
Replacement protective cover for E3X-NTjj
Replacement protective cover for E3X-NMjj
R
Single channel
None
None
E3X-NT11
E3X-NT41
E3X-N
Four channel
Provided
Provided
Provided
Provided
E3X-NT21
E3X-NM11
E3X-NT51
E3X-NM41
Part number
E39-G8
E39-G9

Advertisement

loading
Need help?

Need help?

Do you have a question about the E3X-N and is the answer not in the manual?

Questions and answers

Summary of Contents for Omron E3X-N

  • Page 1 Auto-Tuning Fiber-Optic Sensor E3X-N High Performance DC Amplifier with Pushbutton Sensitivity Adjustment Maintenance is made easier with pushbutton sensitivity adjustment Sensing distance is up to 100% longer than standard amplifiers Choose either single channel or four channel models Compact housing: 32 mm and 10 mm...
  • Page 2: Specifications

    E3X-N E3X-N Specifications Description General-purpose Multi-function Four-channel Part number E3X-NT11 E3X-NT21 E3X-NM11 E3X-NT41 E3X-NT51 E3X-NM41 12 to 24 VDC $10%, 10% ripple max. Supply voltage Current consumption 50 mA max. 150 mA max. Required fiber-optic cables Please see the E32 Fiber-Optic Cables section.
  • Page 3 E3X-N E3X-N J OUTPUT CIRCUIT DIAGRAMS E3X-NT11 E3X-NT21 Teaching indicator Teaching indicator Brown Brown (red/green) (red/green) Load Load Black Operation Stability Black Operation Stability indicator indicator indicator indicator Control Control (green) (green) 12 to (orange) (orange) output 12 to output...
  • Page 4: Operation

    E3X-N E3X-N Nomenclature E3X-NT11 (NPN) E3X-NM11 (NPN) E3X-NT21 (NPN) E3X-NM41 (PNP) E3X-NT41 (PNP) E3X-NT51 (PNP) Operation indicator (orange) Four operation Stability indicator (green) indicators (orange) Four stability Teaching indicator (red/green) indicators (green) Channel selector Teaching button Teaching button Mode selector...
  • Page 5 E3X-N E3X-N J MAXIMUM SENSITIVITY SETTING Note: The sensitivity of the E3X-NT and E3X-NM are set to maximum before shipping. When resetting the sensitivity of the E3X-NT or E3X-NM to maximum after no-object teaching or with/without-object teaching, follow the steps described below.
  • Page 6 E3X-N E3X-N J WITH/WITHOUT-OBJECT TEACHING Procedure Operation E3X-NT E3X-NM Locate the sensor head within the rated sensing range with the E3X-Nj. Set the mode selector to TEACH. TEACH TEACH TIMER The flashing function of the E3X-Nj will be activated. Therefore, adjust the optical axes so that the tip of the emitting fiber will be lit.
  • Page 7 E3X-N E3X-N J NO-OBJECT TEACHING Procedure Operation E3X-NT E3X-NM Locate the sensor head within the rated sensing range with the E3X-Nj. Set the mode selector to TEACH. TEACH TEACH TIMER The flashing function of the E3X-Nj will be activated. Therefore, adjust the optical axes so that the tip of the emitting fiber will be lit.
  • Page 8 E3X-N E3X-N J NO-OBJECT TEACHING With an Initial Operating Level Compensation Function With through-beam (Dark-ON) fiber cable 1. Set mode selector to TEACH. Press 2. The first sensing object is in the sensing area. teaching button for 0.5 to 2.5S without a sensing object.
  • Page 9 E3X-N E3X-N J REMOTE TEACHING FUNCTION The remote teaching function of the E3X-Nj should be used for initial teaching. The method of remote teaching is the same as that of sensitivity setting. In remote teaching, instead of pressing the teaching button, teaching is performed with a remote teaching input signal.
  • Page 10 E3X-N E3X-N J OPTICAL AXIS ADJUSTMENT (FLASHING FUNCTION) This function can be used with through-beam (E32-Tj) or retroreflective (E32-Rj) fiber cables. Its main purpose is to achieve the maxi- mum gain. If the customer finds difficulty in this method or maximum gain is not required, align the cables in RUN mode (as normal) using the output indicator as an indicator for alignment.
  • Page 11 E3X-N E3X-N Dimensions Unit: mm (inch) J AMPLIFIER E3X-NT11 E3X-NT21 The mounting bracket can Operation indicator Stability indicator be attached to this side. E3X-NT41 E3X-NT51 Fiber cable lever lock 18.3 59 (2.32) (0.39) Two, 2.4 dia. 32.5 (1.28) 10.75 10.7 22.4...
  • Page 12 E3X-N E3X-N E3X-NM11 Operation indicator Stability indicator The mounting bracket can E3X-NM41 be attached to this side. Vinyl insulated round cable: 2 m (6.56 ft), 4 mm OD 10.8 21.4 32.2 (1.27) 59 (2.32) Eight, 2.4 dia. 32.5 (1.30) (1.28) 10.7...
  • Page 13: Installation

    Installation 2. Disconnection J FIBER CABLE INSTALLATION E3X-NT The E3X-N fiber amplifier has a snap-locking system. Connect or Remove the protective cover, raise the lock lever, and then pull disconnect the fibers, according to the following procedures: out the fiber.
  • Page 14 Always run wiring of the sensor in separate or dedicated conduit. NOTE: DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters to inches divide by 25.4. OMRON ELECTRONICS, INC. OMRON CANADA, INC. One East Commerce Drive...

This manual is also suitable for:

E3x-nt11E3x-nt21E3x-nm11E3x-nt41E3x-nt51E3x-nm41
