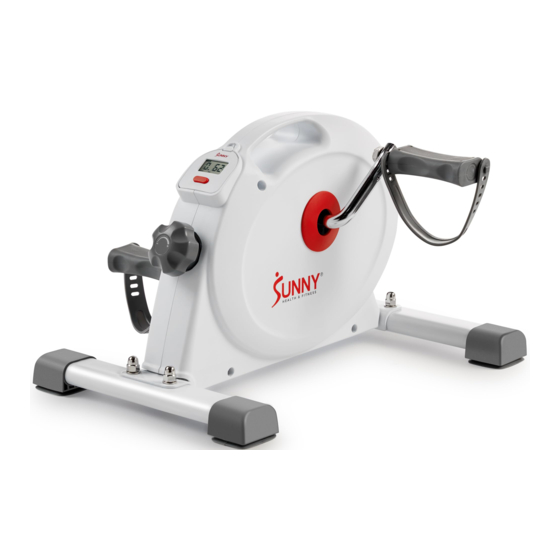

UNDER DESK SMART MINI
EXERCISE BIKE (WHITE)
SF-B023005WHT
USER MANUAL
DO NOT STAND ON THE UNIT.
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunny Health & Fitness SF-B023005WHT
Summary of Contents for Sunny Health & Fitness SF-B023005WHT
- Page 1 UNDER DESK SMART MINI EXERCISE BIKE (WHITE) SF-B023005WHT USER MANUAL DO NOT STAND ON THE UNIT. IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Description Spec Qty. Main Frame Front Stabilizer Rear Stabilizer Left Pedal 24R Right Pedal Battery AAA, 1.5V Thank You Card Manual Hardware Package... -
Page 4: Hardware Package
HARDWARE PACKAGE #34 S13-S14-S15 1PC #14 M8*38 4PCS #22 ID8.2*OD16*1.5 4PCS #35 S17-S19 1PC #12 M8 4PCS Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: #14 M8*38 4PCS Attach Rear Stabilizer (No. 4) to the Main #22 ID8.2*OD16*1.5 4PCS Frame (No.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 2: #13L "-20 1PC NOTE: The Left & Right Pedals (No. 24L & No. 24R) are marked “L” and “R” for Left #13R "-20 1PC and Right.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 3: 24L-1 Insert the fixing hole (36-1) of the Pedal Strap (No. 36) into the groove (24L-1) of the Left Pedal (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Insert the fixing hole (36-1) of the Pedal Strap (No. 36) into the groove (24R-1) of the Left Pedal (No.
-
Page 9: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERIES BATTERIES BATTERY INSTALLATION: 1. Take out 2 AAA batteries from the manual bag. 2. Remove the Meter (No. 31) from Main Frame (No. 1). Then disconnect the Sensor Wire (No. 32) from the Meter (No. 31). 3. -
Page 10: Key Guide
EXERCISE METER KEY GUIDE: MODE: 1. Press the Mode key to select the function you want. 2. Press and hold the key for 3 seconds to reset the value to zero (without resetting TOT). FUNCTIONS: TMR (TIME): Press the key until "TMR" is displayed on the screen, the meter will display the time elapsed during exercise. - Page 11 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE TENSION Adjust the tension by rotating the Tension Control Knob (No. 28) clockwise to increase the level of resistance. Rotate the Tension Control Knob (No. 28) counter-clockwise to decrease the level of resistance. NOTE: The Tension Control Knob (No. 28) can be stepless adjustment, just turn it clockwise to the end or counter- clockwise to the end.
-
Page 12: App Connection
APP CONNECTION: 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3. -
Page 13: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Screw ST4.2*15 Crank Arm Screw ST4.2*13 Front Stabilizer Flat Washer ID8.2*OD16*1.5 Rear Stabilizer Left Belt Cover Adjusting Plate Right Belt Cover Fixing Plate Left Pedal Belt Wheel Right Pedal Spring End Cap 25*50 φ55*5... -
Page 14: Exploded Diagram
EXPLODED DIAGRAM S13-S14-S15 S17-S19 Version: 1.0...
