Summary of Contents for Sunny Health & Fitness SF-B0419

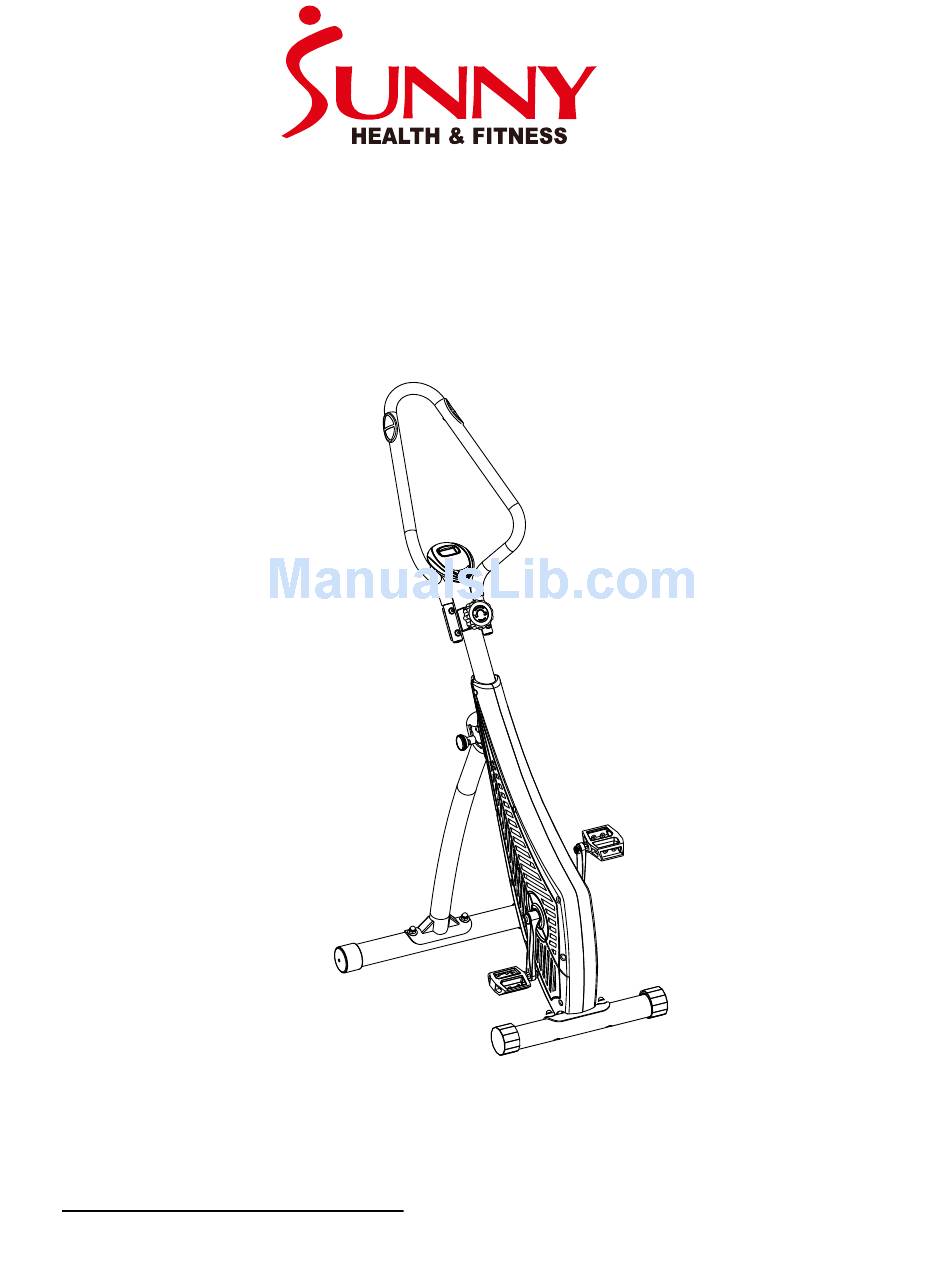

- Page 1 MAGNETIC CYCLING TRAINER SF-B0419 USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Exploded Drawing
EXPLODED DRAWING... -
Page 4: Parts List
PARTS LIST PART DES. PARTS DES. Cap Nut Handle Bar Washer Front Screw Stabilizer Bolt Washer Left Pedal Meter Nut (for Left Screw Pedal) Left Crank Tension Knob Right Pedal (for Right Pedal) Right Crank Main Frame Rear Stabilizer Adjust Knob Allen Cover Wrench... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP: 1 Loosen and remove the Adjustment Knob (No. 21) and unfold the Main Frame (No. 8) then re-insert and tighten the Adjustment Knob (No. 21). Attach the Front and Rear Stabilizers (No. 12 and No. 20) to the Main Frame (No. 8) using 4 Bolts (No. 13), 4 Washers (No. - Page 6 STEP: 2 Attach the Handlebar (No. 1) to the Main Frame (No. 8) using 4 Screws (No. 2), 4 Washers (No. 3) and 4 Nuts (No. 6), tighten using Allen Wrench (A) and Spanner (B). STEP: 3 Insert the Meter Wires (4-1 and 4-2) through the hole of the meter bracket located along the top end of the Main Frame (No.
- Page 7 STEP: 4 Connect the Left and Right Pedals (No. 14 14 and No. 17) onto the Left and Right Crank Arms (No. 16 and No. 19). (Before you begin, immobilize the crank arms by turning the tension knob all the way to the right). Left Pedal: Align the Left Pedal (No.
-
Page 8: Exercise Computer
EXERCISE COMPUTER SPECIFICATIONS: TIME…………………………………………………..00:00-99:59 Min/Sec. SPEED………………………………………………... 0.0-99.9 ML/H DISTANCE…………………………………………..0.00-999.9 ML ODOMETER…………………………………………. 0-9999ML PULSE………………………………………………... 40-240BPM CALORIES…………………………………………… 0-9999KCAL KEY FUNCTIONS: MODE: Press to select function. (Time, Speed, Distance, Odometer, Pulse, Calories). -Press and hold the mode button for three seconds to reset time, distance and calories. COUNTDOWN FUNCTION: The values of Time, Distance and Calories can be set to countdown. -
Page 9: Operation And Maintenance
OPERATION & MAINTENANCE OPERATING INSTRUCTIONS: 1. Please read all instructions before attempting to assemble the equipment. While assembling and during the use of the equipment, please make sure to follow all instructions carefully, any improper techniques of use and/or assembly may result in injury and/or damage to the equipment. -
Page 10: Folding Instructions
FOLDING INSTRUCTIONS FOLDING THE BIKE: To fold the bike, remove the Adjustment Knob (No. 21) from the Main Frame (No. 8). Next, push the front and rear stabilizer bars inward towards each other until the bike is completely folded. Re-insert the Adjustment Knob (No. 21) to secure the bike in the folded position.
