Magnetic Mini Exercise Pedal Cycle
SF-B020026
USER MANUAL
DO NOT STAND ON THE UNIT.
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunny Health & Fitness SF-B020026
Summary of Contents for Sunny Health & Fitness SF-B020026

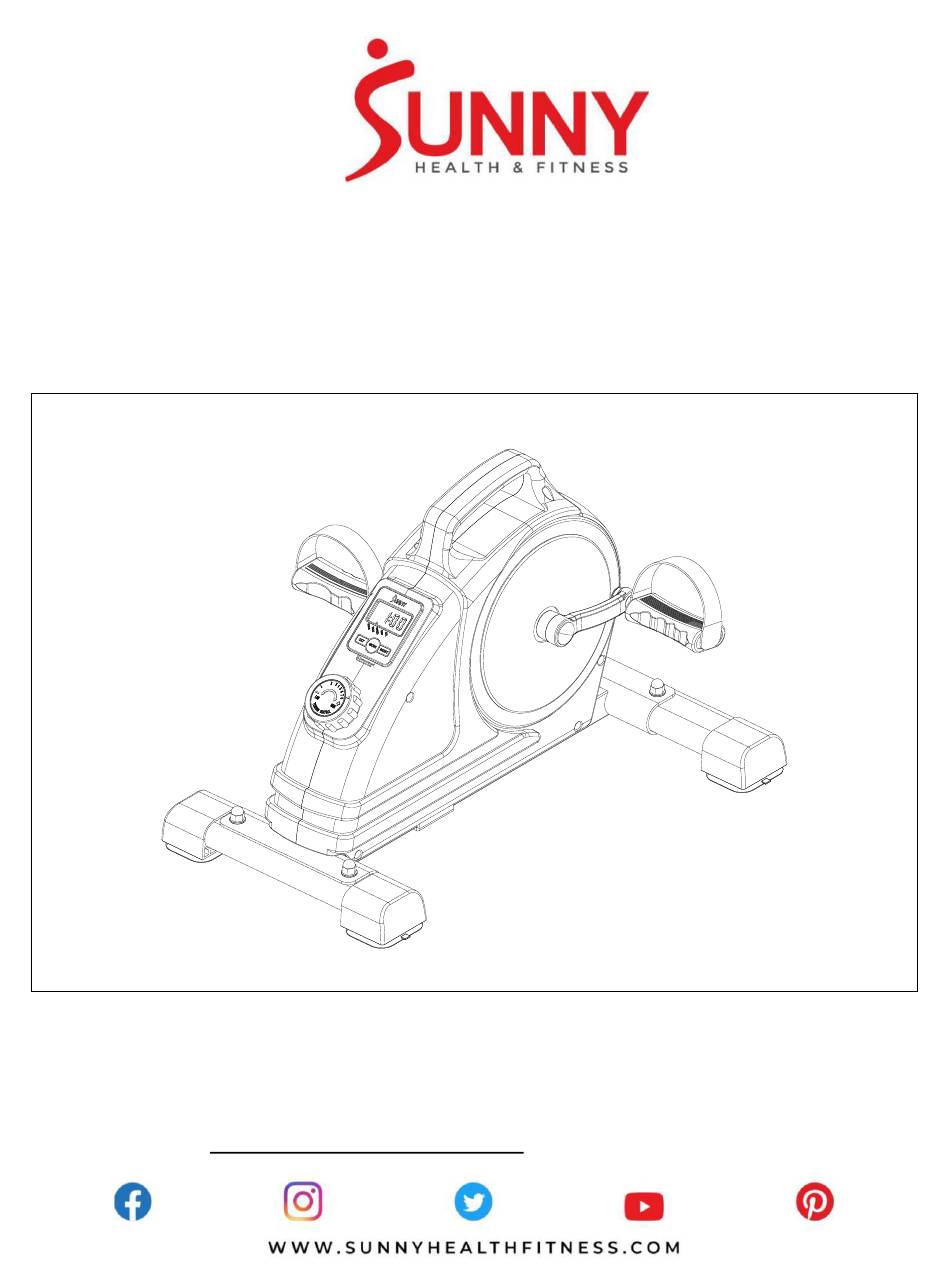

- Page 1 Magnetic Mini Exercise Pedal Cycle SF-B020026 USER MANUAL DO NOT STAND ON THE UNIT. IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM #48 S13-S14-S15 1PC #49 S17-S19 1PC HARDWARE PACKAGE... -
Page 4: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame End Cap Spindle High Cap Nut 3L/R Crank Bolt M6*15 Magnetic Board Nylon Nut Idler Wheel Shaft Belt Wheel Axle for Crank Belt J300 7L/R Pedal C-clip 8L/R Belt Cover Bearing 6003 Tension Control Knob... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: Attach Rear Stabilizer (No. 14) to the Main Frame (No. 1) with 2 Carriage Bolts (No. 21), 2 Washers (No.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 2: NOTE: The Pedals (No. 7L & No. 7R) are marked “L” and “R” for Left and Right. WARNING! Read instructions carefully as improper assembly may cause permanent damage to your bike.
-
Page 7: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY BATTERY BATTERY INSTALLATION: 1. Take out 1AAA battery from the manual bag. 2. Remove the Meter (No. 10) from Main Frame (No. 1). Then disconnect the link wire of Inductor (No. 38) with the Meter (No. 10). 3. -
Page 8: Specifications
EXERCISE METER SPECIFICATIONS: SPEED-------------------------------------------0.0~999.9MPH (Mile/Hour) TIME----------------------------------------------0:00~99:59MIN DISTANCE--------------------------------------0.0~9999M (Mile) CALORIES--------------------------------------0.0~9999KCAL FUNCTION KEYS: MODE: Push down for selecting functions. If the long time holds down MODE button down for resetting time, distance and calories. SET: To set the values of time, distance and calories when not in scan mode. RESET: Push down for resetting time, distance and calories. - Page 9 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE TENSION Adjust the tension by rotating the Tension Control Knob (No. 9) clockwise to increase the level of resistance. Rotate the Tension Control Knob (No. 9) counterclockwise to decrease the level of resistance. Tension levels are set at Level 1 being the lowest and Level 8 being the highest.
