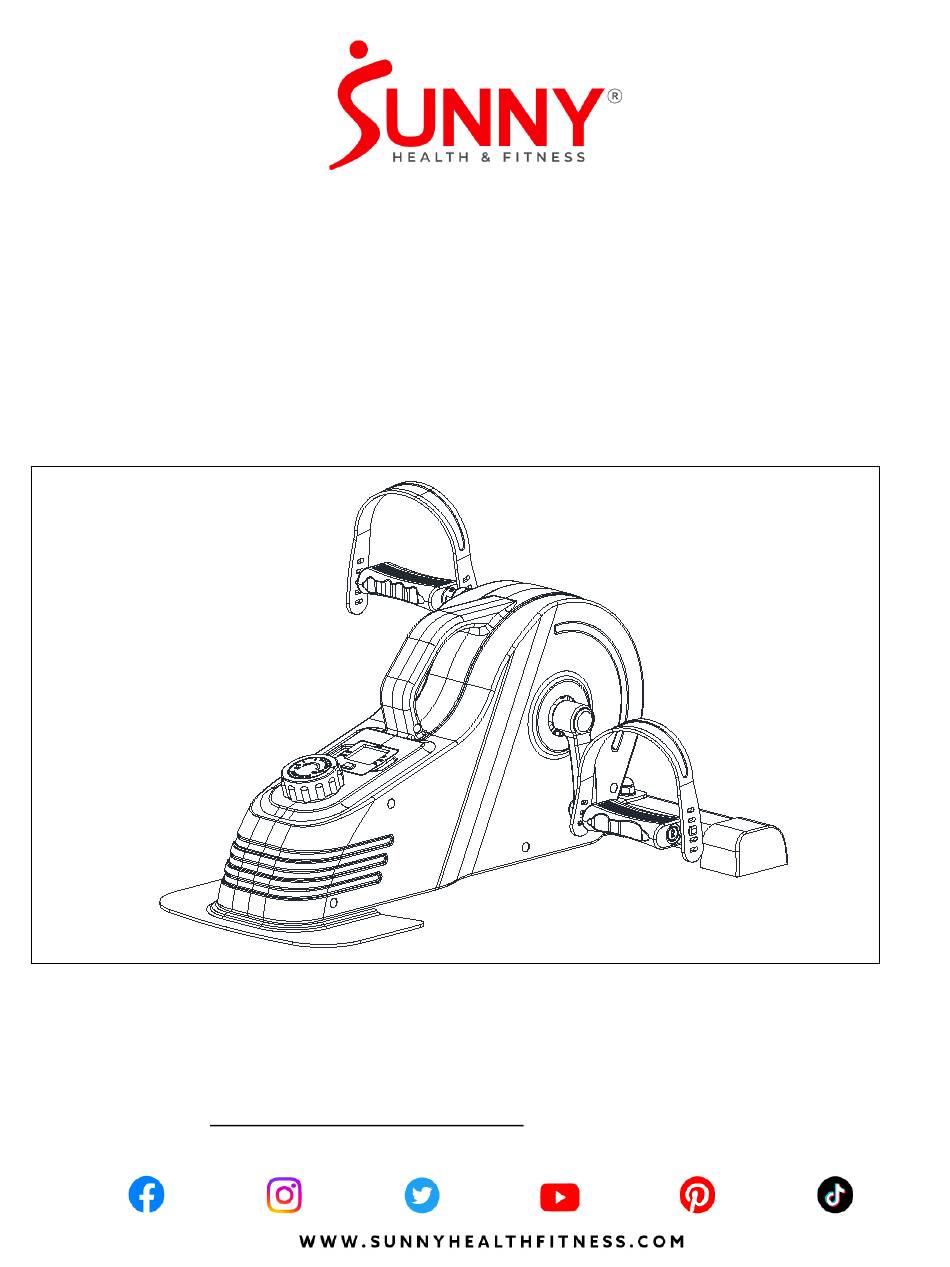

SMART UNDER DESK MAGNETIC
EXERCISE BIKE
SF-B0891 SMART
USER MANUAL
DO NOT STAND ON THE UNIT!
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART SF-B0891 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny Health & Fitness SMART SF-B0891

Summary of Contents for Sunny Health & Fitness SMART SF-B0891

  • Page 1 SMART UNDER DESK MAGNETIC EXERCISE BIKE SF-B0891 SMART USER MANUAL DO NOT STAND ON THE UNIT! IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST Description Spec. Qty. Description Spec. Qty. Main Frame Front Stabilizer Hardware Package Left Pedal Thank You Card Right Pedal User Manual Rear Fixed Bottom Plate...

  • Page 4: Hardware Package

    HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed:  The model number (found on cover of manual)  The product name (found on cover of manual) ...
  • Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: #15 M6*16 3PCS Attach Rear Fixed Bottom Plate (No. 14) to the Main Frame (No. 1) with 3 Bolts (No. 15). Tighten and secure with Spanner (No.
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 3: NOTE: The Left & Right Pedals (No. 7L & No. #50R 1/2"-20 1PC 7R) are marked “L”...
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 4: 7L-1 Insert the fixing hole (#53-1) of the Pedal Strap (#53) into the card slot (#7L-1) of the Left Pedal (#7L).
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Insert the fixing hole (#53-1) of the Pedal Strap (#53) into the card slot (#7R-1) of the Right Pedal (#7R).

  • Page 9: Battery Replacement

    BATTERY REPLACEMENT BATTERY BATTERY (CR2032 ） BATTERY SEAT WIRE INSERTING HOLE 1. Remove the Meter (No. 10) from Main Frame (No. 1). Then disconnect the Sensor Wire (No. 38) from the Meter (No. 10). 2. Remove the old battery from the battery seat. 3.

  • Page 10: Function Keys

    EXERCISE METER SPECIFICATIONS: SP(SPEED)-----------------------------------0.0~999.9 MPH (Mile/Hour) TIME--------------------------------------------0:00~99:59 MIN DIST (DISTANCE)--------------------------0.0~9999 M (Mile) CAL (CALORIES)---------------------------0.0~9999 KCAL FUNCTION KEYS: MODE: Press the red key repeatedly to select the desired value (TIME, SP, DIST, CAL, SCAN). Hold the key for 4 seconds to have all function values reset (total reset). FUNCTIONS: SP(SPEED): Displays current speed.

  • Page 11: Adjusting The Tension

    ADJUSTMENTS & USAGE GUIDE ADJUSTING THE TENSION Adjust the tension by rotating the Tension Control Knob (No. 9) clockwise to increase the level of resistance. Rotate the Tension Control Knob (No. 9) counter- clockwise to decrease the level of resistance. Tension levels are set at Level 1 being the lowest and Level 8 being the highest.

  • Page 12: App Connection

    APP CONNECTION: Connect Smart Equipment to SunnyFit App: 1. Scan to download SunnyFit from the app store: 2. Ensure that the Bluetooth function is turned on from your mobile device. 3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in.

  • Page 13: Parts List

    PARTS LIST Description Spec. Description Spec. Main Frame High Cap Nut Spindle Bolt M6*15 Left Crank Nylon Nut φ200*20 Right Crank Belt Wheel Magnetic Board Belt J300 φ17 Idler Wheel Shaft C-clip Axle for Crank Bearing 6003 Left Pedal Screw M5*15 φ8.2*φ16*1.5 Right Pedal...

  • Page 14: Exploded Diagram

    EXPLODED DIAGRAM 23 4 Version 1.0...
