INSTALLATION MANUAL

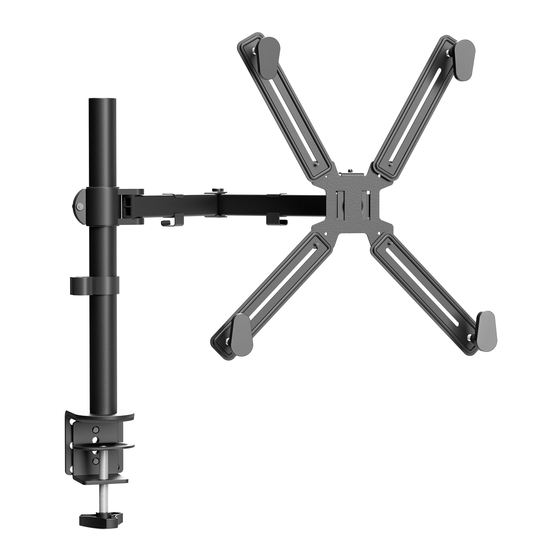

Single Monitor Desk Mount
with Bracket Adapter
M001U
Supplied Parts List
Pole C-Clamp C-Clamp Brace
a (x1) b (x1) c (x1)
M10 Washer Spring Washer Grommet Base Plate
k (x1) l (x1) m (x1)
1
Option A : Clamp Installation
a c
Connect Pole a and C-Clamp Brace c from the bottom using M5x14 Bolt f and tighten with
o
Allen Key 3mm o .
Select the preferred height according to your desk thickness. Connect C-Clamp b to C-Clamp
c g o
Brace c using M8x12 Bolt g and tighten with Allen Key 5mm o . Rotate the hand knob
clockwise to fasten for stability.
a
b
f
o
c
Hand Knob
www.walielectric.com
support@walielectric.com
1-844-SATTLER (18447288537)
Swivel Arm VESA Plate M5x14 Bolt
d (x1) e (x1) f (x3)
Wire Clip Wire Clip Allen Key
n1 (x1) n2 (x2) o (x1)
Option B : Grommet Base Installation
f
1.
b a
Place Pole a onto Grommet Base Plate m . Connect
them from the bottom using M5x14 f Bolt and tighten
with Allen Key 3mm o . o
c
g
f
o
o
WARNING
！
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect
assembly or inappropriate use.
TIPOVER WARNING
！
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.
● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.
SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
M8x12 Bolt Nut M10 Bolt
g (x2) h (x1) i (x1)
Wrench M4x12 Bolt M4x30 Bolt
p (x1) q (x4) r (x4)
2a. Existing Grommet Hole Installation
m
If the existing grommet hole comes with a plastic protector, remove it to ensure a flat
f surface before installing the desk mount. Position the Pole a on the mounting surface
j
and secure using the Support Plate j , M10 Washer k , Spring Washer l , and M10
Bolt i . Fasten the Bolt using the provided Wrench p . i
a
a
m
j
k
l
i
Support Plate
Bracket Connector
j (x1)
① (x4) ② (x4)
M4 Spacer M6X60 M6X40
s (x4) B (x4) C (x4)
2b. Self-drilled Grommet Hole Installation
Mark the position of the hole on your mounting surface. Drill a 3/8" (10mm) diameter hole
a
at the marked position through the mounting surface. Position the Pole a on the mounting
k l surface and secure using the Support Plate j , M10 Washer k , Spring Washer l , and
p
M10 Bolt i . Fasten the Bolt using the provided Wrench p . i
a
p
k
l
i
Cover M6X80
③ (x4) A (x4)
(x8) (x8) (x1)
D E
a
j
k l
p
ø 10mm
(ø 3/8 ")
j
p
