Sector25CR Sub250g
FPV Racing Drone
Manual
1
www.hglrc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sector25CRSub250g and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HGLRC Sector25CRSub250g

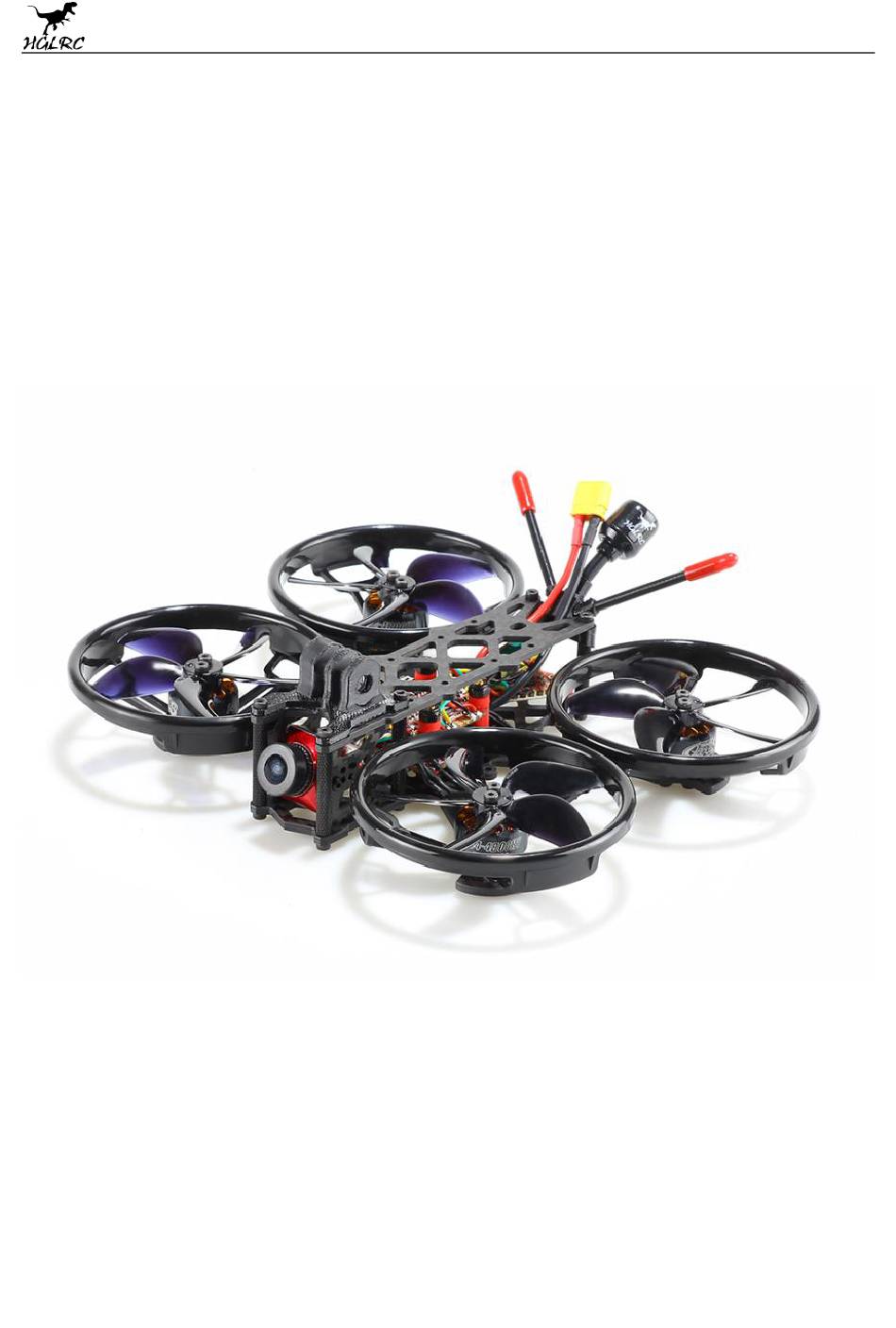

  • Page 1 Sector25CR Sub250g FPV Racing Drone Manual www.hglrc.com...
  • Page 2: Table Of Contents

    Choose ESC protocol..........................7 Voltage parameters setting........................8 Setting up the receiver..........................9 VTX serial port use. DJI serial port use....................10 Check receiver signal..........................11 Select flight mode startup mode......................12 OSD settings..............................13 LED settings..............................14 Troubleshooting............................15 Package IncIuded Sector25CR Sub250g FPV Racing Drone *1 Accessory Bag*1 www.hglrc.com...
  • Page 3: Product Specifications

    1.Product Specifications Product parameters Model Sector25CR Sub250g FPV Racing Drone Frame Kit Sector25CR FPV Freestyle Frame Kit Flight Controller Zeus25 AIO Flight Controller CADDX Nebula 1404Motor Motor 4S KV3600 Support receiver SBUS .DSMX.i.BUS Input Voltage 3-6S Lipo Weight 145.92g www.hglrc.com...
  • Page 4: Interface Description

    2.Interface Description 3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver www.hglrc.com...
  • Page 5 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode , 5. Click Select firmware version www.hglrc.com...
  • Page 6: Calibration Accelerometer

    6.Click It will be prompted upon completion 7.open betaflight configurator 。Controller plugged into the computer. Betaflight Automatically assigned port,click “Connect” Enter setup interface(Different computer COM) 4.Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again www.hglrc.com...
  • Page 7: Uart Serial Port Use

    3.UART3 uses VTX/DJI 4.UART4 uses WiFi module 5.UART6 uses ESC telemetry 6.Select aircraft model Select model Click I understand the risks 2.Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite “ ” www.hglrc.com...
  • Page 8: Choose Esc Protocol

    7.Choose ESC protocol 1.Choose the right ESC protocol, the optional universal protocol DSHOT600. www.hglrc.com...
  • Page 9 8. Voltage and current parameters setting 1.Click Setting parameters www.hglrc.com...
  • Page 10: Setting Up The Receiver

    9.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART1 Open the receiver serial port “ ” www.hglrc.com...
  • Page 11 3.Set the SBUS receiver 4.Set the i.BUS receiver 5.Set the DSMX receiver .Set the CRSF receiver www.hglrc.com...
  • Page 12 10.VTX serial port use wiring . DJI serial port use wiring 1. VTX connection 2. DJI FPV Air Unit wiring www.hglrc.com...
  • Page 13 4. DJI serial port opens 5.Use OSD to adjust VTX which displays information like battery voltage and mAh consumed while you fly. In addition, the Betaflight OSD can be used to configure the quadcopter, making in-field adjustments and tuning more convenient. MODE2 MODE1 www.hglrc.com...
  • Page 14 The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. www.hglrc.com...
  • Page 15: Check Receiver Signal

    11.Check receiver signal Check the remote control output signal 1.Click 12.Select flight mode startup mode set up the function of remote control switch across the Click channel (below are for reference only) www.hglrc.com...
  • Page 16: Osd Settings

    13.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. 14.LED settings Click Turn on LED support www.hglrc.com...
  • Page 17: Troubleshooting

    ● Keep focus on the polarity. Check carefully before power supply. ● Cut off the power when you connect, plug and pull anything. ● The refresh rate of PID and Gyroscope is up to 8K/8K. www.hglrc.com...
  • Page 18 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
