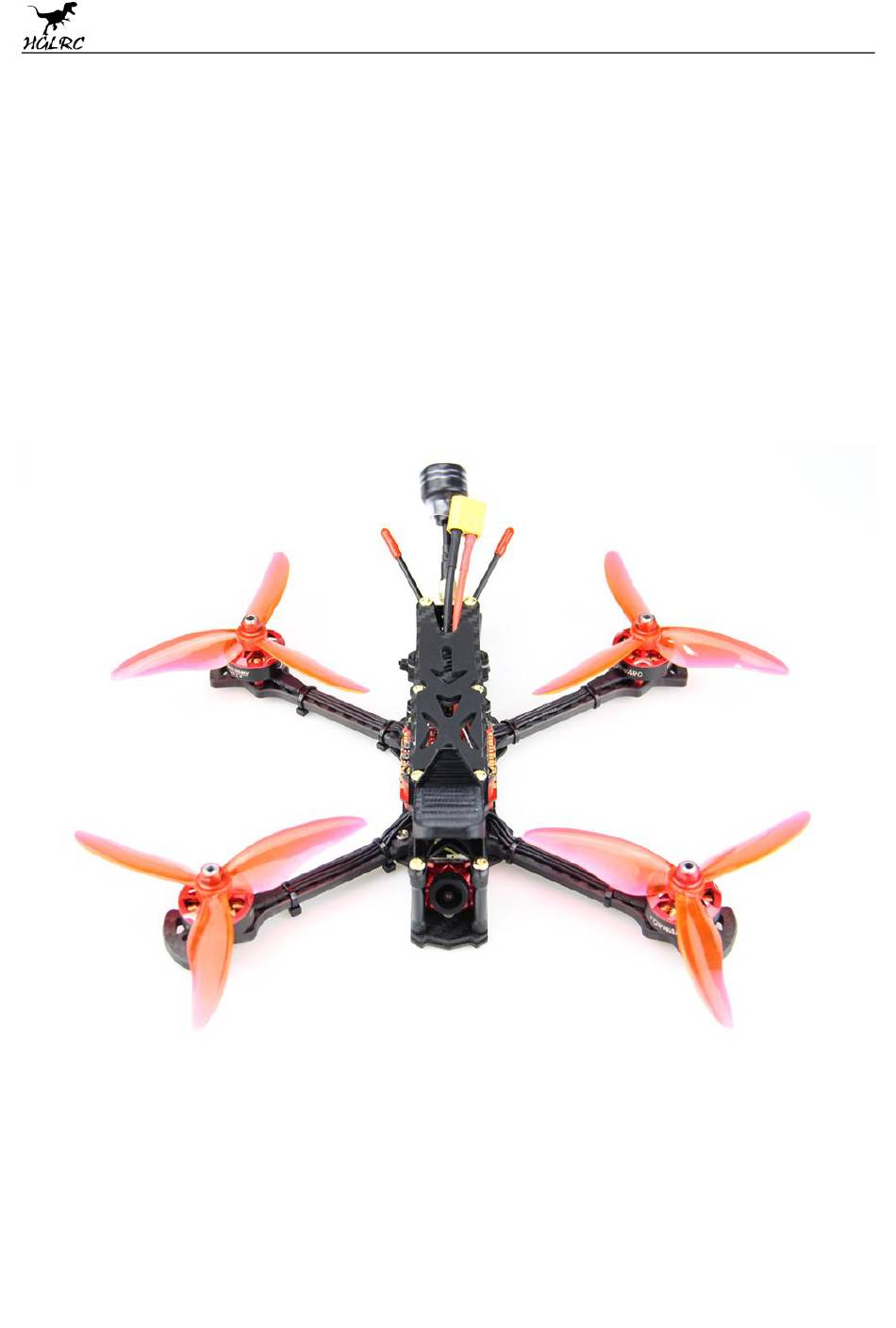

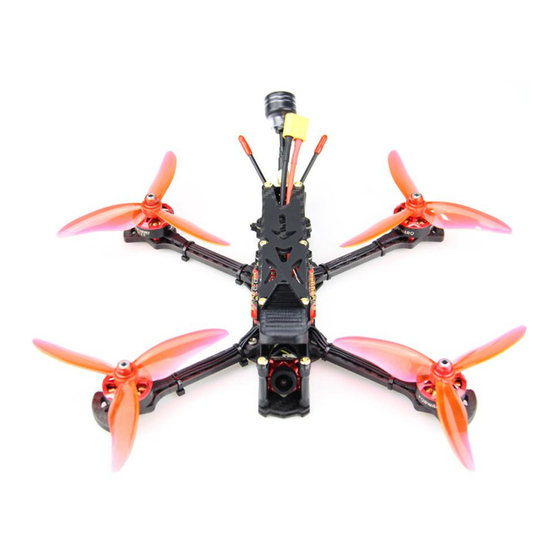

- Page 1 Sector 5 V2 FPV Racing Drone Manual www.hglrc.com...
-
Page 2: Table Of Contents
Voltage and current parameters setting....................8 Setting up the receiver..........................9 VTX uses OSD smart audio........................10 GPS parameters setting...........................11 Check receiver signal..........................12 Select flight mode startup mode......................13 OSD settings..............................14 LED settings..............................15 Troubleshooting............................16 ..................Package IncIuded Accessory Package*1 Sector 5 V2 FPV Racing Drone*1 www.hglrc.com... -
Page 3: Product Specifications
1.Product Specifications Product parameters Model FPV Racing Drone Frame Kit Sector 5 V2 Frame Kit Flight Controller Forward F722 Flight Controller Forward 60A 4in1 ESC Forward MT VTX 800MW Camera Caddx Ratel Camera Forward 2306 Motor Motor 4S KV2450 6S KV1600 Support Neceiver SBUS .PPM .DSMX... -
Page 4: Interface Description
2.Interface Description www.hglrc.com... -
Page 5: Check The Flight Control Drive
2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode It is recommended to use the latest Betaflight version） ， （ www.hglrc.com... - Page 6 5.Click Select firmware version 6.Click Load firmware Waiting for completion It will be prompted upon completion 7.open betaflight configurator 。Controller plugged into the computer. Betaflight Automatically assigned port，click “Connect” Enter setup interface（Different computer COM） www.hglrc.com...
-
Page 7: Calibration Accelerometer
4. Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again 5.URAT serial port use 1.URAT1 uses the receiver 2.URAT2 3.URAT3 uses VTX image transmission 4.URAT4 uses GPS 5.URAT6 uses ESC telemetry www.hglrc.com... -
Page 8: Select Aircraft Model
6.Select aircraft model Select model Click I understand the risks Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite32 “ ” www.hglrc.com... -
Page 9: Choose Esc/Motor Protocol
1. Choose the correct ESC / Motor protocol, Protocol DSHOT1200 is recommended for Wind5 Hybrid racing drone 2.Open ESC telemetry serial port.TX on the ESC needs to be connected to the RX6 on the flight controller to use the ESC telemetry 3.View telemetry data on OSD www.hglrc.com... -
Page 10: Voltage And Current Parameters Setting
8.Voltage and current parameters setting Click Setting parameters www.hglrc.com... -
Page 11: Setting Up The Receiver
9.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART1 Open the receiver serial port “ ” www.hglrc.com... -
Page 12: Vtx Uses Osd Smart Audio
3.Set the SBUS receiver 4.Set the PPM receiver 5.Set the DSMX receiver 10.VTX uses OSD smart audio 1.VTX connection diagram www.hglrc.com... - Page 13 4.Use OSD to adjust VTX which displays information like battery voltage and mAh consumed while you fly. In addition, the Betaflight OSD can be used to configure the quadcopter, making in-field adjustments and tuning more convenient. MODE2 MODE1 www.hglrc.com...
- Page 14 When a parameter can be modified, the parameter’s current value will be shown on the right-hand side of the screen. In this case, roll left/right will adjust the parameter up and down. The screen to the right shows the current vTX settings. From www.hglrc.com...
-
Page 15: Gps Parameters Setting
“Set” and press roll-right to confirm the settings. 11.GPS parameters setting 1. GPS connection diagram 2. Open the GPS serial port 3.When using the GPS function, remember to configure the serial port (via the Ports tab). www.hglrc.com... -
Page 16: Check Receiver Signal
12.Check receiver signal Check the remote control output signal 1.Click 13.Select flight mode startup mode www.hglrc.com... -
Page 17: Osd Settings
(below are for reference only) 14.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. 15. LED settings Click Turn on LED support 2.Click Click set according to need www.hglrc.com... -
Page 18: Troubleshooting
(LED status light is always on) 4.Blinking mode Steady / Fast Flash / Breathing Light / Colorful Slow Flash LED light can be controlled via CH5(AUX1) of transmitter with Channel_Forwarding enabled. Click enter： resource servo 1 A08 SAVE 16.Troubleshooting Warning: www.hglrc.com... - Page 19 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. Product daily problems 1.OSD garbled: If you find garbled characters, please open Betaflight, click “OSD” .and click “Font Manager” clicks on “Upload Font” to update www.hglrc.com...
- Page 20 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
