Summary of Contents for HGLRC Rekon6 LR

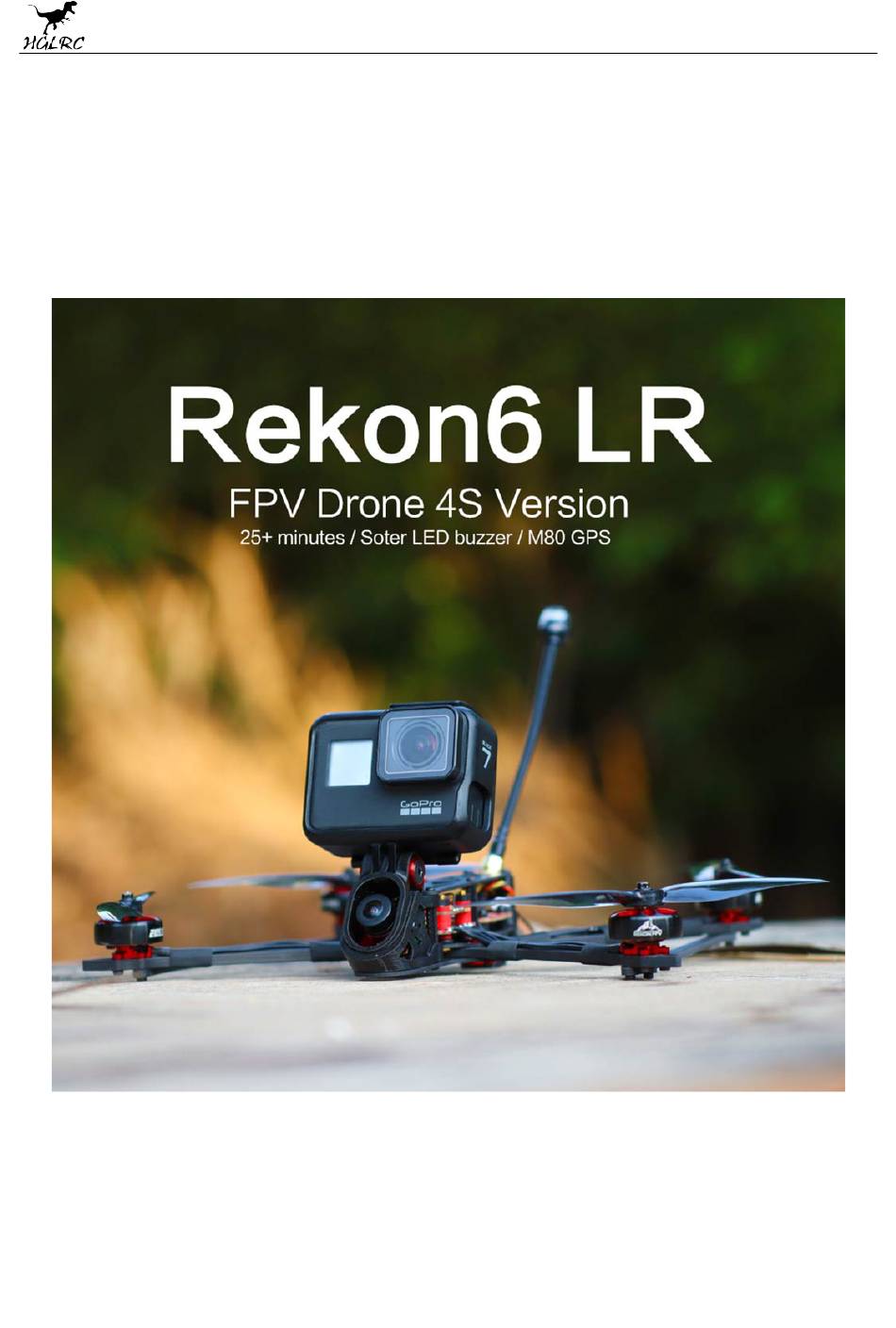

- Page 1 Rekon6 LR FPV Racing Drone Manual www.hglrc.com...
-
Page 2: Table Of Contents
Choose ESC protocol..........................7 Select ESC telemetry..........................8 Voltage and current parameters setting.....................9 Setting up the receiver..........................10 VTX serial port use. DJI serial port use....................11 GPS parameters setting...........................12 Check receiver signal..........................13 Select flight mode startup mode......................14 OSD settings..............................15 LED settings..............................16 Troubleshooting............................1 ..................www.hglrc.com... -
Page 3: Product Specifications
Package IncIuded Rekon6 LR FPV Racing Drone*1 Accessory Package*1 1.Product Specifications Product parameters Rekon6 LR VTX FPV Racing Model Drone Frame Kit Rekon6 LR Frame Kit Flight Controller Zeus F722 mini Flight Controller 28A 4in1 ESC Zeus VTX 800mW 2105.5 Motor... -
Page 4: Interface Description
2.Interface Description www.hglrc.com... -
Page 5: Check The Flight Control Drive
1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode ， 5.Click Select firmware version www.hglrc.com... -
Page 6: Calibration Accelerometer
It will be prompted upon completion 7. open betaflight configurator Controller plugged into the Betaflight Automatically assigned port click “Connect” computer. Enter setup interface（Different computer COM） ， 4. Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again www.hglrc.com... -
Page 7: Uart Serial Port Use
5.UART serial port use 1.UART1 uses the receiver 2.UART2 uses GPS 3.UART3 uses 5.8G VTX 4.UART4 uses DJI 5.UART6 uses ESC telemetry 6.Select aircraft model Select model Click www.hglrc.com... -
Page 8: Choose Esc Protocol
I understand the risks Push Master to check motor Click Click “ ” steering Master Steering can be changed at BLHeliSuite “ ” 7.Choose ESC protocol 1.Choose the right ESC protocol, the optional universal protocol DSHOT600. www.hglrc.com... - Page 9 8.Turn on ESC telemetry 1.Use BLHeli_32 ESC telemetry over a separate wire 2.Open ESC telemetry serial port.TX on the ESC needs to be connected to the RX6 on the flight controller to use the ESC telemetry 3.View telemetry data on OSD www.hglrc.com...
-
Page 10: Voltage And Current Parameters Setting
9.Voltage and current parameters setting Setting parameters 1.Click 10.Setting up the receiver 1.Receiver connection diagram www.hglrc.com... - Page 11 UART1 Open the receiver serial port 2.Click “ ” 3.Set the SBUS receiver www.hglrc.com...
- Page 12 4.Set the DSMX receiver 5.Set the CRSF receiver 11. VTX serial port use wiring . DJI serial port use wiring 1. 5.8G VTX connection www.hglrc.com...
- Page 13 2. DJI FPV Air Unit wiring www.hglrc.com...
- Page 14 4. DJI serial port opens 5.Use OSD to adjust VTX which displays information like battery voltage and mAh consumed while you fly. In addition, the Betaflight OSD can be used to configure the quadcopter, making in-field adjustments and tuning more convenient. MODE2 MODE1 www.hglrc.com...
- Page 15 The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. www.hglrc.com...
-
Page 16: Gps Parameters Setting
12.GPS parameters setting 1.GPS connection diagram 2.Open the GPS serial port 3.When using the GPS function, remember to configure the serial port (via the Ports tab). www.hglrc.com... -
Page 17: Check Receiver Signal
13.Check receiver signal Check the remote control output signal 1.Click 14.Select flight mode startup mode set up the function of remote control switch across the 1.Click channel (below are for reference only) www.hglrc.com... -
Page 18: Osd Settings
15.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. 16. LED settings 1.Click Turn on LED support 2.Click Click set according to need www.hglrc.com... -
Page 19: Troubleshooting
If you find garbled characters, please open Betaflight, click “OSD” .and click “Font Manager” clicks on “Upload Font” to update When plugged in the battery, the aircraft does not pass the self-test without "BBB" sound. There is only one sound. www.hglrc.com... - Page 20 Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
