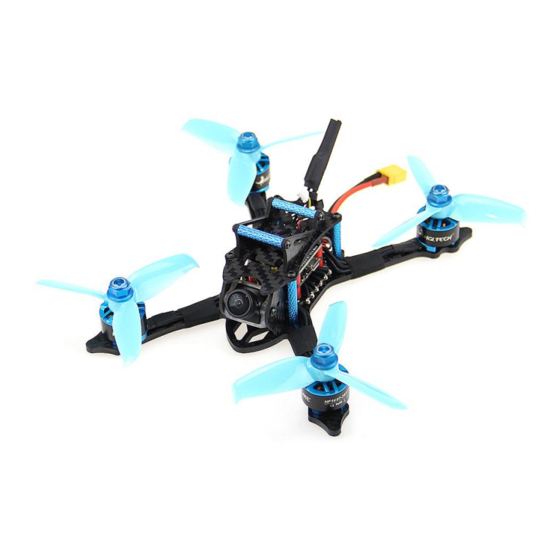

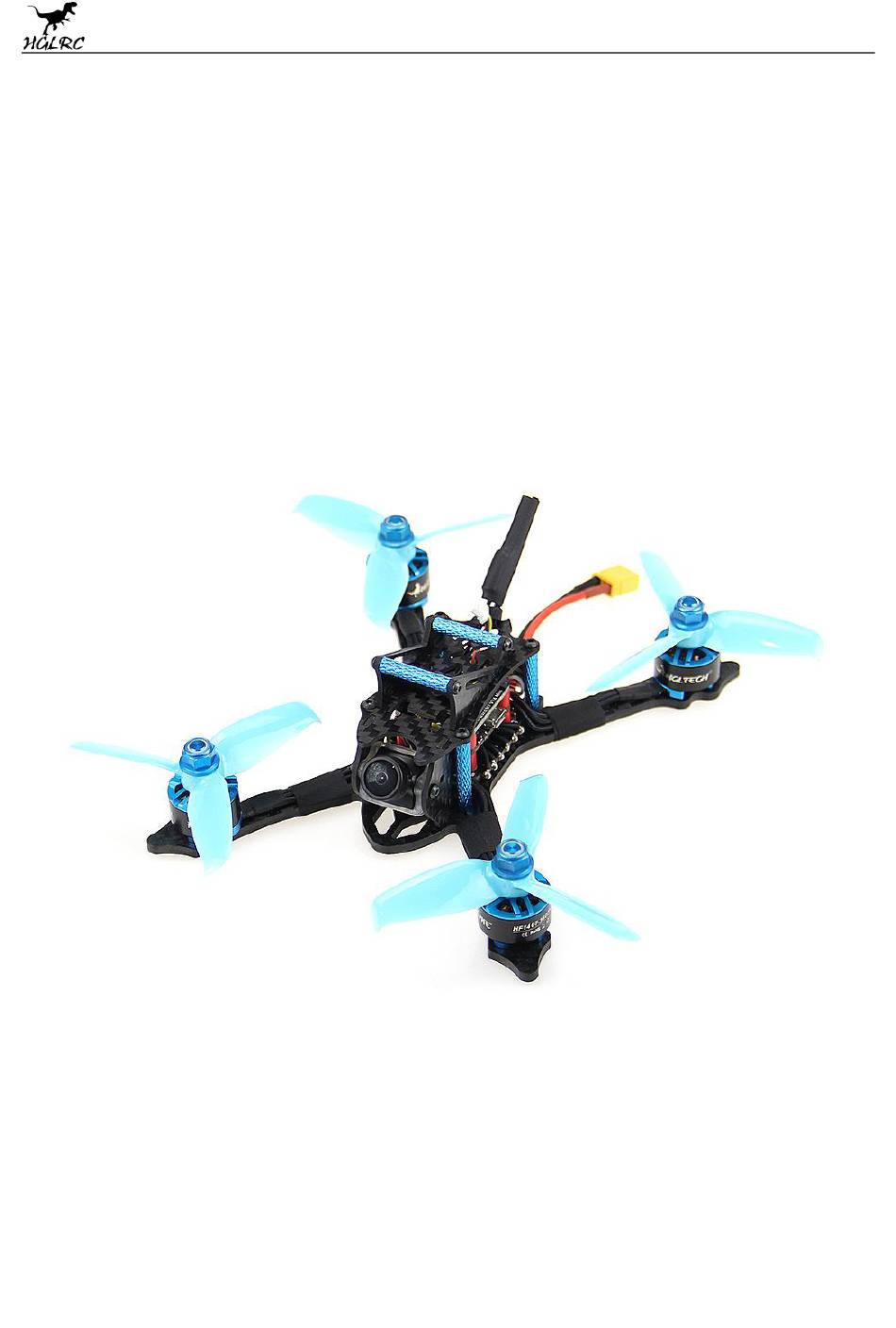

- Page 1 XJB145 FPV Racing Drone Manual www.hglrc.com...
-
Page 2: Table Of Contents
Select ESC telemetry..........................8 Voltage parameters setting........................9 Setting up the receiver..........................10 VTX serial port use. VTX uses OSD smart audio................11 Check receiver signal..........................13 Select flight mode startup mode......................14 OSD settings..............................15 LED settings..............................16 Troubleshooting............................17 ..................Package IncIuded HGLRC XJB145 FPV Racing Drone*1 www.hglrc.com... -
Page 3: Product Specifications
1.Product Specifications Product parameters Model XJB145 FPV Racing Drone Weight PNP:135.5g Frame Kit XJB145 Frame Kit Flight Controller Forward F4 Flight Controller Forward 35A 4in1 Forward MT VTX mini Camera RunCam Nano 2 Motor FLAME 1407 3600KV Support receiver SBUS .DSMX.i.BUS... -
Page 4: Interface Description
2.Interface Description www.hglrc.com... -
Page 5: Check The Flight Control Drive
3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode ， www.hglrc.com... - Page 6 5. Click Select firmware version Load firmware Waiting for completion 6.Click It will be prompted upon completion 7.open betaflight configurator 。Controller plugged into the computer. Betaflight Automatically assigned port，click “Connect” Enter setup interface（Different computer COM） www.hglrc.com...
-
Page 7: Calibration Accelerometer
4.Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again 5.URAT serial port use URAT1 uses receiver telemetry UART2 uses VTX image transmission UART3 uses GPS UART4 uses ESC telemetry UART6 uses the receiver www.hglrc.com... -
Page 8: Select Aircraft Model
6.Select aircraft model Select model Click I understand the risks 2.Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite32 “ ” www.hglrc.com... -
Page 9: Choose Esc Protocol
7.Choose ESC protocol 1.Choose the right ESC protocol, the optional universal protocol DSHOT600. 8.Voltage parameters setting 1.Click Setting parameters www.hglrc.com... -
Page 10: Setting Up The Receiver
9.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART6 Open （SBUS） the receiver serial port “ ” www.hglrc.com... - Page 11 3.have found Open (i.BUS/DSMX) receiver serial port UART1 “ ” 4.Set the SBUS receiver 5.Set the i.BUS receiver 6.Set the DSMX receiver 7. .Set the receiver www.hglrc.com...
-
Page 12: Vtx Serial Port Use. Vtx Uses Osd Smart Audio
10.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram 2.VTX serial port opens. The protocol is selected according to its own VTX protocol. www.hglrc.com... - Page 13 In the “Scr Layout” sub-menu, you can move the OSD elements (like battery voltage, mAh, and so forth) around on the screen. The “Alarms” sub-menu lets you control when the OSD will try to alert you that battery voltage is too low or mAh consumed is too high. www.hglrc.com...
-
Page 14: Check Receiver Signal
After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. 11.Check receiver signal Check the remote control output signal 1.Click www.hglrc.com... -
Page 15: Select Flight Mode Startup Mode
Click channel (below are for reference only) 13.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. www.hglrc.com... -
Page 16: Led Settings
14.LED settings Click Turn on LED support 2.Click Click set according to need www.hglrc.com... -
Page 17: Troubleshooting
2. If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired. 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. www.hglrc.com... - Page 18 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
