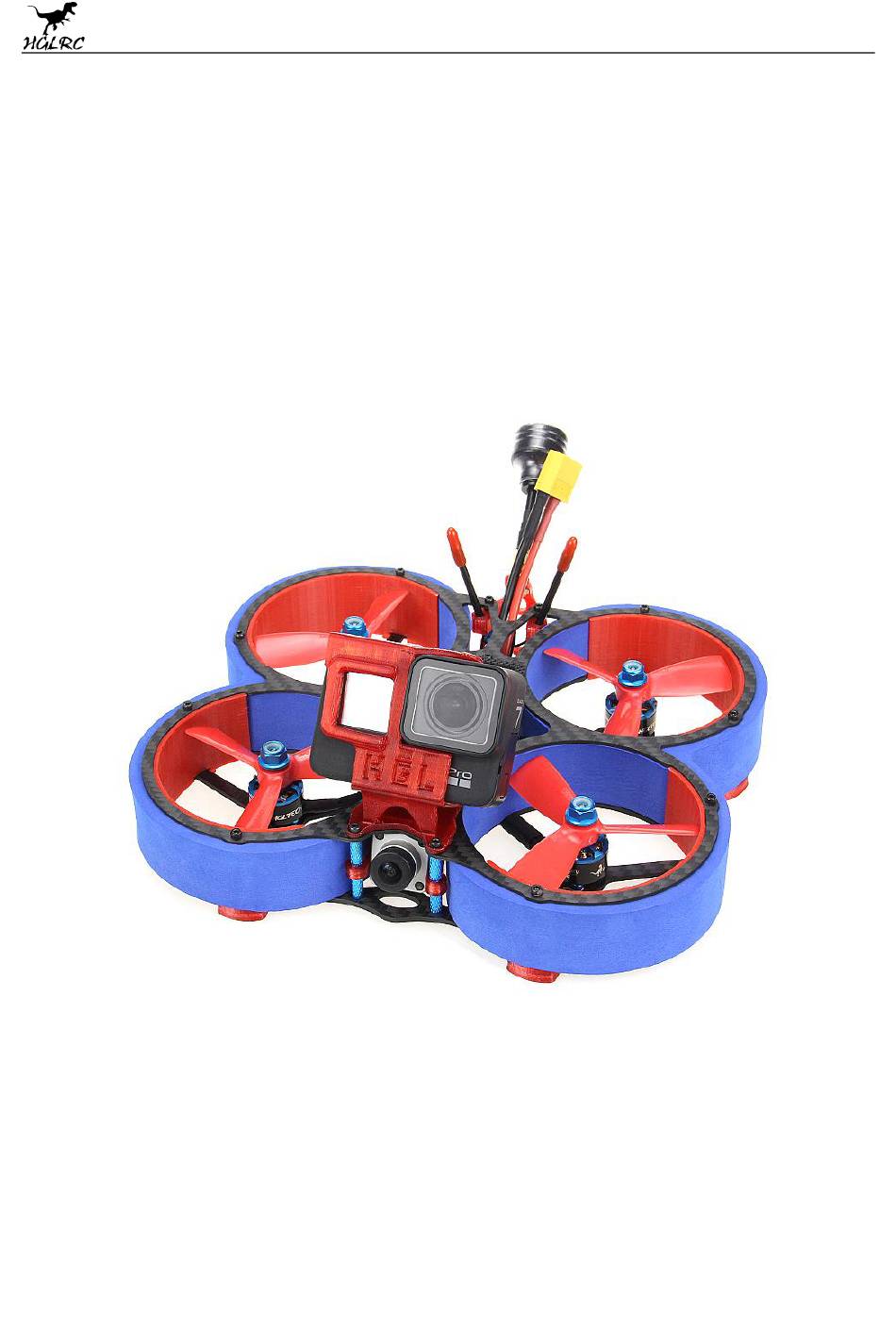

- Page 1 Veyron3 HD FPV Racing Drone Manual www.hglrc.com...
-
Page 2: Table Of Contents
URAT serial port use..........................5 Select aircraft model..........................6 Choose ESC protocol..........................7 Voltage parameters setting........................8 Setting up the receiver..........................9 VTX serial port use............................10 Check receiver signal..........................11 Select flight mode startup mode......................12 LED settings..............................13 Troubleshooting............................14 ..................Package IncIuded Veyron3 HD FPV Racing Drone *1 www.hglrc.com... -
Page 3: Product Specifications

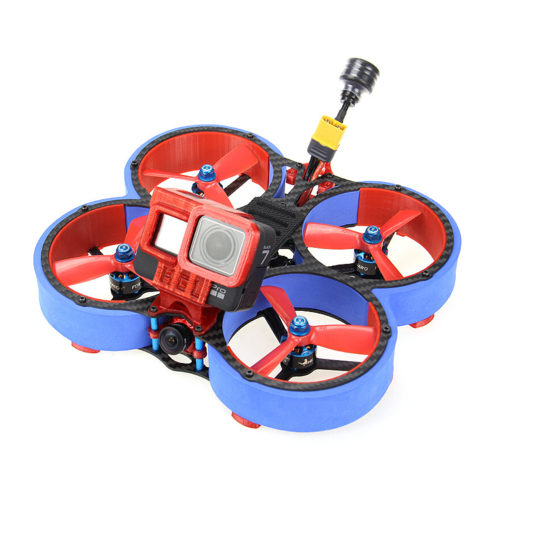

1.Product Specifications Product parameters Veyron3 HD Model FPV Racing Drone 267.0g(BNF) Weight 266.0g (PNP) Frame Kit Veyron3 Frame Kit Flight Controller Zeus35 AIO 35A 4in1 CaddxVista Camera DJIFPVCamera FD1408 Motor kv2400（6S） KV3600（4S） Support receiver SBUS .DSMX.i.BUS Input Voltage 3-6S Lipo... -
Page 4: Interface Description
2.Interface Description www.hglrc.com... -
Page 5: Check The Flight Control Drive
3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode ， www.hglrc.com... - Page 6 5. Click Select firmware version Load firmware Waiting for completion 6.Click It will be prompted upon completion 7.open betaflight configurator 。Controller plugged into the computer. Betaflight Automatically assigned port，click “Connect” Enter setup interface（Different computer COM） www.hglrc.com...
-
Page 7: Calibration Accelerometer
4.Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again 5.URAT serial port use URAT1 uses VTX image transmission UART2 uses receiver telemetry www.hglrc.com... -
Page 8: Select Aircraft Model
6.Select aircraft model Select model Click I understand the risks 2.Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite “ ” www.hglrc.com... -
Page 9: Choose Esc Protocol
7.Choose ESC protocol 1.Choose the right ESC protocol, the optional universal protocol DSHOT600. 8.Voltage parameters setting 1.Click Setting parameters www.hglrc.com... -
Page 10: Setting Up The Receiver
9.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART2 Open （SBUS） the receiver serial port “ ” 3.Open (i.BUS/DSMX) receiver serial port www.hglrc.com... - Page 11 4.Set the SBUS receiver 5.Set the i.BUS receiver 6.Set the DSMX receiver www.hglrc.com...
-
Page 12: Vtx Serial Port Use
10.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram www.hglrc.com... -
Page 13: Check Receiver Signal
2.VTX serial port opens. The protocol is selected according to its own VTX protocol. 11.Check receiver signal Check the remote control output signal 1.Click www.hglrc.com... -
Page 14: Select Flight Mode Startup Mode
12.Select flight mode startup mode set up the function of remote control switch across the Click channel (below are for reference only) 13.LED settings Click Turn on LED support www.hglrc.com... -
Page 15: Troubleshooting
● Keep focus on the polarity. Check carefully before power supply. ● Cut off the power when you connect, plug and pull anything. ● The refresh rate of PID and Gyroscope is up to 8K/8K. www.hglrc.com... - Page 16 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 2.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
