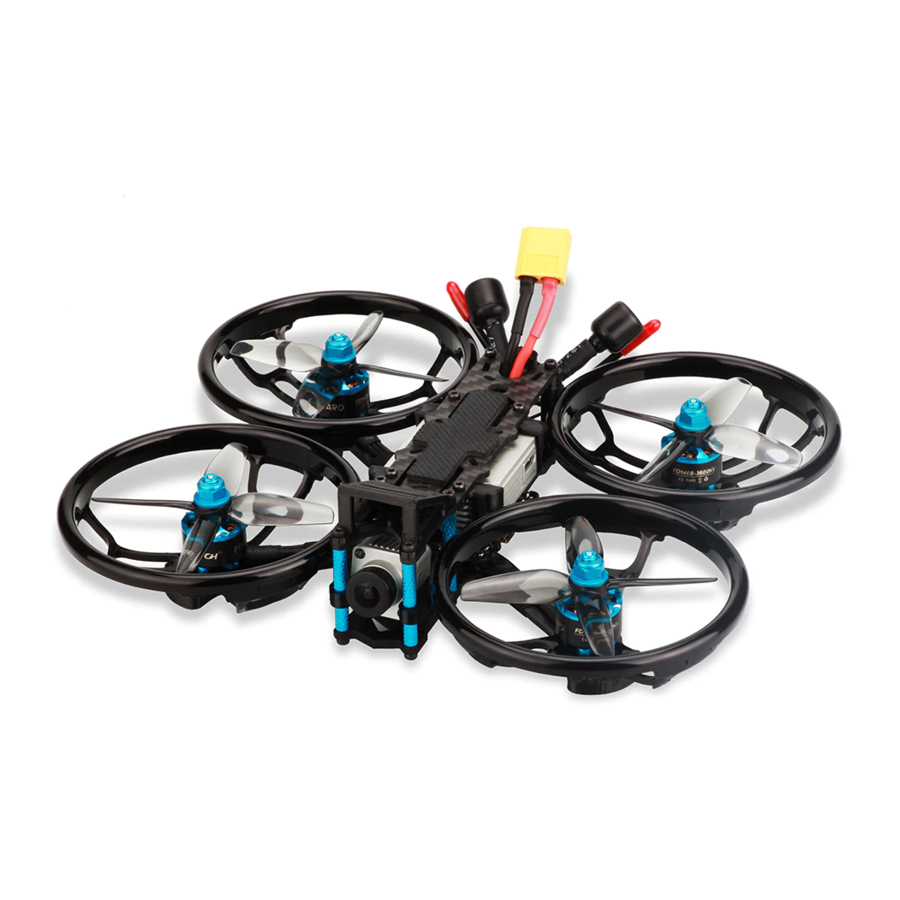

Sector150 HD
FPV Racing Drone
Manual
1
www.hglrc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sector150 HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HGLRC Sector150 HD

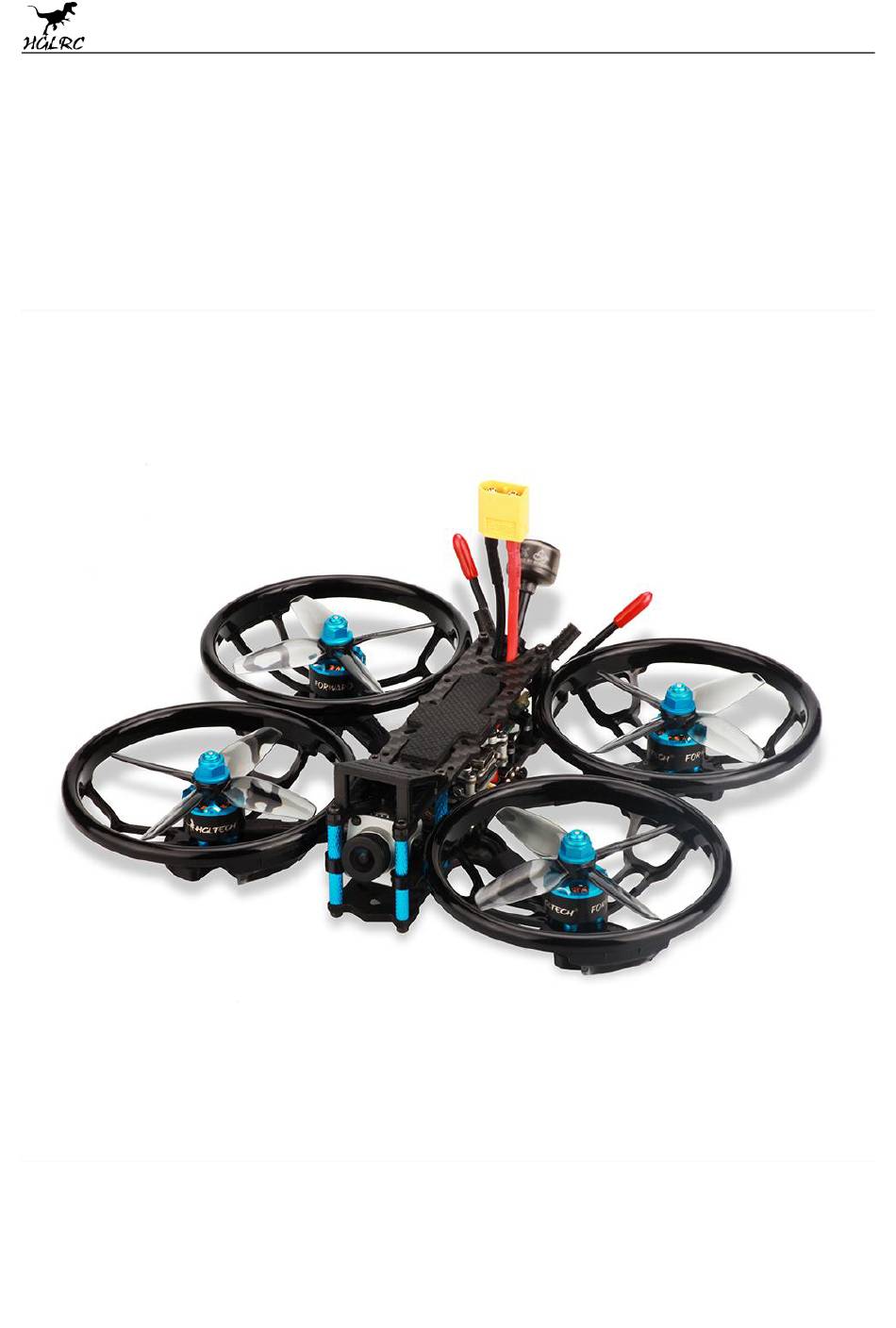

  • Page 1 Sector150 HD FPV Racing Drone Manual www.hglrc.com...
  • Page 2: Table Of Contents

    Select aircraft model..........................6 Choose ESC protocol..........................7 Voltage parameters setting........................8 Setting up the receiver..........................9 VTX serial port use............................10 Check receiver signal..........................11 Select flight mode startup mode......................12 LED settings..............................13 Troubleshooting............................14 ..................Package IncIuded Sector150 HD FPV Racing Drone *1 Accessory Bag*1 www.hglrc.com...
  • Page 3: Product Specifications

    1.Product Specifications Product parameters Sector150 HD Model FPV Racing Drone Weight 245.9g Frame Kit Sector150 Freestyle Frame Kit Flight Controller Zeus35 AIO Flight Controller 35A 4in1 ESC DJI Air Unit Motor 1408 kv3600 Support receiver SBUS .DSMX.i.BUS Input Voltage 3-4S Lipo...
  • Page 4: Interface Description

    2.Interface Description www.hglrc.com...
  • Page 5: Check The Flight Control Drive

    3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode , www.hglrc.com...
  • Page 6 5. Click Select firmware version Load firmware Waiting for completion 6.Click It will be prompted upon completion 7.open betaflight configurator 。Controller plugged into the computer. Betaflight Automatically assigned port,click “Connect” Enter setup interface(Different computer COM) www.hglrc.com...
  • Page 7: Calibration Accelerometer

    4.Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again 5.URAT serial port use URAT1 uses VTX image transmission UART2 uses receiver telemetry www.hglrc.com...
  • Page 8: Select Aircraft Model

    6.Select aircraft model Select model Click I understand the risks 2.Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite “ ” www.hglrc.com...
  • Page 9: Choose Esc Protocol

    7.Choose ESC protocol 1.Choose the right ESC protocol, the optional universal protocol DSHOT600. 8.Voltage parameters setting 1.Click Setting parameters www.hglrc.com...
  • Page 10: Setting Up The Receiver

    9.Setting up the receiver 1.Receiver connection diagram www.hglrc.com...
  • Page 11 2.Click have found UART2 Open (SBUS) the receiver serial port “ ” 3.Open (i.BUS/DSMX) receiver serial port 4.Set the SBUS receiver 5.Set the i.BUS receiver 6.Set the DSMX receiver www.hglrc.com...
  • Page 12: Check Receiver Signal

    10.Check receiver signal Check the remote control output signal 1.Click www.hglrc.com...
  • Page 13 11.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram www.hglrc.com...
  • Page 14: Select Flight Mode Startup Mode

    2.VTX serial port opens. The protocol is selected according to its own VTX protocol. 12.Select flight mode startup mode set up the function of remote control switch across the Click channel (below are for reference only) www.hglrc.com...
  • Page 15: Led Settings

    13.LED settings Click Turn on LED support 2.Click Click set according to need www.hglrc.com...
  • Page 16: Troubleshooting

    2. If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired. 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. www.hglrc.com...
  • Page 17 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 2.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
