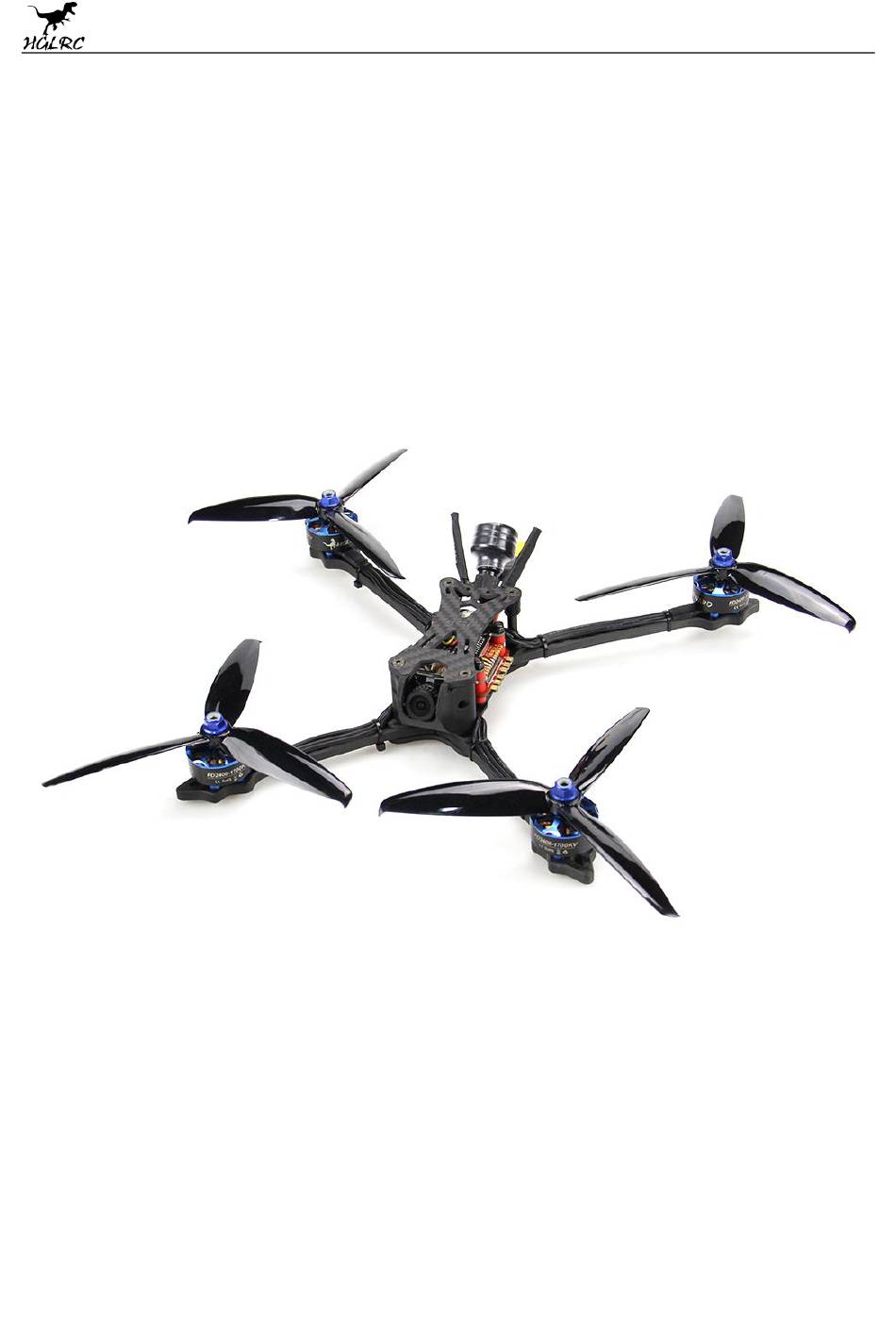

- Page 1 Wind6 FPV Racing Drone Manual www.hglrc.com...
- Page 2 Voltage and current parameters setting....................8 Setting up the receiver..........................9 VTX uses OSD smart audio........................10 GPS parameters setting...........................11 Check receiver signal..........................12 Select flight mode startup mode......................13 OSD settings..............................14 LED settings..............................15 Troubleshooting............................16 ..................Package IncIuded Wind6 FPV Racing Drone*1 Accessory Package*1 www.hglrc.com...
- Page 3 1.Product Specifications Product parameters Model Wind6 FPV Racing Drone Frame Kit Wind 6 Hybrid Frame Ki Flight Controller Forward F722 Flight Controller Forward 65A 4in1 ESC Forward MT VTX 800MW Camera Aurora V2 Camera Forward 2408 Motor Motor 4S KV2500...
- Page 4 2.Interface Description www.hglrc.com...
- Page 5 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode It is recommended to use the latest Betaflight version） ， （ www.hglrc.com...
- Page 6 5.Click Select firmware version 6.Click Load firmware Waiting for completion It will be prompted upon completion 7.open betaflight configurator 。Controller plugged into the computer. Betaflight Automatically assigned port，click “Connect” Enter setup interface（Different computer COM） www.hglrc.com...
- Page 7 4. Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again 5.URAT serial port use 1.URAT1 uses the receiver 2.URAT2 3.URAT3 uses VTX image transmission 4.URAT4 uses GPS 5.URAT6 uses ESC telemetry www.hglrc.com...
- Page 8 6.Select aircraft model Select model Click I understand the risks Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite32 “ ” www.hglrc.com...
- Page 9 1. Choose the correct ESC / Motor protocol, Protocol DSHOT600 is recommended for Wind5 Hybrid racing drone 2.Open ESC telemetry serial port.TX on the ESC needs to be connected to the RX6 on the flight controller to use the ESC telemetry 3.View telemetry data on OSD www.hglrc.com...
- Page 10 8.Voltage and current parameters setting Click Setting parameters www.hglrc.com...
- Page 11 9.Setting up the receiver 1.Receiver connection diagram www.hglrc.com...
- Page 12 2.Click have found UART1 Open the receiver serial port “ ” 3.Set the SBUS receiver 4.Set the PPM receiver 5.Set the DSMX receiver www.hglrc.com...
- Page 13 10.VTX uses OSD smart audio 1.VTX connection diagram 2.VTX serial port opens. The protocol is selected according to its own VTX protocol. www.hglrc.com...
- Page 14 In the “Scr Layout” sub-menu, you can move the OSD elements (like battery voltage, mAh, and so forth) around on the screen. The “Alarms” sub-menu lets you control when the OSD will try to alert you that battery voltage is too low or mAh consumed is too high. www.hglrc.com...
- Page 15 After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. 11.GPS parameters setting 1. GPS connection diagram 2. Open the GPS serial port www.hglrc.com...
- Page 16 3.When using the GPS function, remember to configure the serial port (via the Ports tab). 12.Check receiver signal Check the remote control output signal 1.Click www.hglrc.com...
- Page 17 Click channel (below are for reference only) 14.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. 15. LED settings Click Turn on LED support www.hglrc.com...
- Page 18 Press and hold for 3 seconds to enter the blinking mode switch (LED status light is always on) 4.Blinking mode Steady / Fast Flash / Breathing Light / Colorful Slow Flash LED light can be controlled via CH5(AUX1) of transmitter with Channel_Forwarding enabled. Click enter： resource servo 1 A08 SAVE www.hglrc.com...
- Page 19 2. If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired. 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. www.hglrc.com...
- Page 20 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
