Sharp MultiSync PN-ME552 Mounting Information page 2

About Optional Table Top Stand
For installation, follow the instructions included with the stand. Use only those devices recommended by the manufacturer.
NOTE:
• PN-ME432, PN-ME502, and PN-ME552 use ST-43M. PN-ME652 use ST-65M.

• For the ST-43M, ONLY use screws which are included with the optional table top stand.
For the ST-65M, ONLY use thumbscrews and attach the stand holders which are included with the optional table top
stand. Install the stand so the long end of the feet face forward.

• The monitor can only be used in the landscape orientation with the tabletop stand.
MultiSync model name
PN-ME432
PN-ME502
PN-ME552
PN-ME652
PN-ME652
PN-ME432/PN-ME502/PN-ME552
Height adjustment (PN-ME432/PN-ME502/PN-ME552)

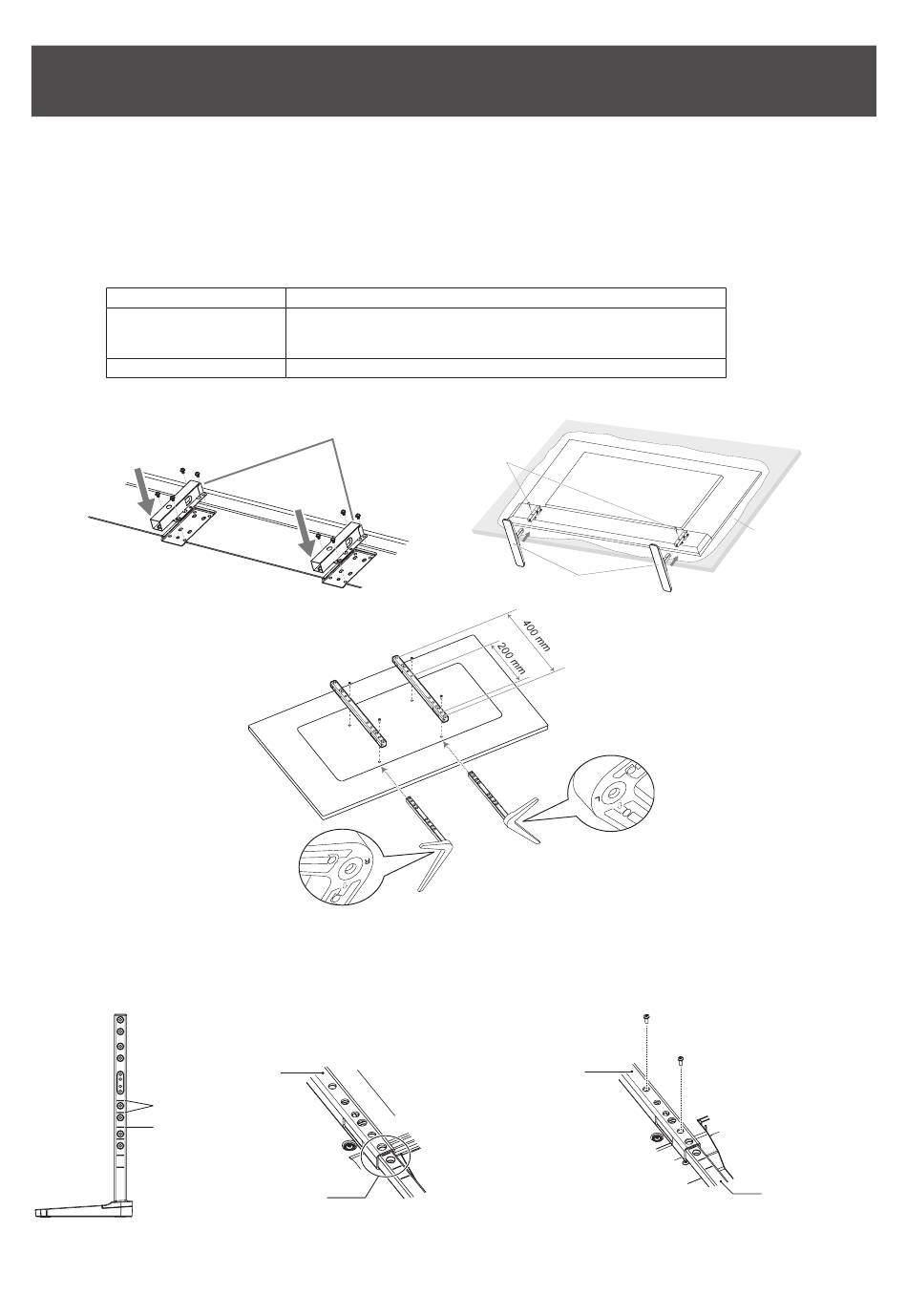

1. The lines on the stand pole are indicators of the
height adjustment (Figure 1). Please adjust the pipe
to the lines.
PN-ME552 High/Low
PN-ME432, PN-ME502
Adjust the pipe to a line
Optional table top stand
ST-43M (screws are included)
ST-65M (thumbscrews, screws, clamps, and stand holders are included)
Optional stand holder
Pipe
Figure 1
Thumbscrews
Optional table top stand
200 mm (PN-ME432)
400 mm (PN-ME502/PN-ME552)
2. Please install the stand pole and the pipe with
included screws. Please screw the two screw holes
at the pipe (Figure 2).
Pipe
[ENG] English
Table
Soft cloth
Stand pole
Figure 2
