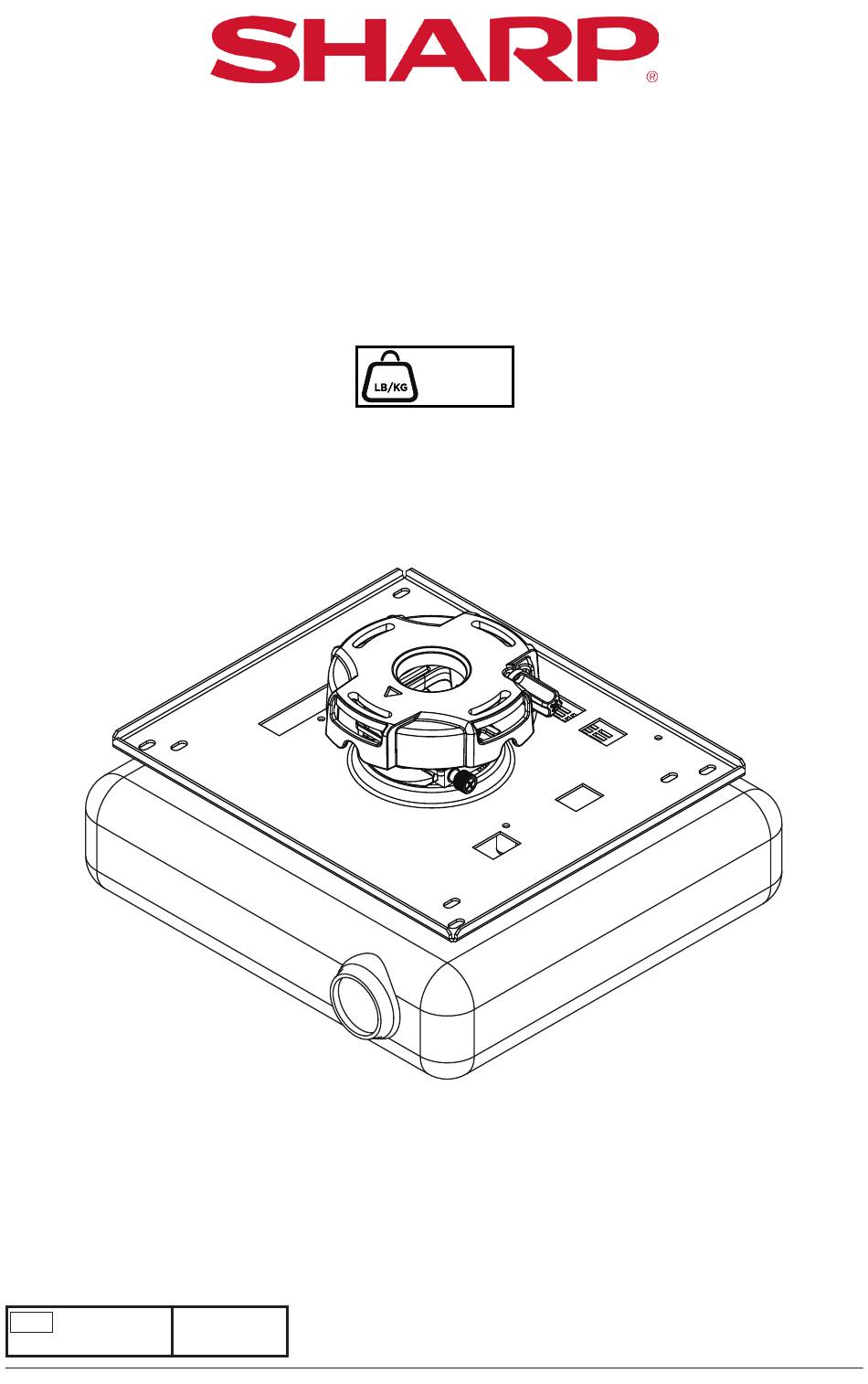

- Page 1 PA600CM Ceiling Mount for NP-P547UL, NP-P627UL, NP-PV710UL, NP-PV800UL, XP-P601Q-W, and XP-P721Q-W Projectors 50 lb (22.7 kg) Compatible AEC*, model/series* EXT* 2015-06-17 #:056-9083-6 (2024-09-11)
- Page 2 WARNING ENG - This product is designed to be installed on wood joist/beam or solid concrete ceilings. Hardware is included for wood joist/beam and solid concrete installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
- Page 3 Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # A projector mount assembly 055-KPRGU-B-4 B connection block 580-1065 C 4mm security allen wrench 560-9646 D concrete anchor 590-0320 E #14 x 2.5 phillips hex head wood screw 5S1-015-C03 #10-32 x 3/8"...
- Page 4 Wood joist/beam Concrete Ceiling Extension Column (not included) 1c-1 WARNING ENG - When installing Peerless ceiling mounts on a wood joist/beam covered with gypsum board (drywall), verify that the joists or beams are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8". 1a-1 Use stud finder to locate and mark stud center lines.
- Page 5 1a-3 5/32" 2.5" (4mm) (64mm) Mounting hole must center on stud. Drill mounting holes into supporting surface 5/32" (2.5" (64mm) minimum depth required). (4mm) 1a-4 Install using wood screws provided. Wood joist Wood joist Access slot for open end Access slot for open end wrench allows tightening wrench allows tightening of wood screw.
- Page 6 WARNING ENG - When installing Peerless ceiling mounts on a concrete ceiling, the ceiling must be at least 8" thick with a minimum compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other finishing material. 1b-1 Mark mounting holes.
- Page 7 1b-3 Insert anchor flush to concrete. D (2) 2b-4 1b-4 Install using concrete anchors and wood screws provided. Maximum 80 in. ∙ lb (9 N.M.). H (2) E (2) 2015-06-17 #:056-9083-6 (2024-09-11)
- Page 8 1c-1 Loosen. 1c-2 Rotate mount at least three full turns onto EXT or AEC series extension column (sold separately). 1c-3 Tighten. 2015-06-17 #:056-9083-6 (2024-09-11)
- Page 9 For use with For use with NP-P547UL and NP-P627UL only. NP-PV710UL, NP-PV800UL, XP-P601Q-W, and XP-P721Q-W only. 2a-1 2b-1 2015-06-17 #:056-9083-6 (2024-09-11)
- Page 10 2a-1 Note proper orientation of notch. F (2) 2a-2 K (4) K (4) L (4) L (4) For use with For use with XP-P601Q-W and XP-P721Q-W only. NP-PV710UL and NP-PV800UL only. 2015-06-17 #:056-9083-6 (2024-09-11)
- Page 11 2b-1 Note proper orientation of notch. F (2) 2b-2 K (4) L (4) 2015-06-17 #:056-9083-6 (2024-09-11)
- Page 12 Tighten. Optional security screw. 2015-06-17 #:056-9083-6 (2024-09-11)
- Page 13 Cable management: adjust pitch then route cables as shown. Loosen. Retighten. Loosen, adjust, tighten. +/-10° 2015-06-17 #:056-9083-6 (2024-09-11)
- Page 14 Loosen, adjust, tighten. +15° -15° -20° +20° 2015-06-17 #:056-9083-6 (2024-09-11)
- Page 15 SWIVEL (YAW) 360° (when attached to an extension column), +/- 15° (when flush mounted). +/- 360° Loosen, adjust, tighten. 3/8" (10mm) 2015-06-17 #:056-9083-6 (2024-09-11)
- Page 16 Warranty Garantía Garantie Garantie Garantie ČEŠ Záruka Garantia TÜR Garanti̇ Garanzia Záruka www.peerless-av.com/warranty • www.peerless-av.com • www.peerless-av.com/patents Peerless-AV Peerless-AV EMEA Peerless-AV B.V. Peerless-AV Latin America 2300 White Oak Circle Unit 2, Curo Park Papendorpseweg 75 Av. de las Industrias 413 Aurora, IL 60502, USA Frogmore, St.
