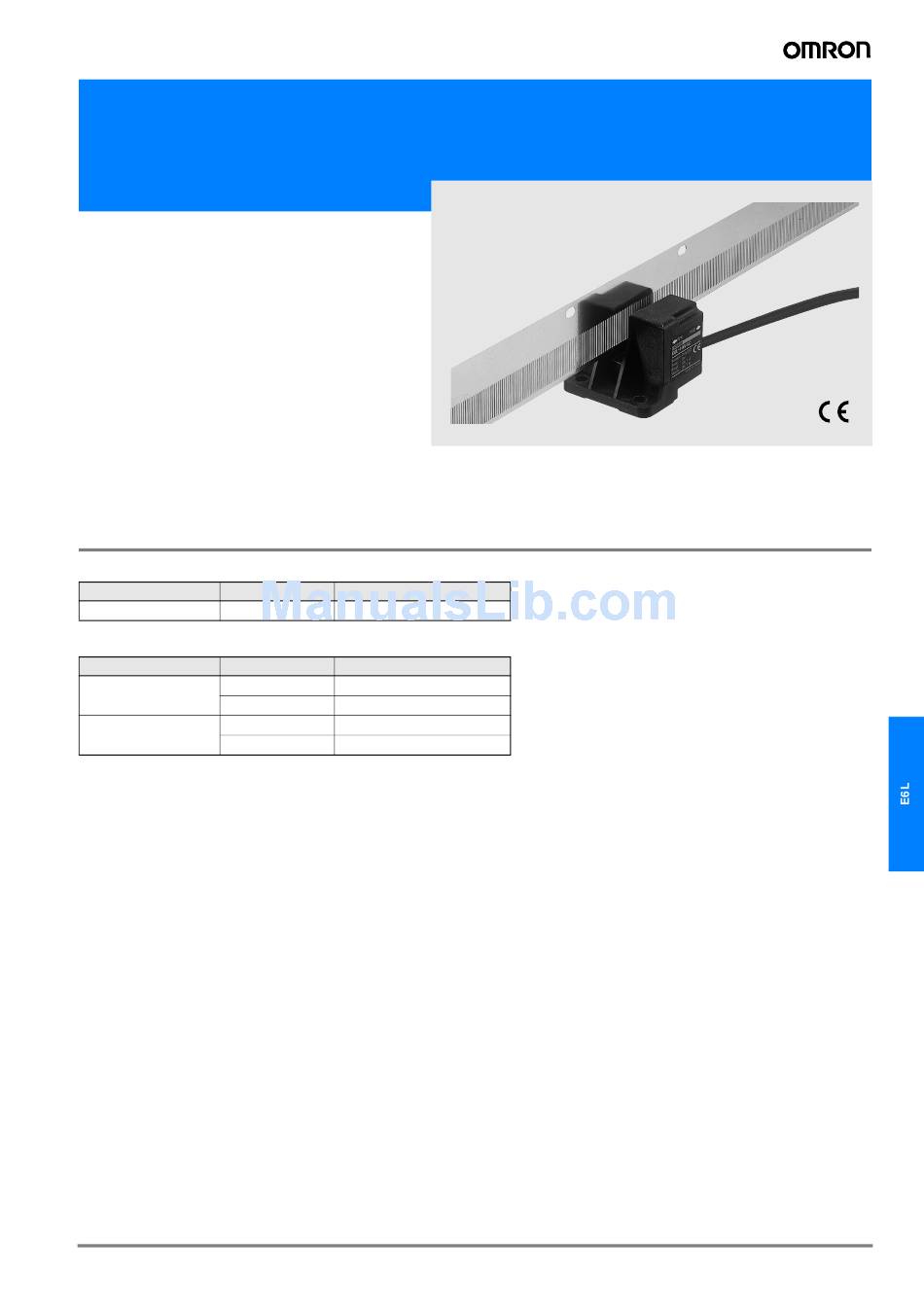

Easy scale (linear encoder)
E6L
Best for conveyance use
• It is strong for scale fluttering because of an original
optical system design (detection scale: 6 mm
±3 mm)
• Low cost original optical system design
• Suitable for positioning of conveyance use 1 mm
resolution
• Two types (280 mm and 475 mm) of detection scale
length are available. Scale to be chosen as re-
quired.
• Extension of a detection stroke by two or more con-
nection of a scale is possible.
Ordering Information
Linear encoder
Supply voltage
Resolution
24 VDC
Detection scale
Overall length
Package
280 mm
475mm
E6L
Model
E6L-HW4C
1 mm
Model
1
E6L-S1M-1280
10
E6L-S1M-10280
1
E6L-S1M-1475
10
E6L-S1M-10475
E-17
