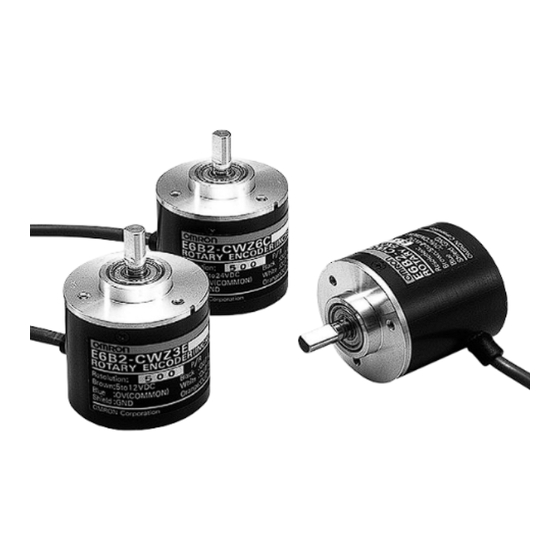

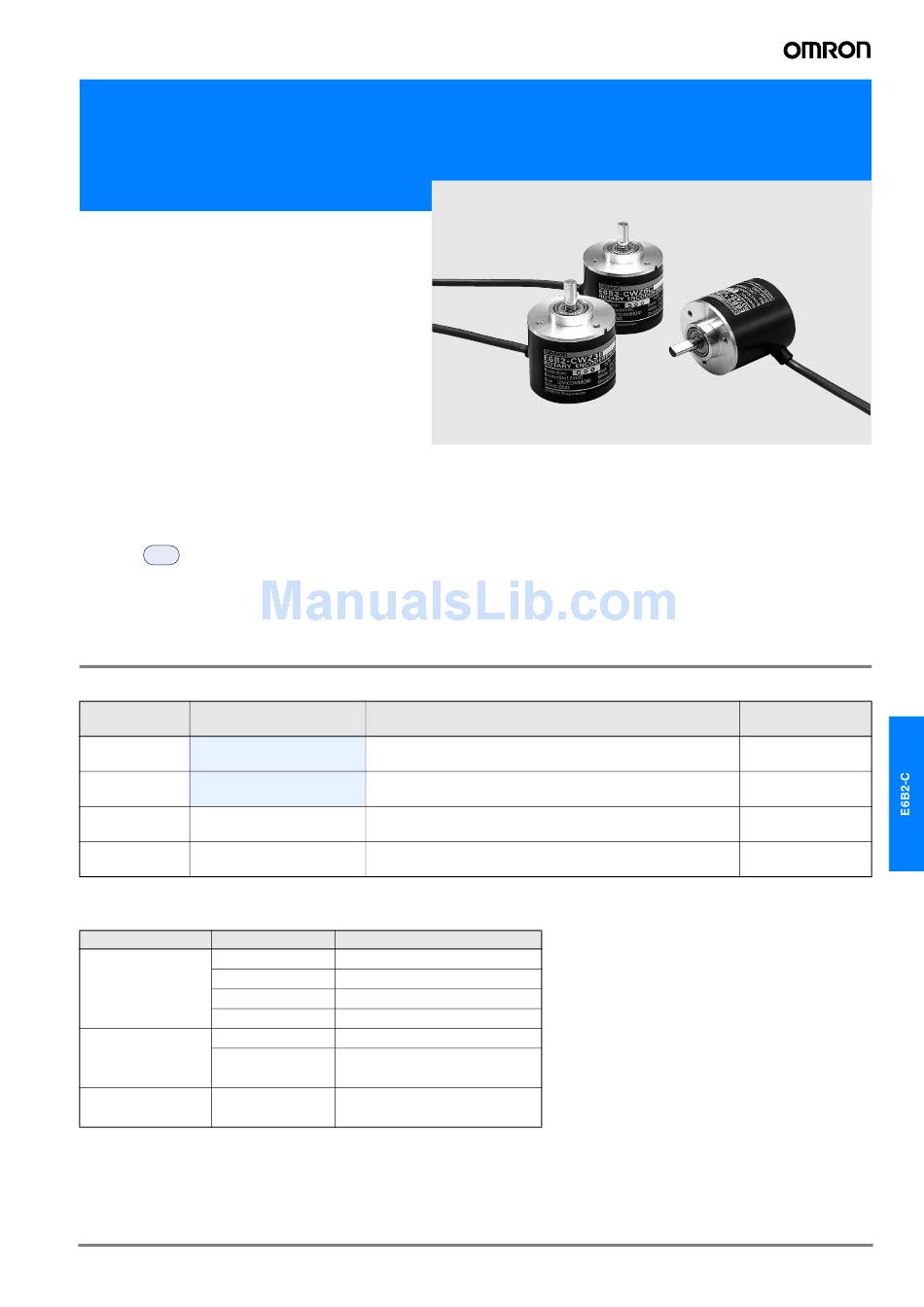

Omron E6B2-C Datasheet

Incremental Rotary Encoder OD 40 dia.
E6B2-C
General-Purpose
Incremental Rotary Encoder
With Large Shaft 40 dia.
• A wide operating voltage range from 5 to 24 VDC
(open collector model).
• High resolution models (2000 pulses per revolution)
substantially improve measuring accuracy
• Easy-to-adjust zero index (phase Z) with origin indi-
cating function
• A large load of 30 N in the radial direction and 20 N
in the thrust direction are permitted.
• The load short-circuit and reversed connection pro-
tecting circuit assure high operation reliability.
• Available with Line Driver output (100 m max. exten-
sion available)
• Shock resistance strengthened by metal disk. (600 P/
R max.)
Patent

Ordering Information

Sensors
Power supply
Output form
voltage
NPN open collector output
5 to 24 VDC
PNP open collector output
12 to 24VDC
NPN voltage output
5 to 12 VDC
Line driver output
5 VDC
Note: When ordering, add the resolution (pulses per revolution) between the part number. For example, E6B2-CWZ6C 100 P/R.

Accessories (Order Separately)

Item
E69-C06B
E69-C68B
Coupling
E69-C610B
E69-C06M
E69-FBA
Flanges
E69-FBA02
Mounting Bracket E69-2
E6B2-C
10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 720,
800, 1,000, 1,024, 1,200, 1,500 1,800, 2,000
100, 200, 360, 500, 600, 1,000, 2,000
10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1,000,
1,200, 1,500 1,800, 2,000
10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1,000,
1,024, 1,200, 1,500 1,800, 2,000
Model Remarks
Attachment
Different end diameter
Different end diameter
Metal construction
---
E69-2 Mounting Bracket included
---
Resolution (pulse/rotation) Model
E6B2-CWZ6C
E6B2-CWZ5B
E6B2-CWZ3E
E6B2-CWZ1X
E-5
