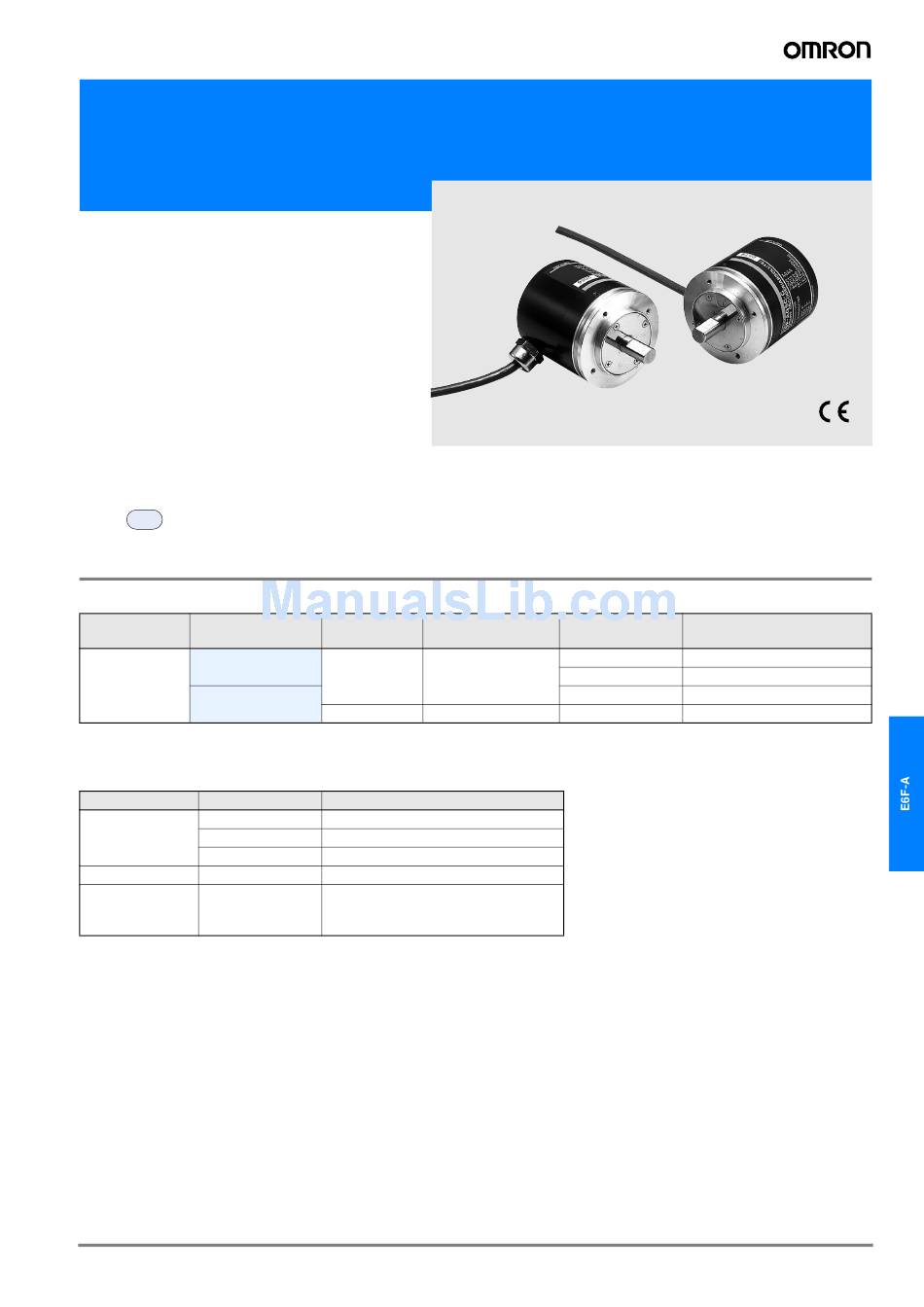

Absolute Rotary Encoder
E6F-A
Rugged construction
providing high-precision
timing detection for automatic
machines operation
• Stronger shaft and higher durability (120 N in radial
direction and 50 N in thrust direction) than previous
E6F Encoders.
• Drip-proof construction meets IP64F standards
• High resolution models (1024 pulses max. per revo-
lution)
• Faster response for high-speed control applications
(grey code: 20 kHz).
• Shock resistance strengthened by metal
disk.
Patent
Ordering Information
Sensors
Supply voltage
Output form
NPN open collector
12 to 24 VDC
PNP open collector
Note: 1 . For order placement add the resolution (pulses per revolution) between the part number. For example, E6F-AG5B 256 P/R.
2 . E6F-AB5C-C applied for rotary positioner connection.
Accessories (Order Separately)
Item
Model
E69-C10B
Coupling
E69-C610B
E69-C10M
Mounting Bracket
E69-2
Extension Cable
E69-DF5
E6F-A
Resolution
Output code
(pulses/revolution)
BCD
360
Gray code
256, 360, 720, 1,024
Remarks
Supplied with pre-wired models
Different end diameter
Metal construction
Supplied with the product (set of 3)
Standard stock models: 5 m, 10 m.
In addition to this 15 m, 20 m and 98 m
are available.
Connection method
Pre-wired
E6F-AB5C
Connector type
E6F-AB5C-C
Pre-wired
E6F-AB5B
Pre-wired
E6F-AG5B
Model
E-13
