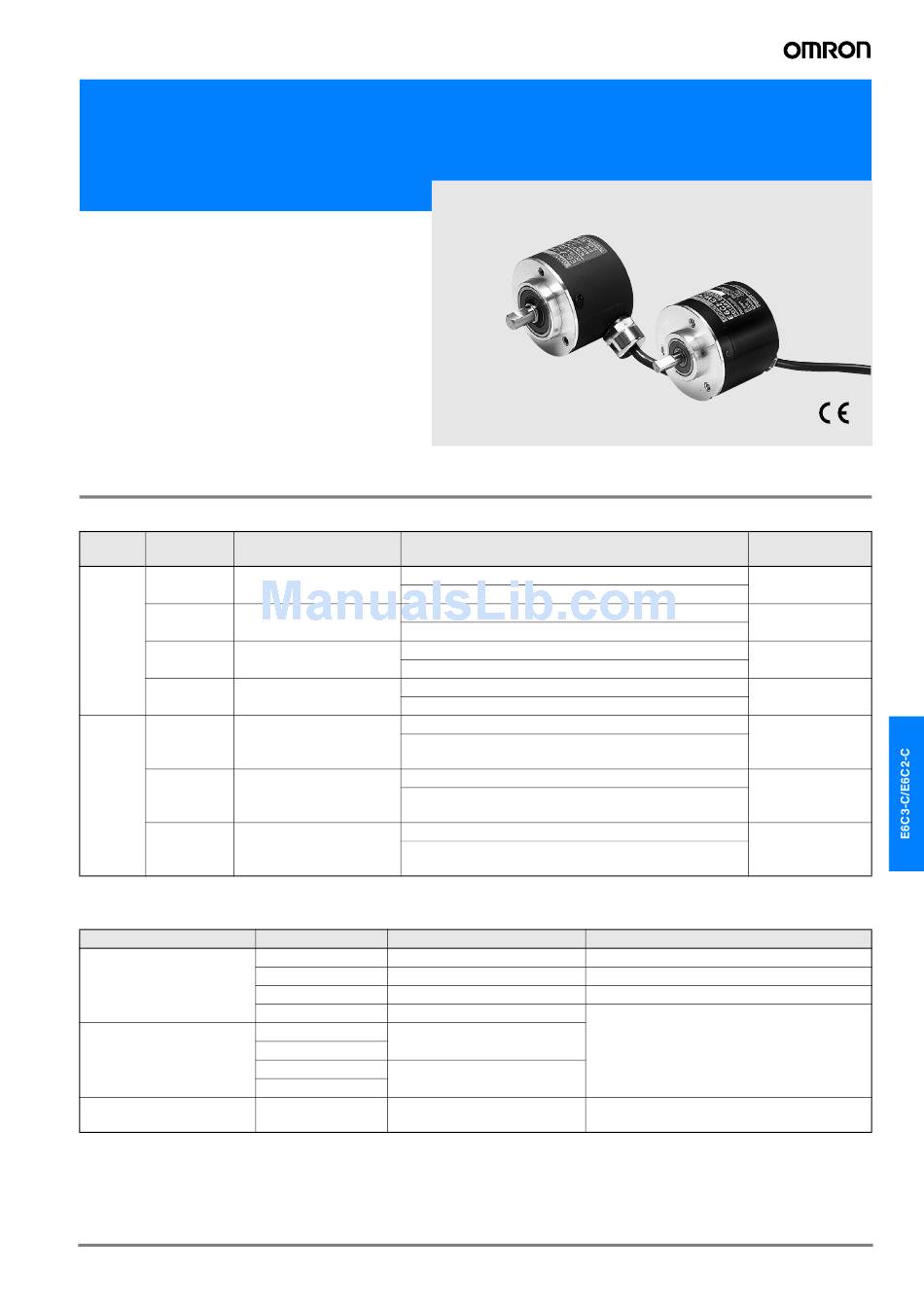

Omron E6C2-C Datasheet

Incremental Rotary Encoder OD 50 dia. (thin)
E6C2-C/E6C3-C
Tough & Easy
• Drip-proof, oil-proof construction meets IP64F stan-
dards
• Shaft withstanding heavy loads, 80 N radially, 50 N
thrust (axially)
• Protective Circuit Output Shorting
• Space-saving, A-slant cable protrusion for easy in-
stallation
• Shock resistance strengthened by metal disk.
E6C2-C: 600P/R max.
E6C3-C#H: 500P/R max.
Ordering Information
Sensors
Power supply
voltage
NPN open collector output
5 to 24 VDC
12 to 24VDC PNP open collector output
Stan-
dard
models
NPN voltage output
5 to 12 VDC
Line driver output
5 VDC
12 to 24VDC Complimentary output
8 dia.
tough NPN voltage output
5 to 12 VDC
model
Line driver output
5 to 12 VDC
Note: For order placement add the resolution (pulses per revolution) between the part number. For example, E6C2-CWZ6C 100P/R.
Accessories (Order Separately)
Item
Coupling
Flanges
Mounting Bracket
E6C3-C/E6C2-C
Output form
10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600
720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000
100, 200, 360, 500, 600
1,000, 2,000
10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600
720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000
10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600
720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000
100, 200
300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500,
1,800, 2,000, 2,048, 2,500, 3,600
100, 200
300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500,
1,800, 2,000, 2,048, 2,500, 3,600
100, 200
300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500,
1,800, 2,000, 2,048, 2,500, 3,600
Model Applicable Rotary Encoders
E69-C06B E6C2-CWZ#
E69-C68B E6C3-CWZ#/#H
E69-C06M E6C2-CWZ#
E69-C08B E6C3-CWZ#H
E69-FCA
E6C2-CWZ#
E69-FCA02
E69-FCA03
E6C3-CWZ#H
E69-FCA04
E69-2
Resolution (pulse/rotation)
---
Diameter of ends: 6 to 8 dia.
Metal construction
---
Provided with the E69-FCA02 and E69-FCA04
---
Flange.
Model
E6C2-CWZ6C
E6C2-CWZ5B
E6C2-CWZ3E
E6C2-CWZ1X
E6C3-CWZ5GH
E6C3-CWZ3EH
E6C3-CWZ3XH
Remarks
E-7
