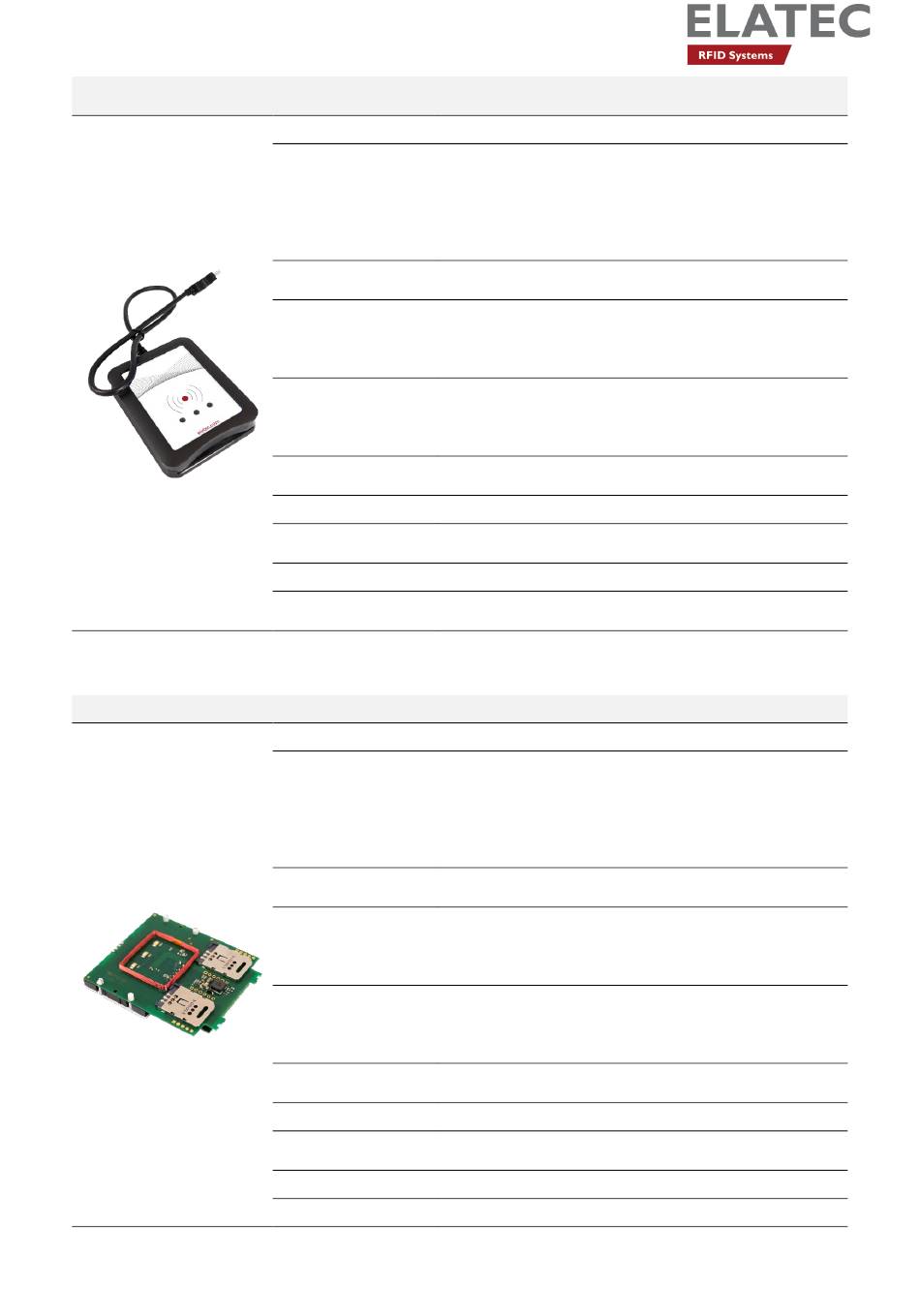

TWN4 MultiTech SmartCard LEGIC 42
(registered under the model name TWN4 SmartCard LEGIC NFC USB)
3.2.2 RFID MODULES
TWN4 MultiTech SmartCard LEGIC M
© 2024 – ELATEC GmbH – TWN4 MultiTech SmartCard family – user manual – DocRev01 – EN – 05/2024
Frequencies 125 kHz (LF) / 13.56 MHz (HF)
Integrated RFID LF antenna
Dimensions: 31.00 x 32.00 mm / 1.22 x 1.26 inch
Number of turns: 155
Antennas
Integrated RFID HF antenna
Dimensions: 45.00 x 48.00 mm / 1.77 x 1.89 inch
Number of turns: 3
Dimensions Approx.
(L x W x H) 88.00 x 68.00 x 19.19 mm / 3.46 x 2.68 x 0.76 inch
USB: 4.3 V - 5.5 V
RS-232: requires 5 V external power supply
Power
ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Supported SmartCards:
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
SmartCards
Power to SmartCard:
60 mA (Class A); 55 mA (Class B); 35 mA (Class C)
Temperature Operating: -25 °C up to +70 °C / -13 °F up to +158 °F
ranges Storage: -40 °C up to +75 °C / -40 °F up to +167 °F
Relative humidity 5% to 95% non-condensing
LF and HF: up to 100 mm / 4 inch, depending on
R/W distance
environment and transponder
MTBF 500,000 hours / Min. 100,000 card insertion cycles
Approx. 140 g / 4.94 oz (with housing and USB
Weight
cable)
Frequencies 125 kHz (LF) / 13.56 MHz (HF)
Integrated RFID LF antenna
Dimensions: 31.00 x 32.00 mm / 1.22 x 1.26 inch
Number of turns: 155
Antennas
Integrated RFID HF antenna
Dimensions: 45.00 x 48.00 mm / 1.77 x 1.89 inch
Number of turns: 3
Dimensions Approx.
(L x W x H) 76.00 x 62.00 x 11.00 mm / 2.99 x 2.44 x 0.43 inch
USB: 4.3 V - 5.5 V
RS-232: requires 5 V external power supply
Power
ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Supported SmartCards:
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
SmartCards
Power to SmartCard:
60 mA (Class A); 55 mA (Class B); 35 mA (Class C)
Temperature Operating: -25 °C up to +80 °C / -13 °F up to +176 °F
ranges Storage: -40 °C up to +85 °C / -40 °F up to +185 °F
Relative humidity 5% to 95% non-condensing
LF and HF: up to 100 mm / 4 inch, depending on
R/W distance
environment and transponder
MTBF 500,000 hours / Min. 100,000 card insertion cycles
Weight Approx. 35 g / 1.23 oz
