- Page 1 TWN4 MULTITECH 2 M LF HF USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .................................. 3 ABOUT THIS MANUAL ..............................3 ELATEC SUPPORT ................................3 REVISION HISTORY ..............................3 INTENDED USE .................................. 3 SAFETY INFORMATION ..............................4 TECHNICAL DATA ................................5 MODE OF OPERATION ..............................6 OPERATING MODE ...............................6 POWER UP ..................................6 ENUMERATION ................................6 INITIALIZATION ................................6... -
Page 3: Introduction

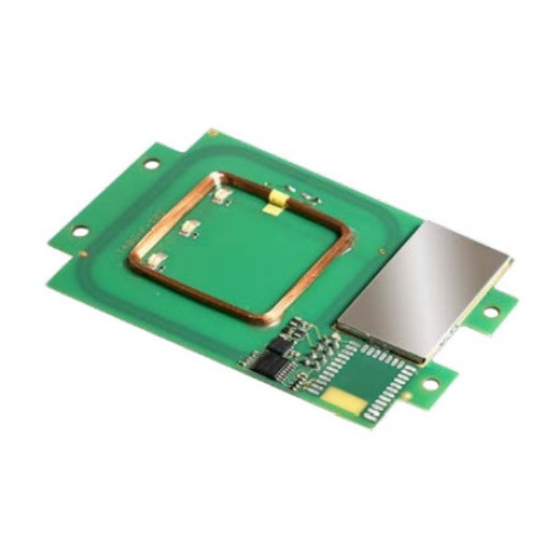

2 INTENDED USE The TWN4 MultiTech 2 M LF HF reader module has integrated RFID (LF & HF) and NFC, which is supported by mobile phones with Android version 4.3 or greater. The app on the reader communicates with the NFC module with easy commands. -
Page 4: Safety Information
Users with a pacemaker or any other medical device should use TWN4 MultiTech 2 M LF HF carefully and refer to the information given by the manufacturer of their medical devices before using TWN4 MultiTech 2 M LF HF or any host device containing TWN4 MultiTech 2 M LF HF. -
Page 5: Technical Data
If you are unsure about any part of the safety information above, contact ELATEC support. Any failure to observe the safety information above will be considered misuse and will void the warranty. ELATEC is not responsible for any damage or injuries resulting from any misuse of the product. -
Page 6: Mode Of Operation
Short-circuit current < 8 A Once TWN4 MultiTech 2 M LF HF is connected to the host, it detects the type of communications cable (e.g. USB or RS-232), with which it is connected to the host. In case of RS-232: Additionally, the RS-232 is sending a version string via RS-232 to the host. -
Page 7: Compliance Statements
6 COMPLIANCE STATEMENTS TWN4 MultiTech 2 M LF HF is in compliance with the EU directives and regulations as listed in the respective declaration of conformity. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 8: United Kingdom
UNITED KINGDOM TWN4 MultiTech 2 M LF HF complies with the requirements of the UK legislations and other regulations as listed in the respective UKCA declaration of conformity. The importer is responsible for applying the following information to the packaging of the product: •... -
Page 9: Appendix
TWN4 MultiTech 2 technical handbook • TWN4 MultiTech 2 M LF HF data sheet • TWN4 MultiTech 2 M LF HF integration manual • © 2021 ELATEC GmbH – TWN4 MultiTech 2 M LF HF user manual DocRev2 – 07/2021 Page 9 of 10... - Page 10 Elatec reserves the right to change any information or data in this document without prior notice. Elatec declines all responsibility for the use of this product with any other specification but the one mentioned above. Any additional requirement for a specific customer application has to be validated by the customer himself at his own responsibility. Where application information is given, it is only advisory and does not form part of the specification.
