3. Integrated Simulation – New Function in Version 2.0
3. Integrated Simulation – New Function in Version 2.0
Integrated Simulation Overview:
Integrated Simulation is a function of CX-One (version 2.0 or higher) that
simultaneously tests interoperability between the ladder program and PT
(touch panel) and checks screen operation on the computer.
Earlier Versions:
Operation checks had to be performed separately on the ladder program and PT (touch panel)
screens. In addition, the program had to be downloaded to the devices.
Using Integrated Simulation:
Provides an interoperability check between the ladder program and
touch panel screens.
Operation can be verified before actual devices such as the PLC and PT (touch panel) are
installed and wired, so software quality can be improved in the design stage.
Time can be saved by eliminating the tasks up to downloading the screen data from the
computer to the PT.
The operation of both the PLC and PT (touch panel) can be verified simultaneously in the
computer, which greatly reduces the time required for debugging and equipment downtime
during improvements.

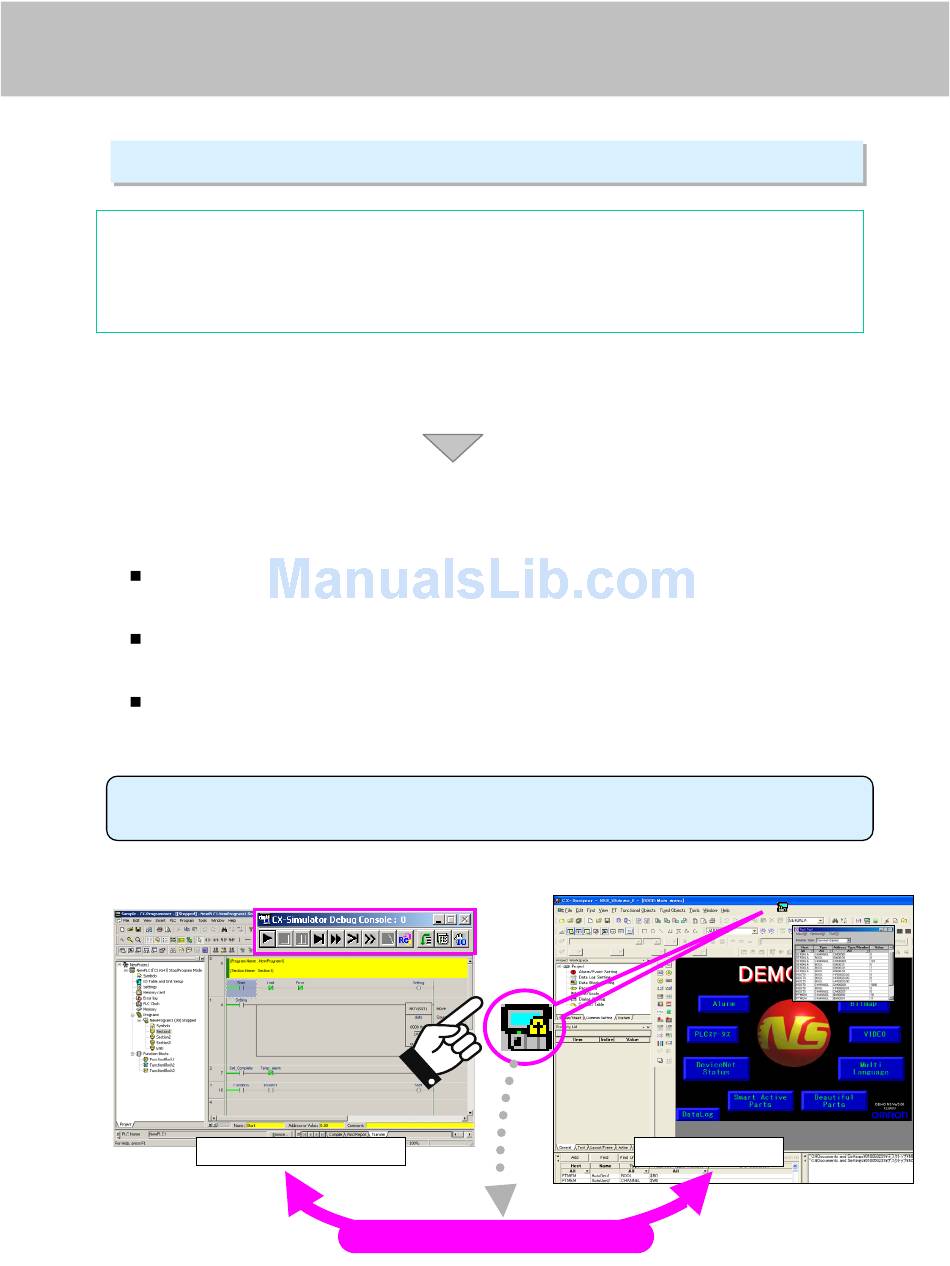

Simulation of the PLC – PT (touch panel) system can be started easily,
Ladder program
CX-Programmer
with one click of an icon.
One
click
Linked and simulation started.
Touch panel screen
CX-Designer
