Omron CX-ONE - INTRODUCTION GUIDE Introduction Manual page 21

Starting CX-
Design
Programmer
Right-click NCF Unit
Point [Start Special
Application]
Click [Start with
Settings Inherited]
Double-click NCF Unit
Click
Click
Setting
Creating Unit
CPU Bus
Configuration
Units/SIOU
NCF Unit and Servo Driver Connected to the NCF Unit Setup
NCF Unit and Servo Driver Connected to the NCF Unit Setup

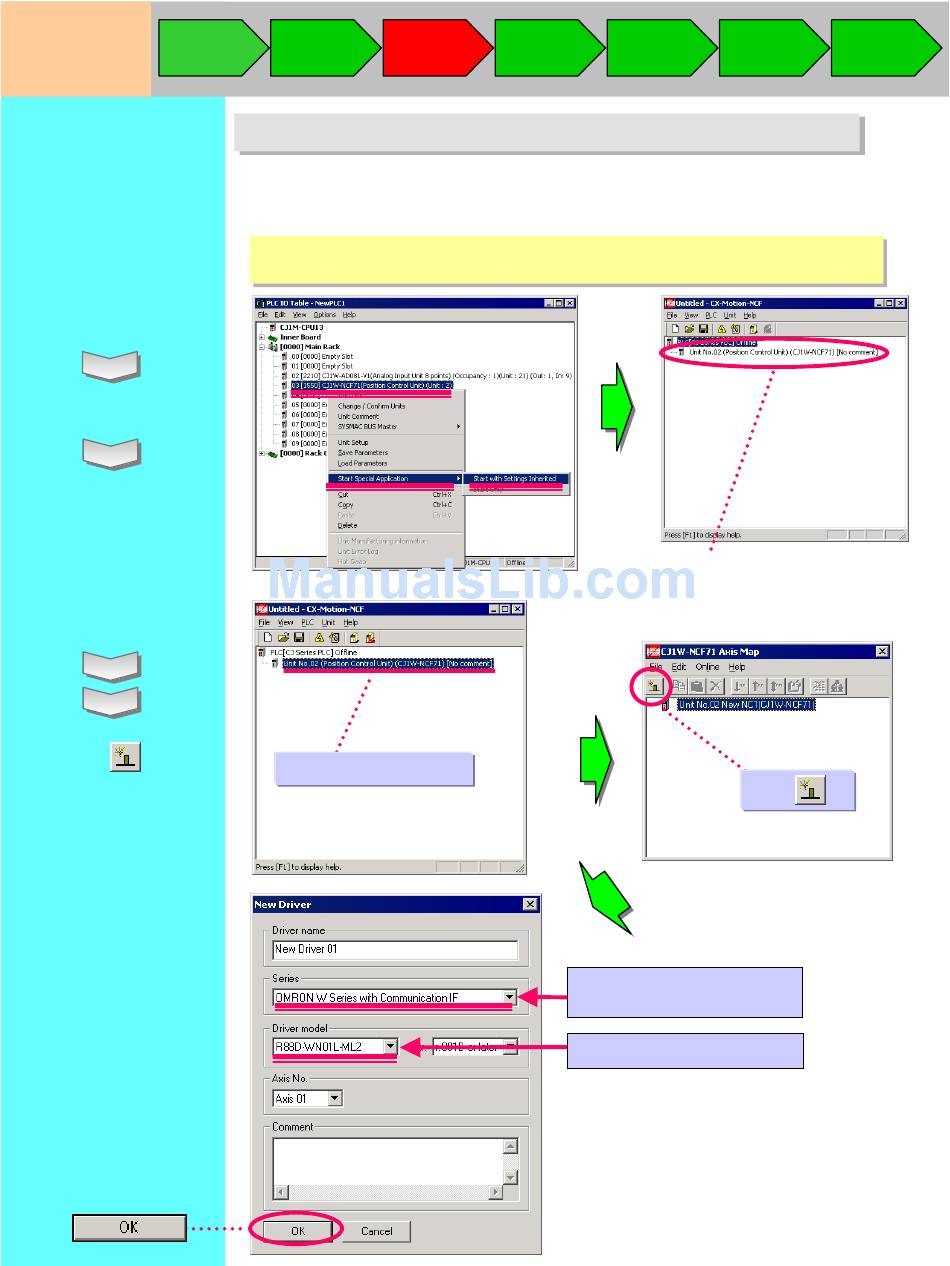

As with Analog Unit registration, register the NCF Unit (CJ1W-NCF71).
The NCF Unit resides within a position control Unit.
Nest, start CX-Motion-NCF using [Start with Settings Inherited].
When opening a stored project file after starting the dedicated tool, select [Start Only].
If [Start with Setting Inherited] is selected, a new project is created.
Register a servo driver.
Double-click NCF Unit.
Checking I/O
Programming
Assignment
Displayed with NCF Unit registered.
Select OMRON W series (with
communications function).
Select R88D-WN01L-ML2.
Saving a
Offline Debug
Project
Click
