Omron CX-ONE - INTRODUCTION GUIDE Introduction Manual page 59

PLC Network
PLC
Start-Up
Start-Up
Select [Connect]
Select [Compare]
Select [Connect]
Select [Compare]
Select [Change
connection to this PLC]
Select [Connect]
Select [Compare]
DeviceNet NT Link
Start-Up Start-Up

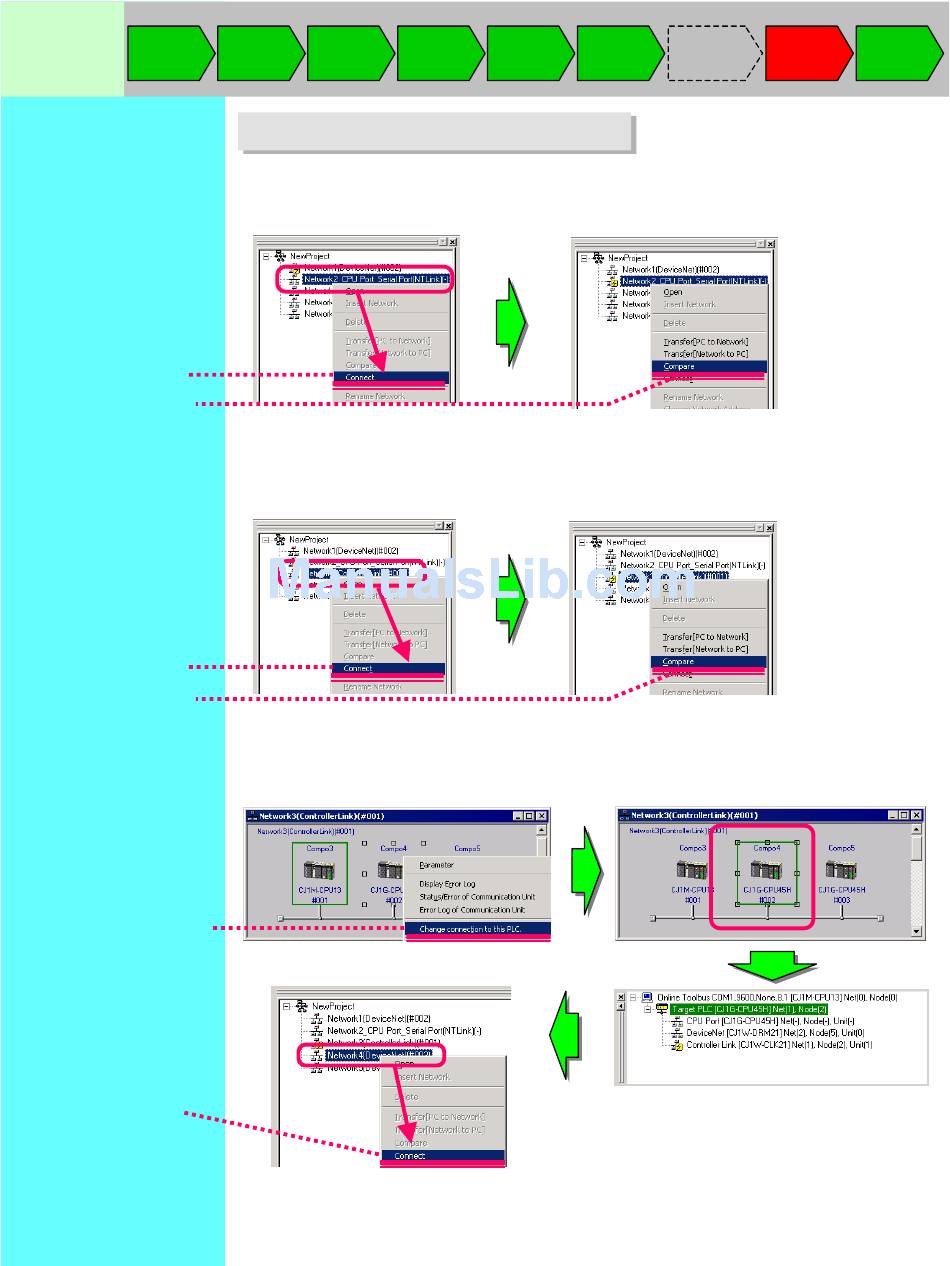

System Configuration Verification (2)
System Configuration Verification (2)
(5) Verify the NT Link network.
Connect to the NT Link from the workspace and verify the network configuration.
Confirm that the same verification matching message is displayed as in step (4).
(6) Verify the Controller Link network.
Connect to DeviceNet from the online connection information window and verify the
network Structure.
Confirm that the same verification matching message is displayed as in step (4).
(7) Connect to a PLC on the Controller Link network.
Connect to a remote PLC using the same procedure as the step (5) for saving a System
configuration.
Use steps from (2) to (4) to verify the DeviceNet network.
(8) Verify the DeviceNet configuration on another remote PLC.
Use the same procedure as step (2) for Network "N4" to verify the network Structure.
Controller
CompoWay
Link
/F Start-Up
Start-Up
Saving Equipment
System Disass'y /
Config. Reass'y Verification
System Controller
Config. Link
Diagnosis
