Omron CX-ONE - INTRODUCTION GUIDE Introduction Manual page 51

PLC Network
PLC
Start-Up
Start-Up

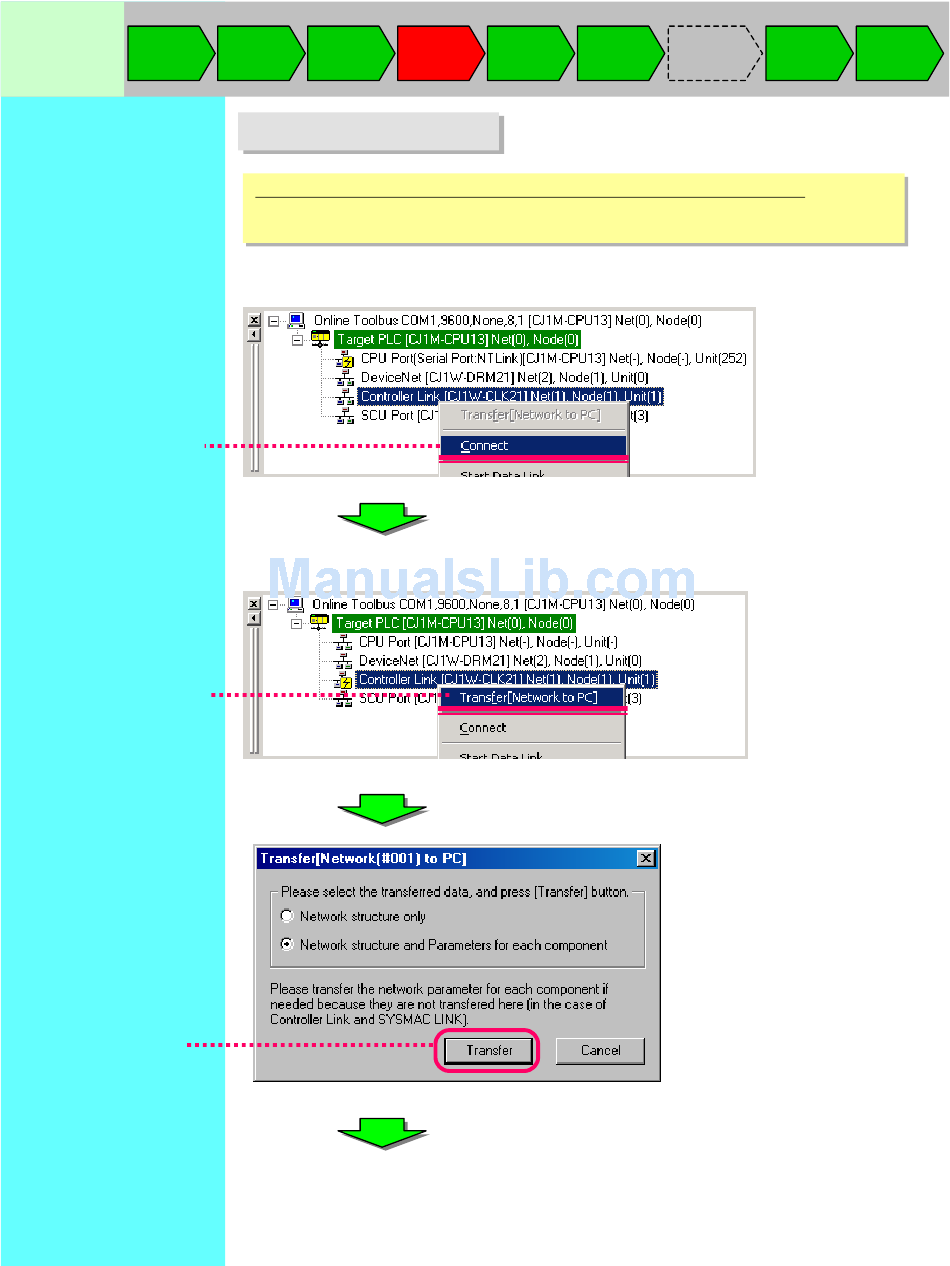

Right-click a Controller
Link Unit in the online
connection information
window, then select
[Connect]
Select
[Transfer [Network to PC]]
Click [Transfer]
DeviceNet NT Link
Start-Up Start-Up
Controller Link Start-Up
Controller Link Start-Up
Remove Controller Link communications errors and establish communications.
Remove Controller Link communications errors and establish communications.
⇒ ON state of Controller Link Master Unit's INS LED
⇒ ON state of Controller Link Master Unit's INS LED
⇒ Check Controller Link configuration through CX-Integrator.
⇒ Check Controller Link configuration through CX-Integrator.
(1) Connect to PLC online, then connect to Controller Link Unit through the online connection
information window.
(2) Next, upload the Controller Link network configuration information.
Controller
CompoWay
Link
/F Start-Up
Start-Up
Saving Equipment
System Disass'y /
Config. Reass'y Verification
System Controller
Config. Link
Diagnosis
