3 PRODUCT DESCRIPTION

3.1

INTENDED USE

The RFID modules of the TWN4 MultiTech Nano family allow users to read and write RFID media in
the 125 kHz (LF) and 13.56 MHz (HF) frequency bands for identification purposes. In addition, some
devices also support the BLE (2.4 GHz) technology. The modules are intended to be integrated into a
host device. All devices must be used in environmental conditions according to the respective
product data sheets and installation instructions related to the products.
Any use other than the intended use described in this section, as well as any failure to comply with
the safety information given in this document, is considered improper use. ELATEC excludes any
liability in case of improper use or faulty product installation.
3.2

PRODUCT FAMILY

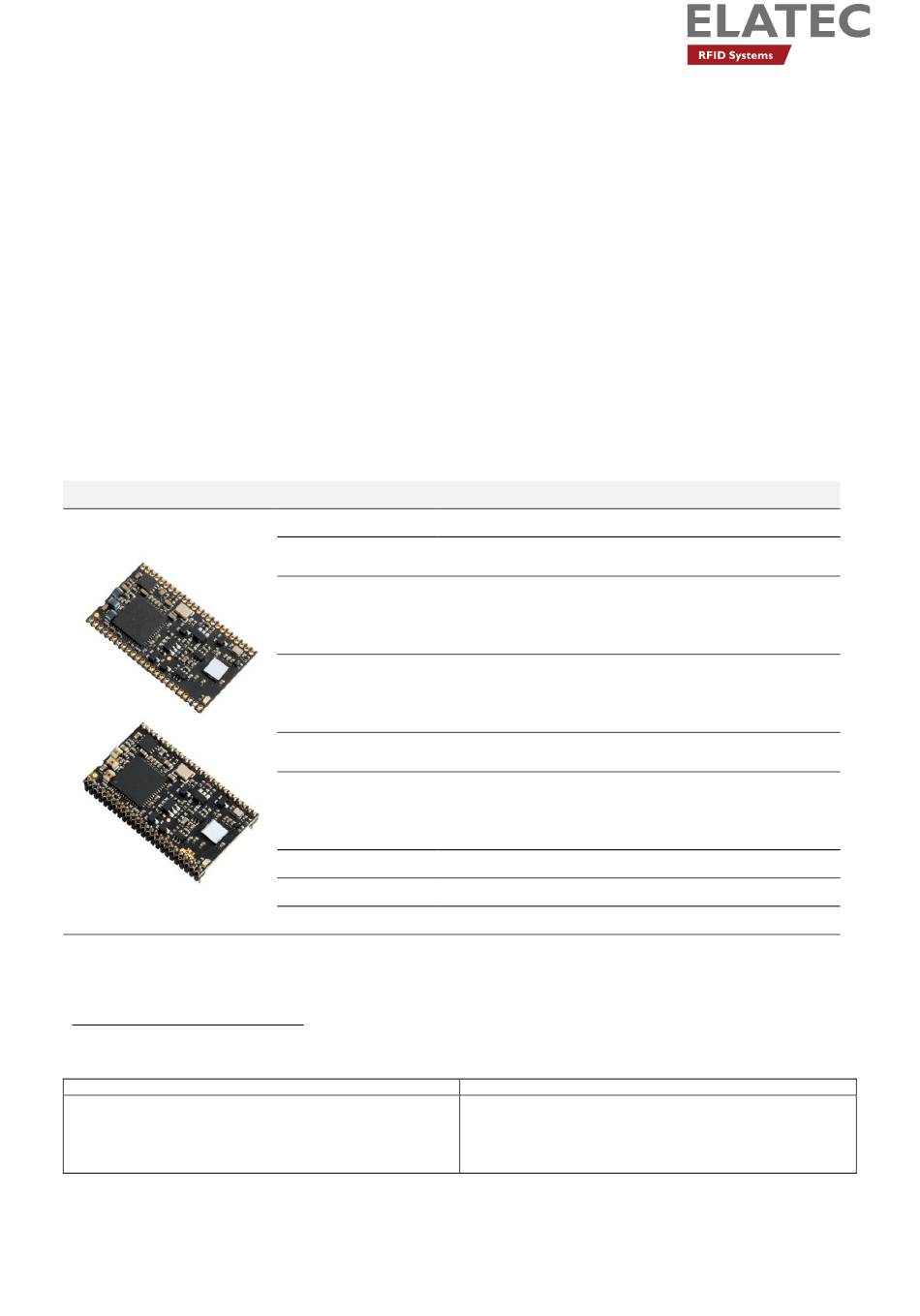

The TWN4 MultiTech Nano family contains the following RFID modules:
TWN4 MultiTech Nano LEGIC 42 M
1 The RFID modules of the TWN4 MultiTech Nano family have been tested with an external printed circuit board equipped with
the following antennas:
HF antenna (13.56 MHz)
Outer dimensions: 32 x 29.4 mm / 1.26 x 1.16 inch
Number of turns: 4
Inductance: 1.0 µH ± 20%
PCB trace width: 0.6 mm / 0.02 inch
Please note that the use of an RFID module of the TWN4 MultiTech Nano family with other antennas than the ones described
above is not part of the approvals granted to the modules. In case the RFID modules are used with other antennas, a separate
approval, additional testing or new authorization for a use with these specific antennas is required.
© 2024 – ELATEC GmbH – TWN4 MultiTech Nano family – user manual – DocRev01 – EN – 05/2024
Frequencies 125 kHz (LF) / 13.56 MHz (HF)
Externally, 50 Ohm for 13.56 MHz – 490 μH ± 5%
Antenna 1
for 125 kHz
C0 version: approx. 31.00 x 17.80 x 2.70 mm / 1.22
Dimensions x 0.70 x 0.11 inch
(L x W x H) C1 version: approx. 31.00 x 17.80 x 8.11 mm / 1.22
x 0.70 x 0.32 inch
Direct power supply: 3.3 V ± 5%
On-board voltage regulator: 4.3 V – 5.5 V
Power
ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Current
RF field on: 120 mA typically / Sleep: 500 µA typ.
consumption
Operating:
Temperature -25 °C up to +80 °C / -13 °F up to +176 °F
ranges Storage:
-40 °C up to +85 °C / -40 °F up to +185 °F
Relative humidity 5% to 95% non-condensing
MTBF 500,000 hours
Weight Approx. 7 g / 0.25 oz
LF antenna (125 kHz)
Outer diameter: max. 16.3 mm / 0.64 inch
Number of turns: 144
Inductance: 490 µH ± 5%
Wire diameter: 0.10 mm / 0.0039 inch
Lead free, coil fixed by using backed wire
