Spitzer LIGHTING LHB3 Series Manual

Linear high bay

Advertisement

LHB3
Linear High Bay
KEY TECHNICAL DATA
INPUT VOLTAGE
120-277V
CONTROL
0-10V 10%
WORKING TEMP.
-4°F ~ 113°F
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to
power off. The electrical system you want to connect the device to must be grounded.
Read the instructions before using or powering this device. The safety instructions
must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make
sure that the current and voltage are compatible with this device. We highly recommend
that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by
any means for the use or misuse of the following information. We are NOT responsible in
whole or part for any harm or damage that may or may not be caused. We reserve the right
to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations
in equipment, nor do they provide every possible contingency to be met. Turn off / unplug
power when installing or service device.
702 Interchange Blvd, Newark DE 19711

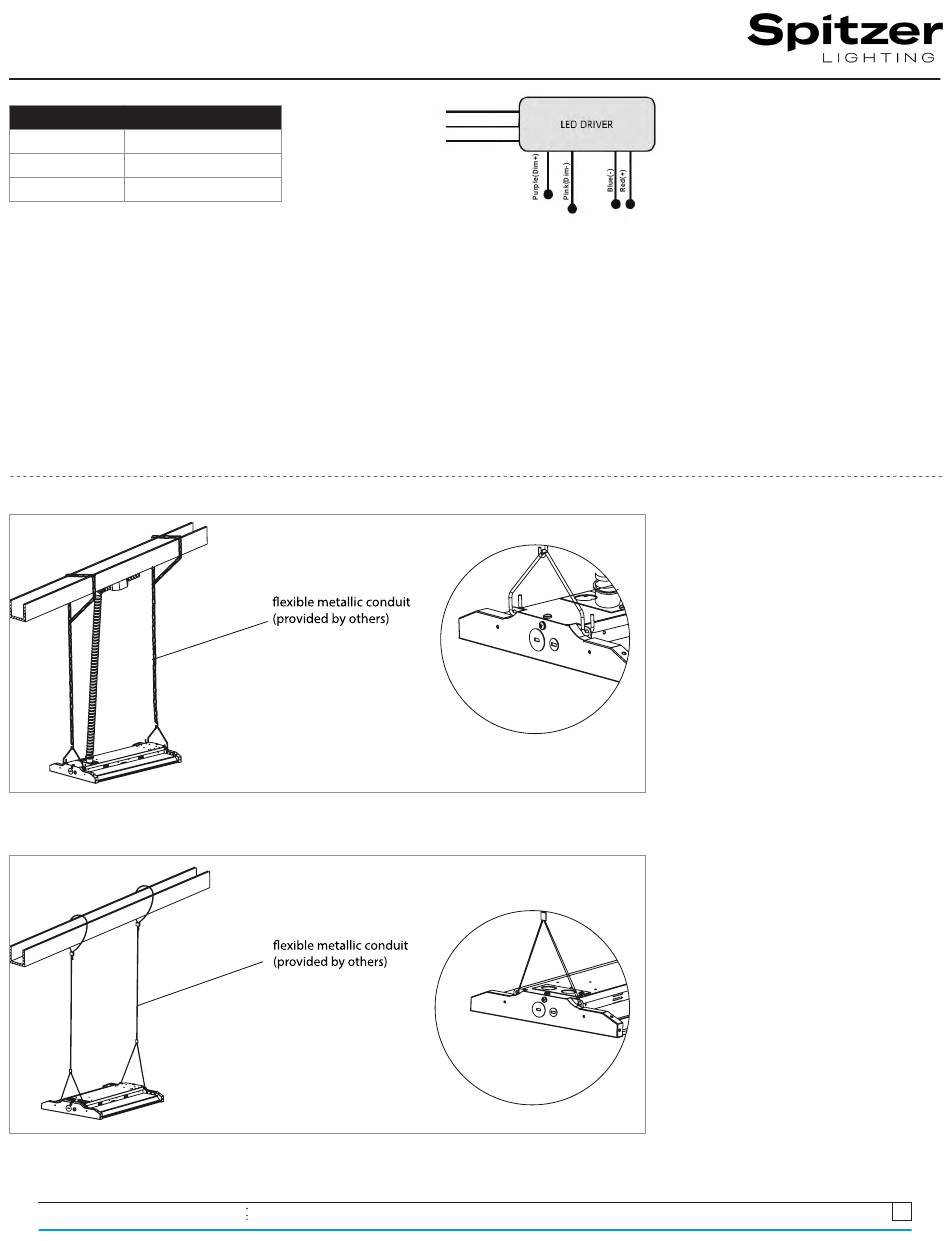

CHAIN SUSPENDING MOUNT
(DEFAULT SETTING)
CABLE SUSPENDING MOUNT
(DEFAULT SETTING)
www.spitzerlighting.com
Black (Live)
White (Neutral)
120-277V
Green (Grd)
Dimming wire to
0-10v IEC
compliant control
PRE. INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts are present.
Compare parts with package contents list and diagram on previous page. If any part is missing or
damaged, do not attempt to assemble, install or operate the product. Contact customer service for
replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers, electrical tape,
wire cutters, safety glasses, ladder, wire stripper.
WARNINGS
• Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply
• Turn off the power when you perform any maintenance
• Verify that supply voltage is correct by comparing it with the luminaire label information
• All wiring connections should be capped with UL approved wire connectors
Installation Manual
GENERAL WIRING
DIAGRAM
Lead wire to
LED load
INSTALLATION
→Before beginning installation, turn off the circuit breaker
Remove the LED fixture from packaging and inspect for any
damages. Handle LED fixture with care.
TO INSTALL WITH CHAIN MOUNT: Install the chain into the
provided wire hanger. Secure the other end of the chain to
a structure using hardware rated for the load. Install the wire
hanger into the slots on the top of the LED luminaire end
piece. Make sure the wiring hangers are fully engaged into the
slots on the top channel.
Connect the LED high bay wiring to incoming power lines,refer
to the General Wiring Diagram. Use only UL listed wire.
NOTE: The purple and pink wires inside the driver
compartment are 0-10V (Iow voltage) dimming wires. Connect
to low voltage wiring only.
Clean all residues and fingerprints from the LED luminaire.
Double check all hanging hardware before moving onto the
next installation.
1
