ICP DAS USA NSM-210C User Manual

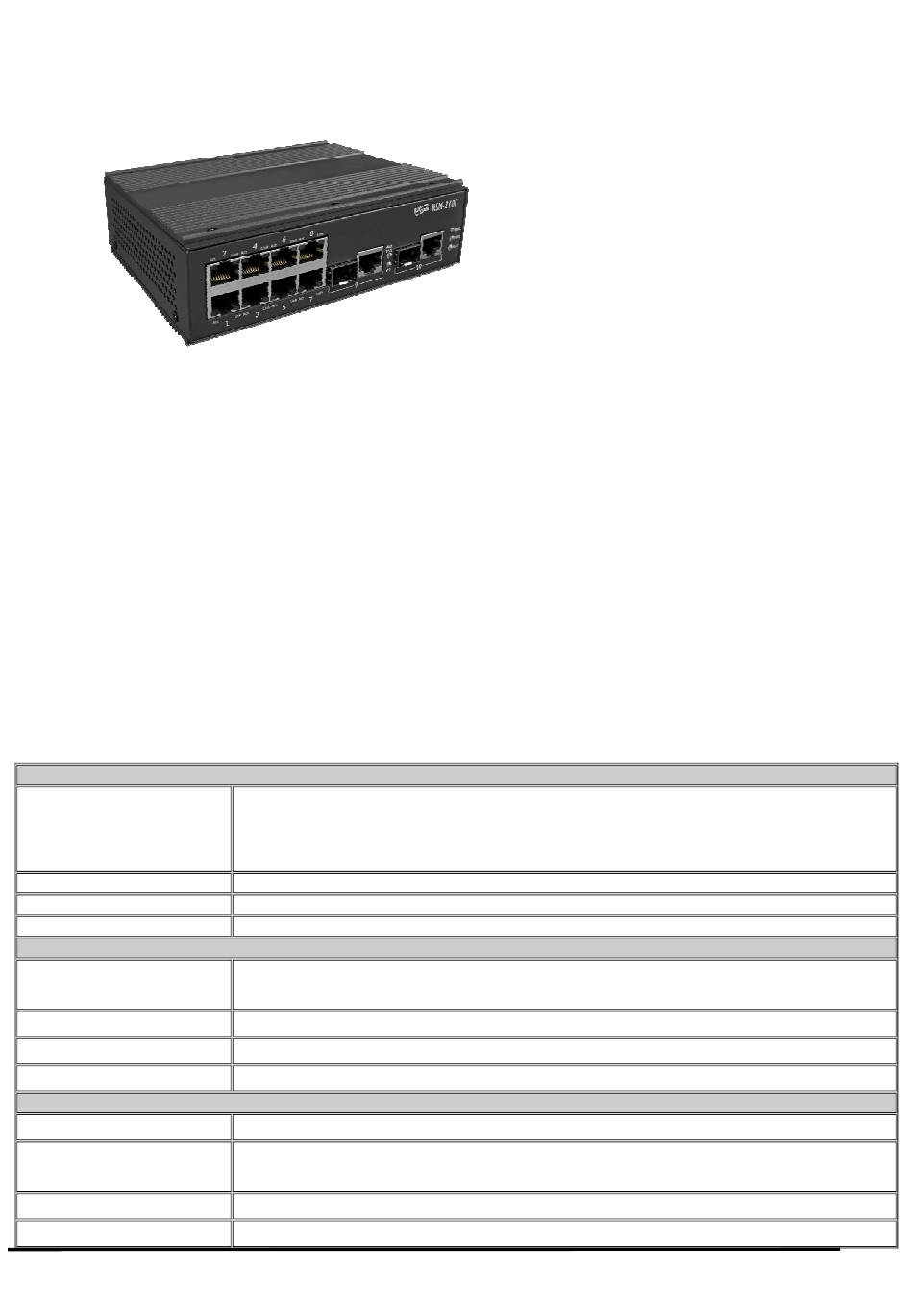

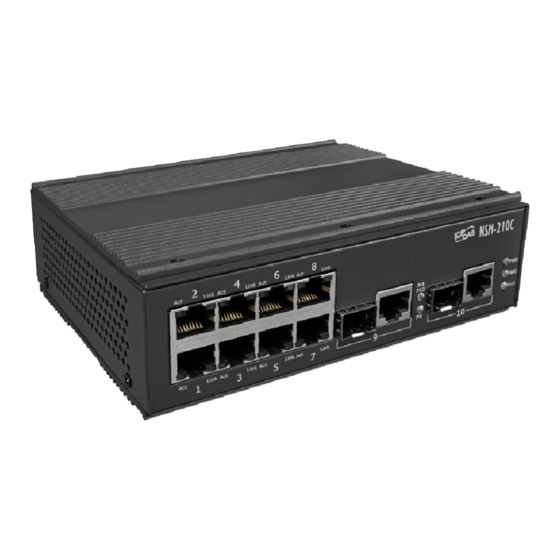

8+2G Combo Port Gigabit Unmanaged Industrial Ethernet Switch
Introduction:
The NSM-210C is 8 Port 10/100 Base copper and 2 Gigabit fiber optic/copper combo port Ethernet Switch,
Supports Auto Negotiation 、 Auto MDI/MDI-X 、high-speed(100 Mbps) and high-distance transmissions . Apart
from this, NSM-210C supports dual power and provides a wide +12 VDC ~ +48 VDC power range to fit all the
common power standards found in industrial automation, without external power converters.
Features:
•
Up to 2 Gigabit uplinks for high bandwidth data aggregation SFP socket for Easy and Flexible Fiber Expansion
•
Supports Auto Negotiation and Auto MDI/MDI-X
•
Supports Dual +12 ~ 48 VDC power input and 1 relay output
•
Supports operating temperatures from –25 ~ +75°C
•
DIN-Rail, Wall Mounting (optional)
Specifications:
Technology
Standards
MAC Addresses
Frame buffer memory
Flow Control
Interface
RJ-45 Ports
Fiber Ports
LED Indicators
Ethernet Isolation
Power Input
Redundant Input Range
Power Consumption
Alarm Contact
Protection
NSM-210C User's Manual (Version 1.00, Apr/2018) --------------- 1
NSM-210C User's Manual
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
8K
1 Mbit
IEEE802.3x flow control, back pressure flow control
8x 10/100BaseT(X) , 2x 10/100/1000 BaseT(X) (Combo SFP)
Auto negotiation speed, full/half duplex mode, and auto MDI/MDI-X connection
2x 1000Base SFP slot
PWR1, PWR2, FAULT, SFP & Gigabit Act, 8-Port 10/100 Link and Act
1500 Vrms 1 minute
+12 VDC ~ +48 VDC (Non-isolation)
0.15A @ 24VDC idle without loading ;
0.25A @ 24VDC with full loading
One relay output with current carrying capacity of 1A @ 30 VDC
Power reverse polarity protection
