NS-205A
5-Port Industrial 10/100 Mbps Ethernet Switch
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/ns_205a
1. Introduction
The NS-205A has 5 Ethernet Switching ports that support 10/100Base-T(X),
with a 10/100M auto-negotiation feature and auto MDI/MDI-X function. It
can connect 5 workstations and automatically switches the transmission
speed (10 Mbps or 100 Mbps) for corresponding connections. The flow
control mechanism is also negotiated. LEDs embedded in RJ-45 jacks
make for easy monitoring. Port connectors are shielded RJ-45. A power
source for +12 ~ +56VDC is required.

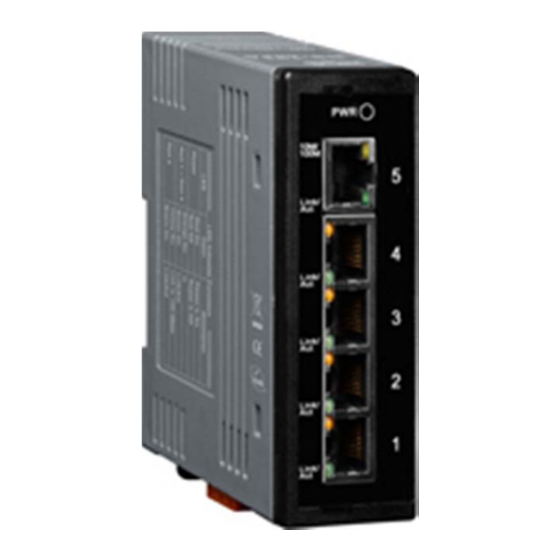

Figure 1‐1 NS‐205A
5‐Port Switch
NS‐205A
‐ QuickStart (Mar/2019)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
Advertisement
Table of Contents
Related Manuals for ICP DAS USA NS-205A
Summary of Contents for ICP DAS USA NS-205A
- Page 1 Product Website: https://www.icpdas-usa.com/ns_205a 1. Introduction The NS-205A has 5 Ethernet Switching ports that support 10/100Base-T(X), with a 10/100M auto-negotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The flow control mechanism is also negotiated.
- Page 2 crossover. Table 1 shows the LED indicator functions. The module includes an internal. 5‐Port Switch NS‐205A ‐ QuickStart (Mar/2019) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 2 ...
- Page 3 The Input voltage range is +12~+56VDC. External power supply is connected using the removable terminal block as shown below: 5‐Port Switch NS‐205A ‐ QuickStart (Mar/2019) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 3 ...
