NS-208R
Industrial 8-Port 10/100 Mbps Ethernet Switch
with Conformal Coating
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/ns_208r.html
1. Introduction
The NS-208R has 8 Ethernet Switching ports that support 10/100Base-T(X),
with a 10/100M auto-negotiation feature and auto MDI/MDI-X function. It
can connect 8 workstations and automatically switches the transmission
speed (10 Mbps or 100 Mbps) for corresponding connections. The flow
control mechanism is also negotiated. NS-208R is designed especially for
mission critical and harsh environmental applications since it comes ready
with conformal coating

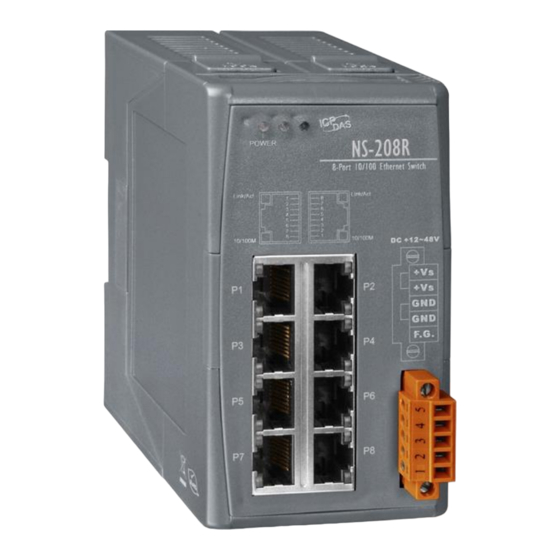

Figure 1-1 NS-208R
-Port Switch
NS-208R 8
- QuickStart (Feb/2016)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
