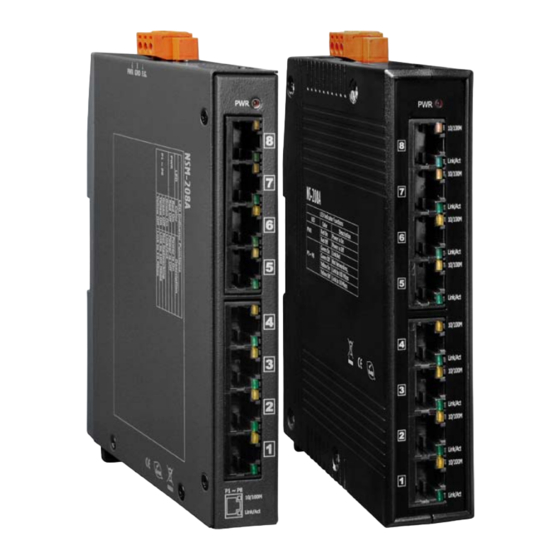

ICP DAS USA NS-208A User Manual

Unmanaged 8-Port Industrial 10/100 Mbps Ethernet Switch

Features

Automatic MDI/MDI-X crossover for plug-and-play
Each port supports both 10/100Mbps speed auto negotiation
Store-and-forward architecture
Full duplex IEEE 802.3x and half duplex backpressure flow control
Operating temperatures, –40 ~ +75°C
DIN-Rail

Specifications

Models
Technology
Standards
Processing Type
MAC Addresses
Memory Bandwidth
Frame buffer memory
Flow Control
Interface
RJ45 ports
LED Indicators
Ethernet Isolation
Power Input
Input Voltage Range
Power consumption
Protection
Connection
Mechanical
Casing
Dimensions (W x L x H)
Installation
Environmental
Operating Temperature
Storage Temperature
Ambient Relative Humidity
NS-208A/NSM-208A
NS-208A
IEEE 802.3, 802.3u, 802.3x
Store & forward, wire speed switching
2048
2 Gbps
512 Kbit
IEEE802.3x flow control, back pressure flow control
10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X
connection
Power, Link/Act , 10/100M
1500 Vrms 1 minute
+12 ~ +48 VDC
0.2 A@ 24 VDC
Power reverse polarity protection
3-Pin Removable Terminal Block
Plastic (Flammability UL 94V-0)
31 mm x 157 mm x 113 mm
DIN-Rail
-40 °C ~ +75 °C
-40 °C ~ +85 °C
10% ~ 90% RH, non-condensing
NS-208A/NSM-208A User's Manual (Version 1.0, Aug/2011) --------------- 1

Introduction

The NS-208A/NSM-208A has 8 Ethernet ports that
support 10/100 Base-TX, with a 10/100M auto
negotiation feature and auto MDI/MDI-X function.
All Ethernet ports have memory buffers that
support the store-and-forward mechanism, which
assures that data can be transmitted properly. The
NS-208A/NSM-208A supports advanced network
standards to optimize
reduce maintenance costs, and secure network
safety.
The flow control mechanism is also negotiated.
There is link/data rate LEDs for each port to aid
troubleshooting. Port connectors are shielded RJ-
45.
NSM-208A
Metal (IP30 Protection)
25 mm x 168 mm x 119 mm
network performance,
